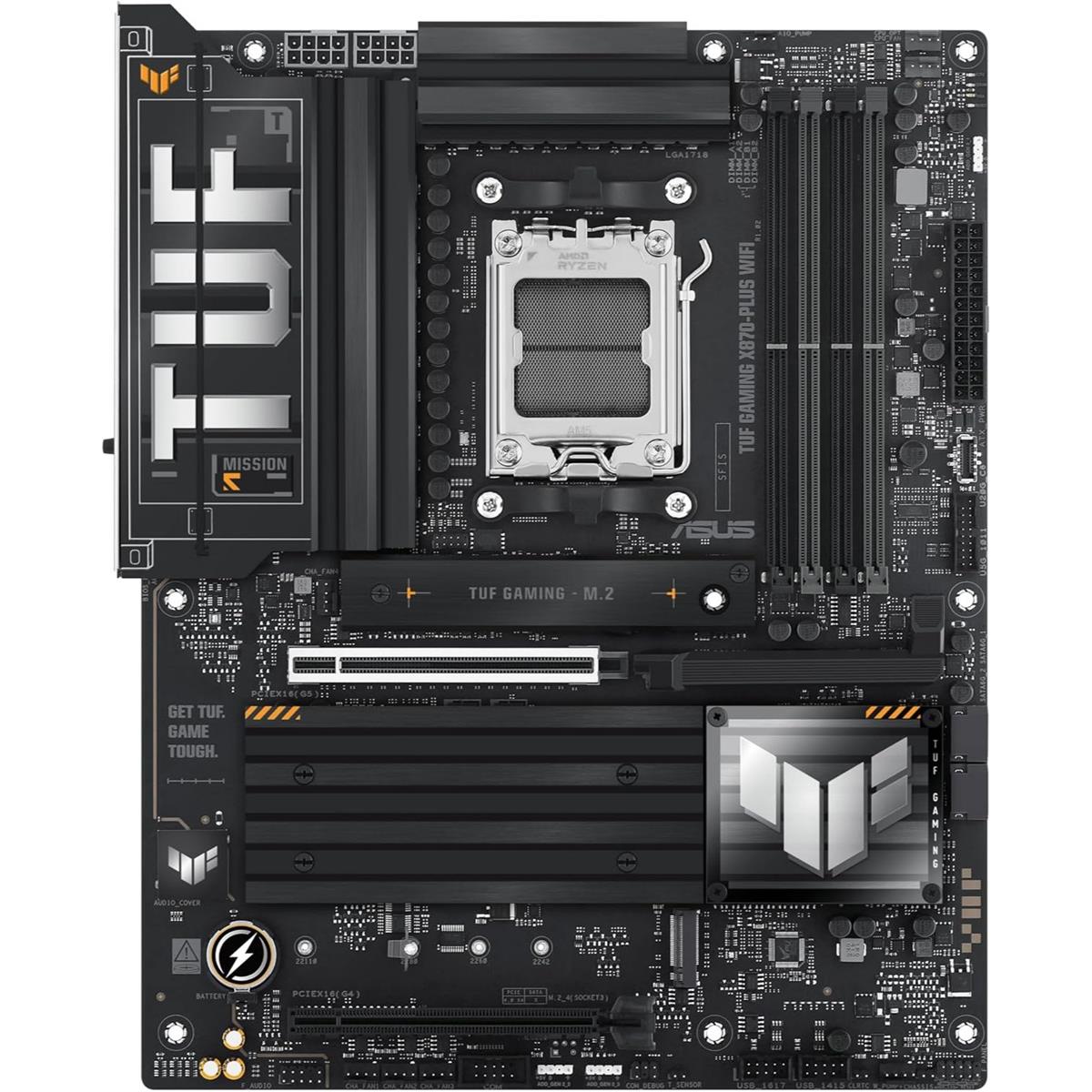

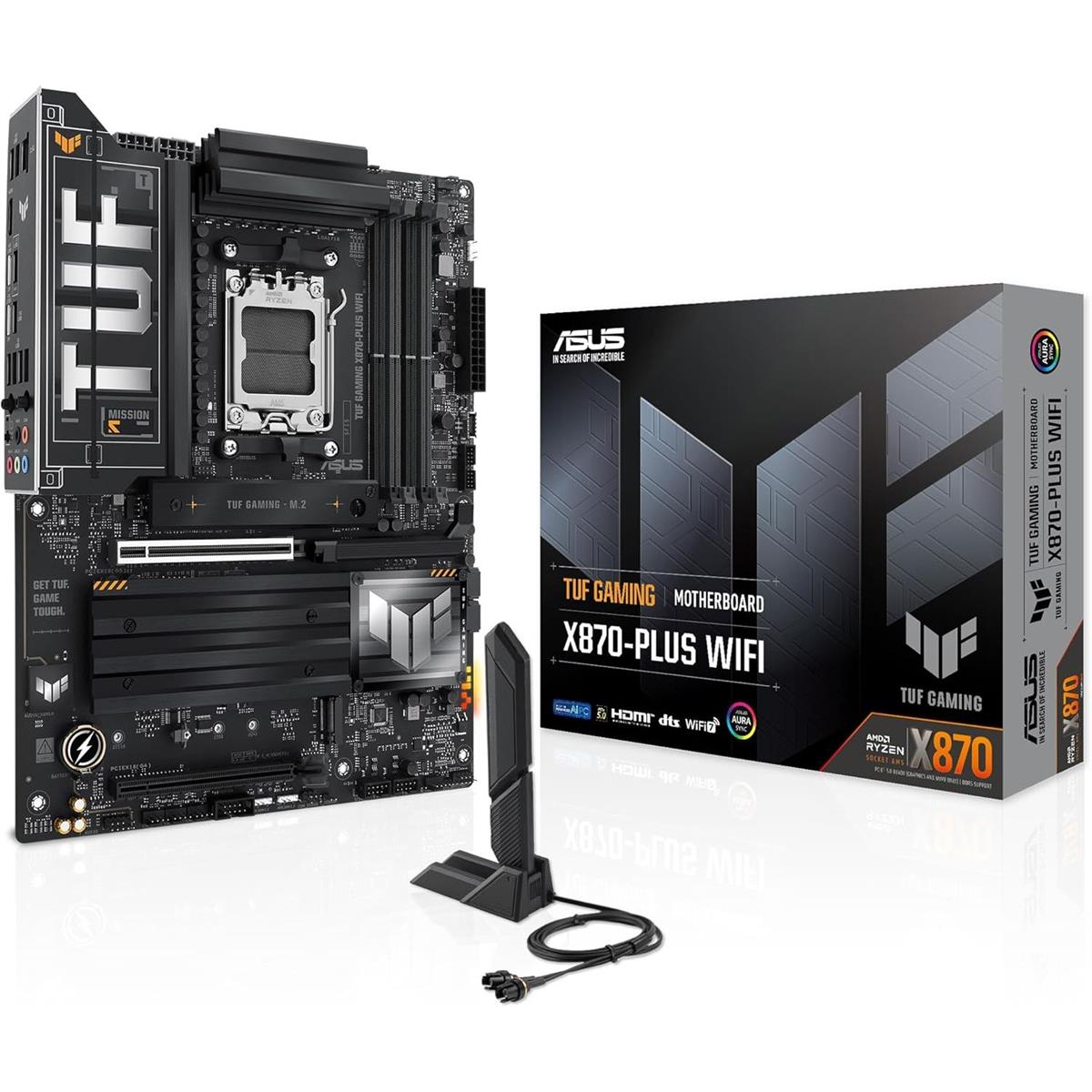

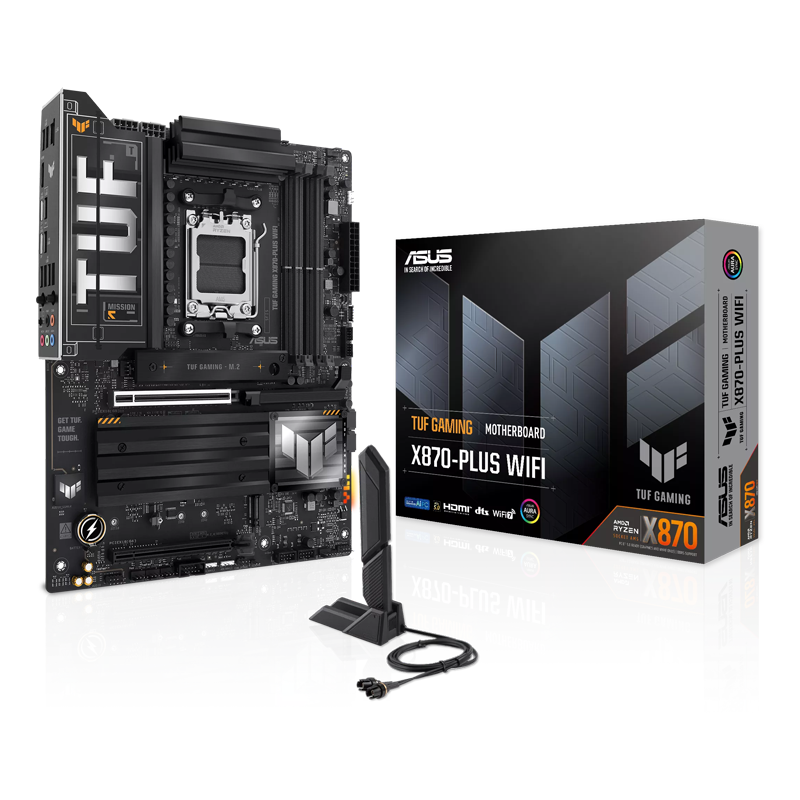

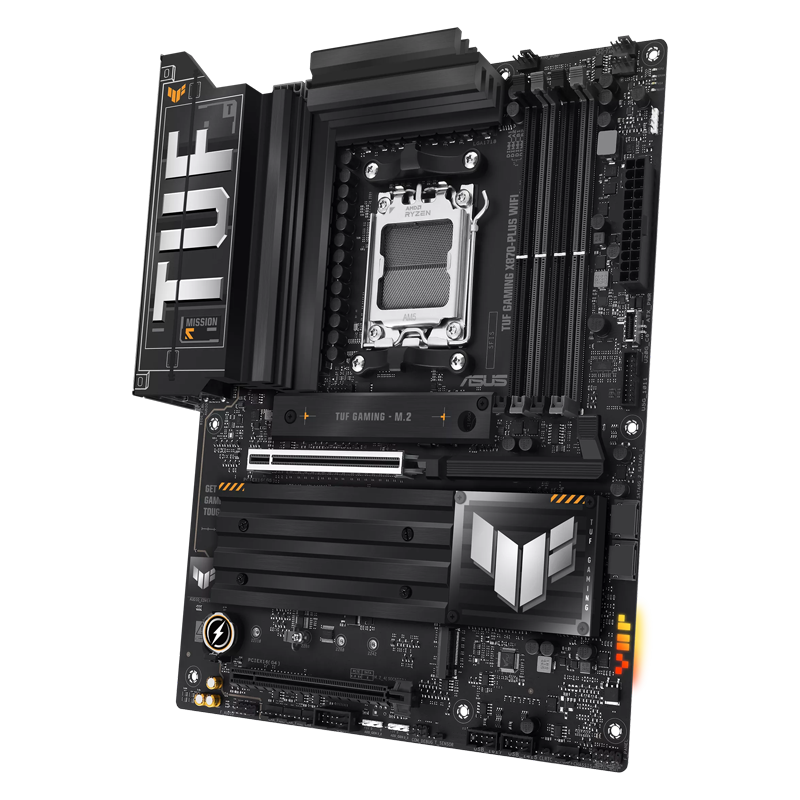

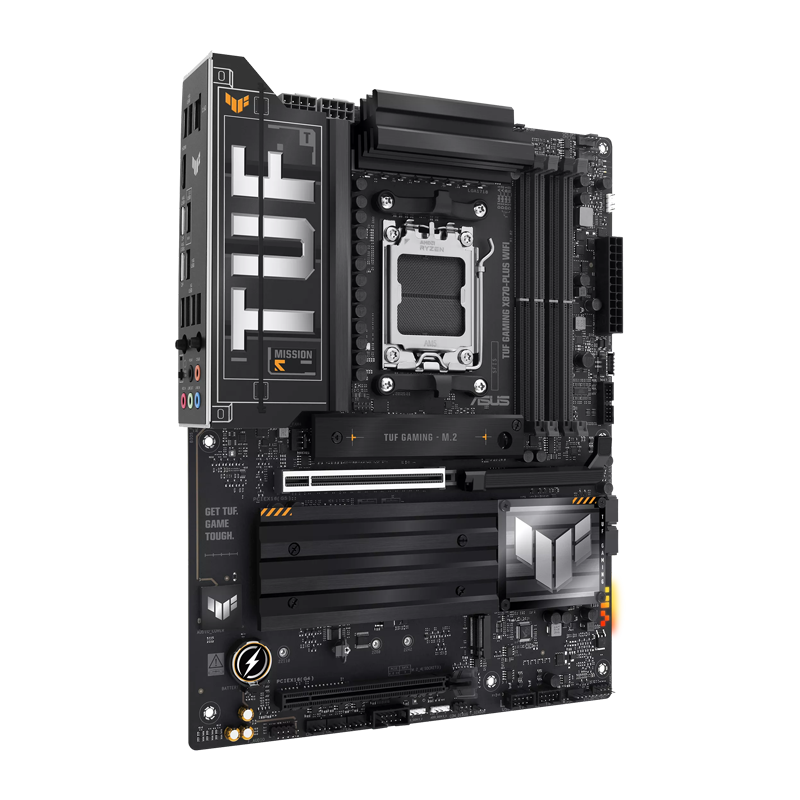

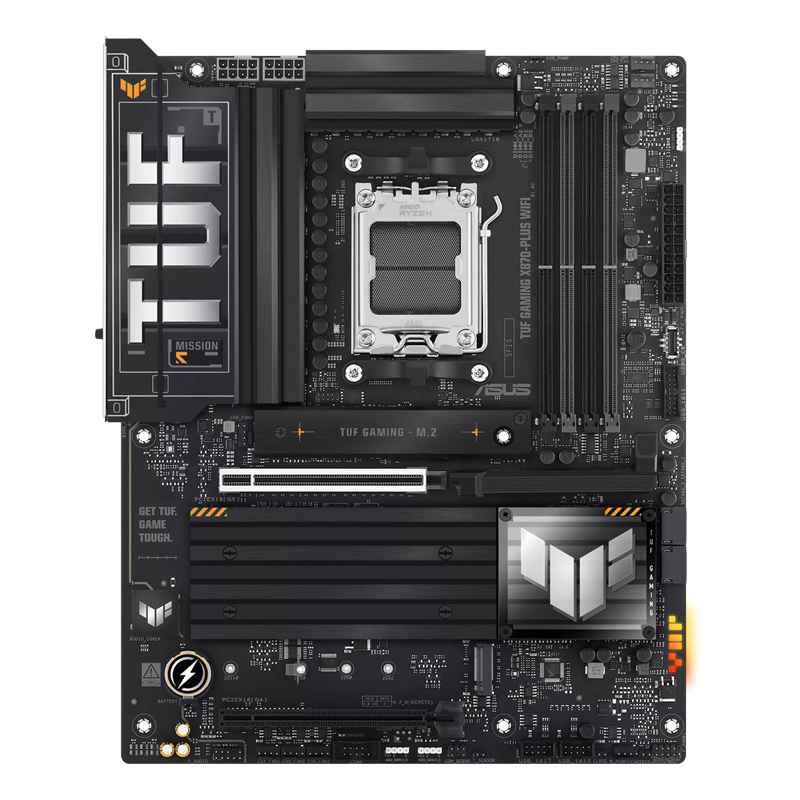

ASUS TUF GAMING X870-PLUS WIFI AM5 Motherboard
Original price was: ₨ 104,999.₨ 102,000Current price is: ₨ 102,000.
- TUF military-grade X870 ATX motherboard with dual USB4 40Gbps Type-C®, supporting Ryzen 9000/8000/7000 on AM5 with DDR5 up to 8000+ MT/s
- PCIe 5.0 x16 slot and dual PCIe 5.0 M.2 for ultimate GPU and NVMe performance, plus two additional PCIe 4.0 M.2 slots and 2 SATA 6Gb/s
- WiFi 7 with Bluetooth 5.4, Realtek 2.5Gb Ethernet, front USB 20Gbps Type-C® with 30W PD, and comprehensive TUF protection features
- Premium ALC1220P audio with 120dB SNR, DTS Audio Processing, AI Cooling II, PCIe Slot Q-Release, and 8 fan/pump headers
| Overview | |
| Brand | ASUS TUF GAMING |
| Model | TUF GAMING X870-PLUS WIFI |
| Chipset | AMD X870 |
| Socket | AMD AM5 |
| CPU Support | Ryzen 9000, 8000, 7000 Series |
| Memory Type | DDR5 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 up to 8000+ MT/s (OC) |
| Memory Architecture | Dual Channel |
| EXPO/AEMP Support | Yes (AMD EXPO + ASUS AEMP) |
| Expansion & Storage | |

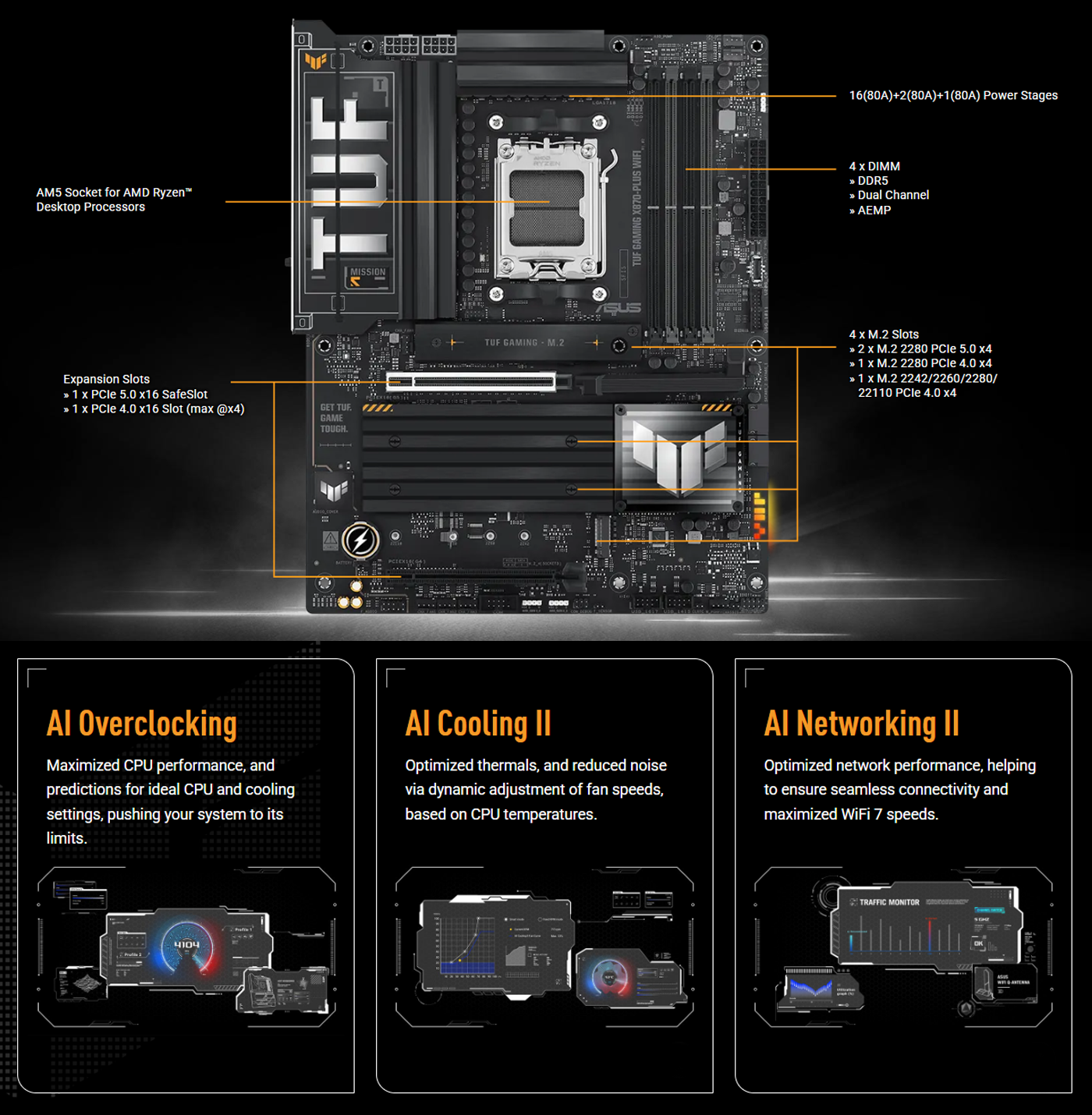

| PCIe Slots | 1 x PCIe 5.0 x16 (x16/x8), 1 x PCIe 4.0 x16 (x4) |
| M.2 Slots | 2 x PCIe 5.0 x4 (CPU), 2 x PCIe 4.0 x4 (X870) |
| SATA Ports | 2 x SATA 6Gb/s (RAID 0/1) |
| NVMe RAID | RAID 0/1/5/10 (RAID 5: Ryzen 9000 only) |
| Graphics & Audio | |
| Display Outputs | 1 x HDMI 2.1 (4K@60Hz), 2 x USB4 DP Alt (4K@60Hz) |
| Audio | Realtek ALC1220P 7.1 HD Audio, 120dB SNR, 32-Bit/192 kHz |
| Audio Software | DTS Audio Processing |
| Networking | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless | Wi-Fi 7 (802.11be) 2×2, 160MHz, up to 2.9Gbps |
| Bluetooth | Bluetooth 5.4 |

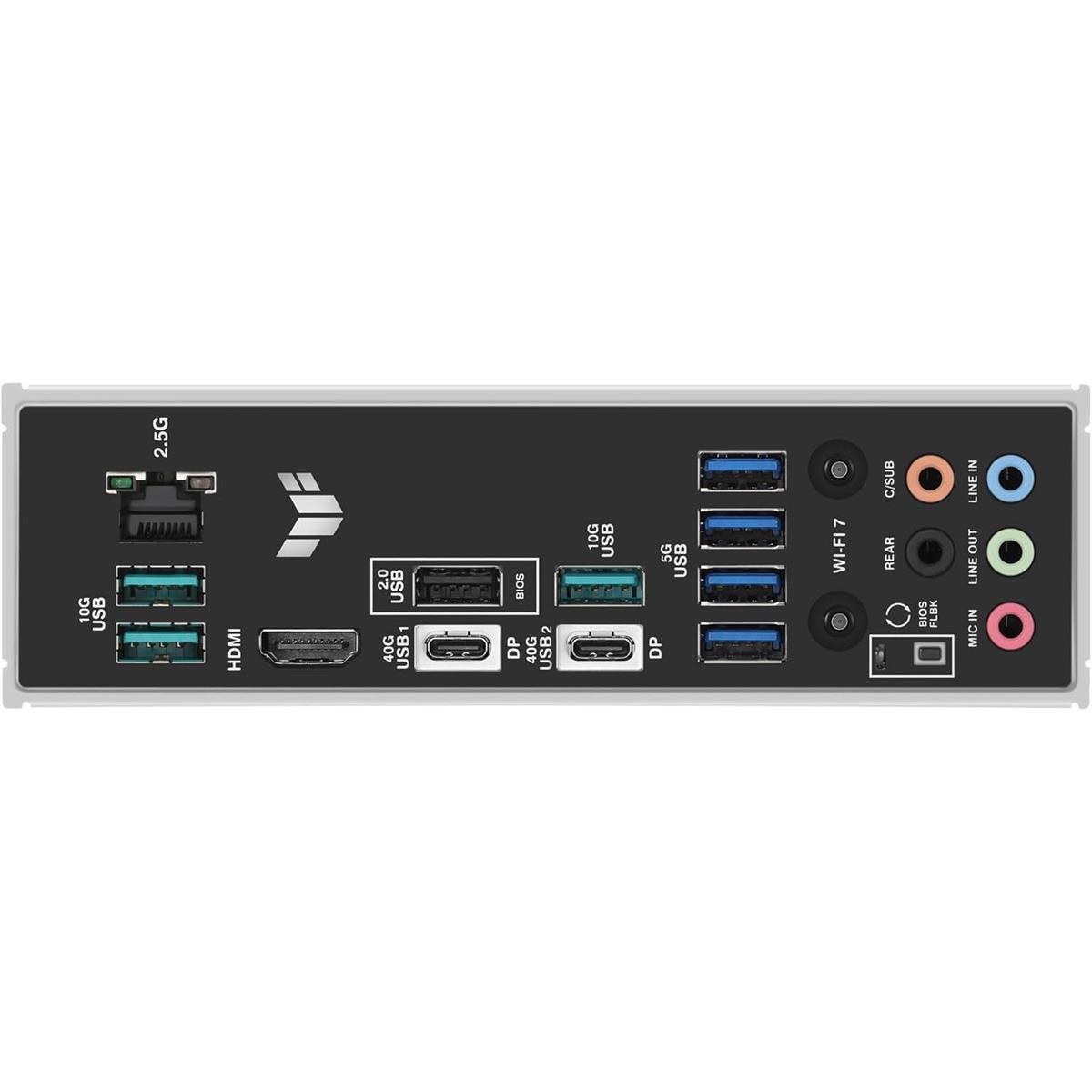

| Rear I/O | |
| USB Ports | 2 x USB4 40Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A |
| Audio Ports | 5 x Audio Jacks |
| Buttons | BIOS FlashBack™ Button |
| Internal I/O | |
| Fan/Pump Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan, 1 x W_PUMP+ |
| Power Connectors | 1 x 24-pin Main, 2 x 8-pin +12V CPU (ProCool) |
| Front USB | 1 x USB 20Gbps Type-C® (30W PD), 2 x USB 5Gbps (header), 4 x USB 2.0 (headers) |
| RGB Headers | 3 x Addressable Gen 2 |
| Special Headers | 1 x Thermal Sensor, 1 x Chassis Intrusion, 1 x COM Port, 1 x Clear CMOS |
| Features | |
| Protection | TUF PROTECTION (DIGI+ SPS, ESD Guards, TUF LANGuard, Overvoltage, SafeSlot, Stainless-Steel I/O) |
| ASUS Q-Design | M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (4-color), Q-Slot |

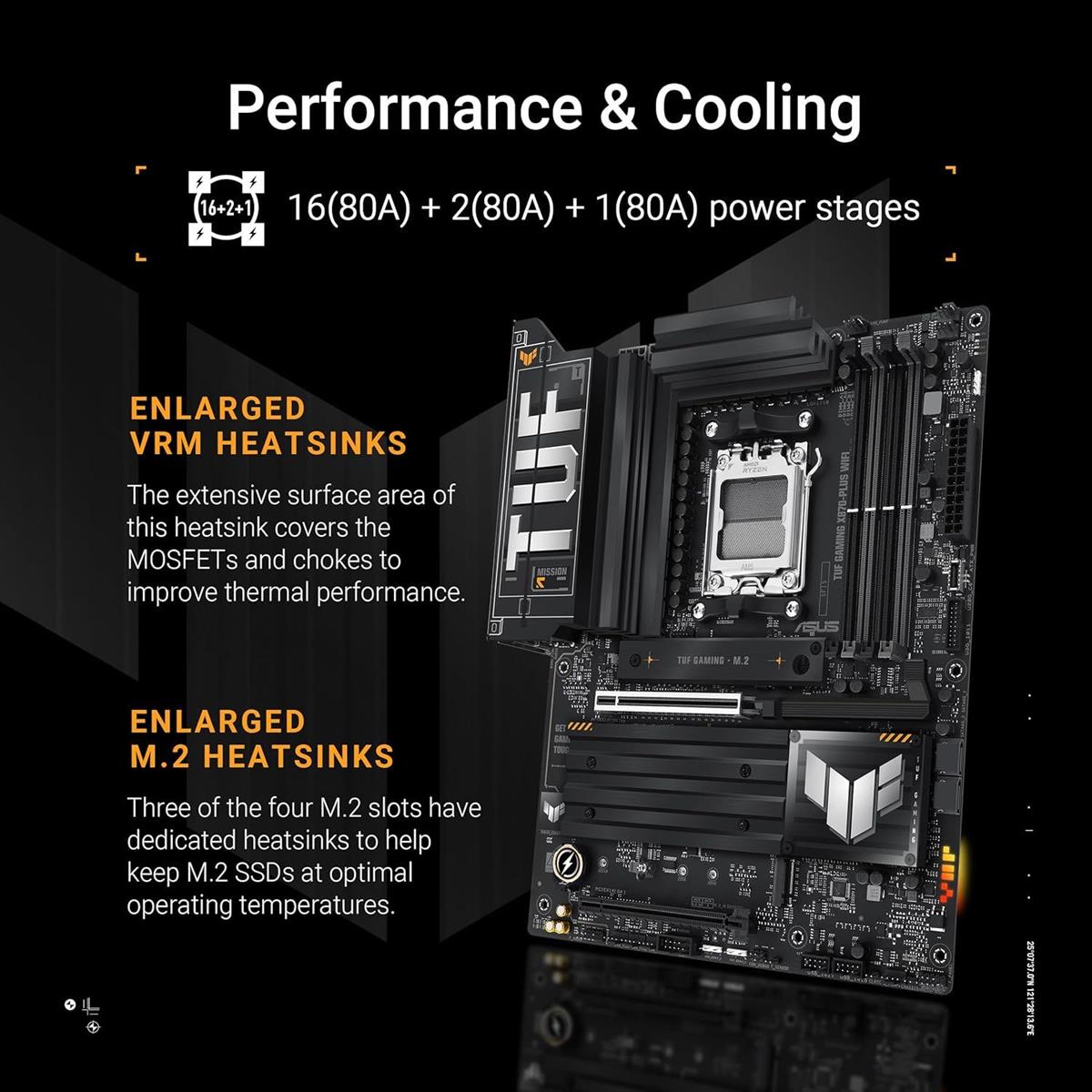

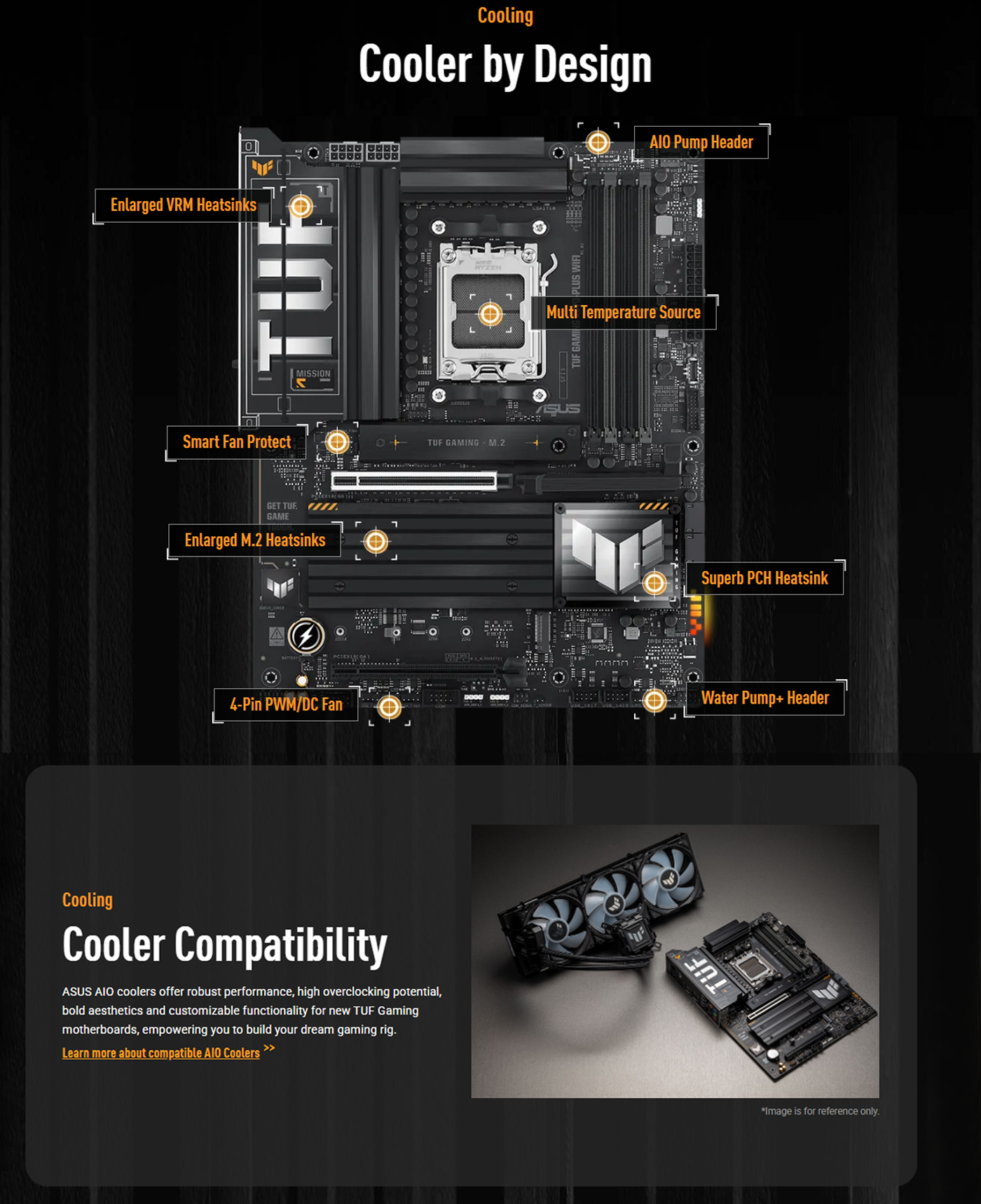

| Thermal Solution | M.2 Heatsinks, VRM Heatsinks, ProCool, Pre-Mounted I/O Shield, SafeDIMM |
| EZ DIY | BIOS FlashBack™ Button & LED |
| AI Features | AI Overclocking Guide, AI Cooling II, ASUS AI Advisor |
| Lighting Control | Aura Sync (3 x Addressable Gen 2), Aura Creator |
| Software Suite | Armoury Crate, Fan Xpert 4, TurboV Core, TUF GAMING CPU-Z, DTS Audio |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 |

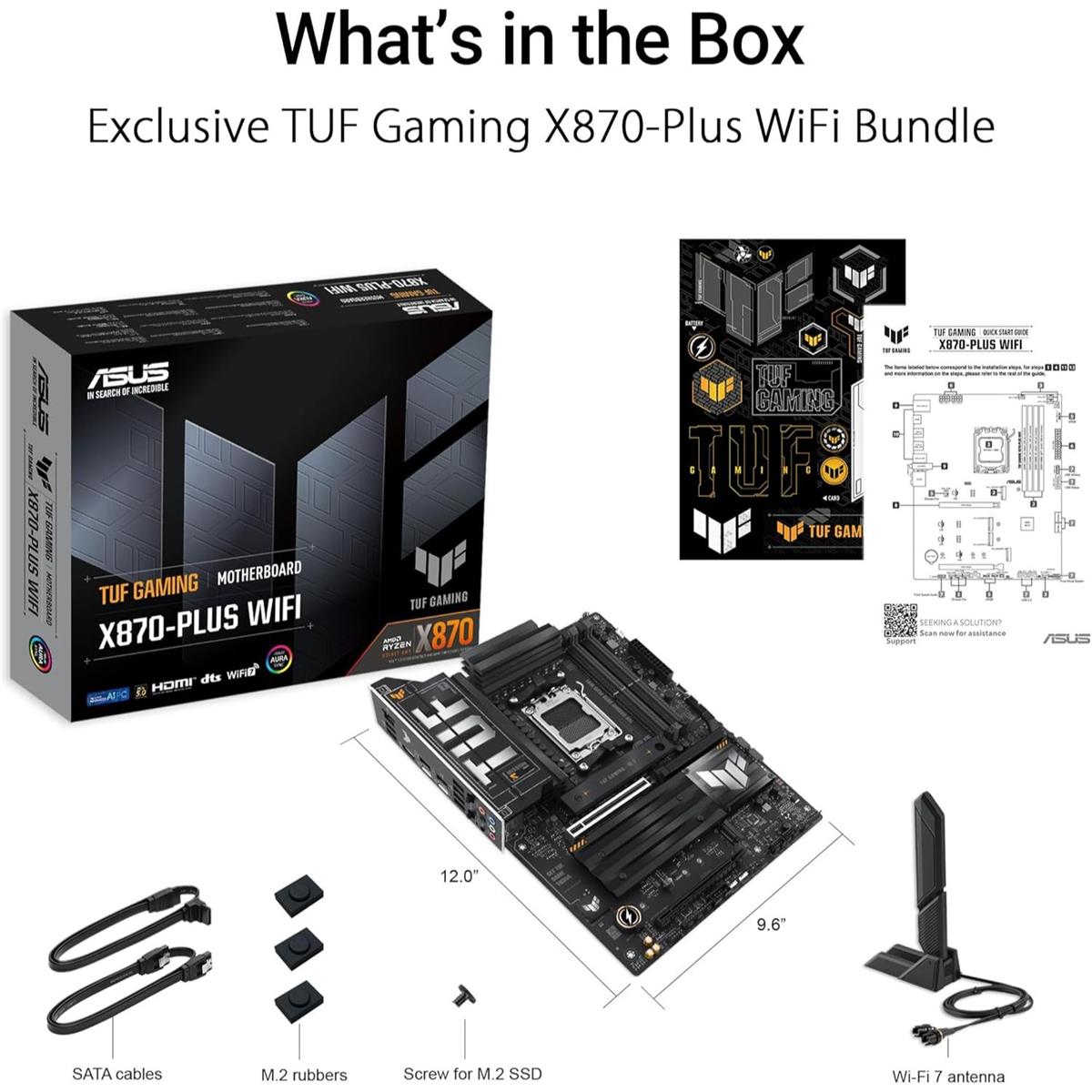

| In the Box | |
| Accessories | 2 x SATA 6Gb/s Cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 Rubber Packages, 1 x M.2 Screw Package, 1 x TUF GAMING Sticker, Quick Start Guide |
| Brand | Asus |
|---|
