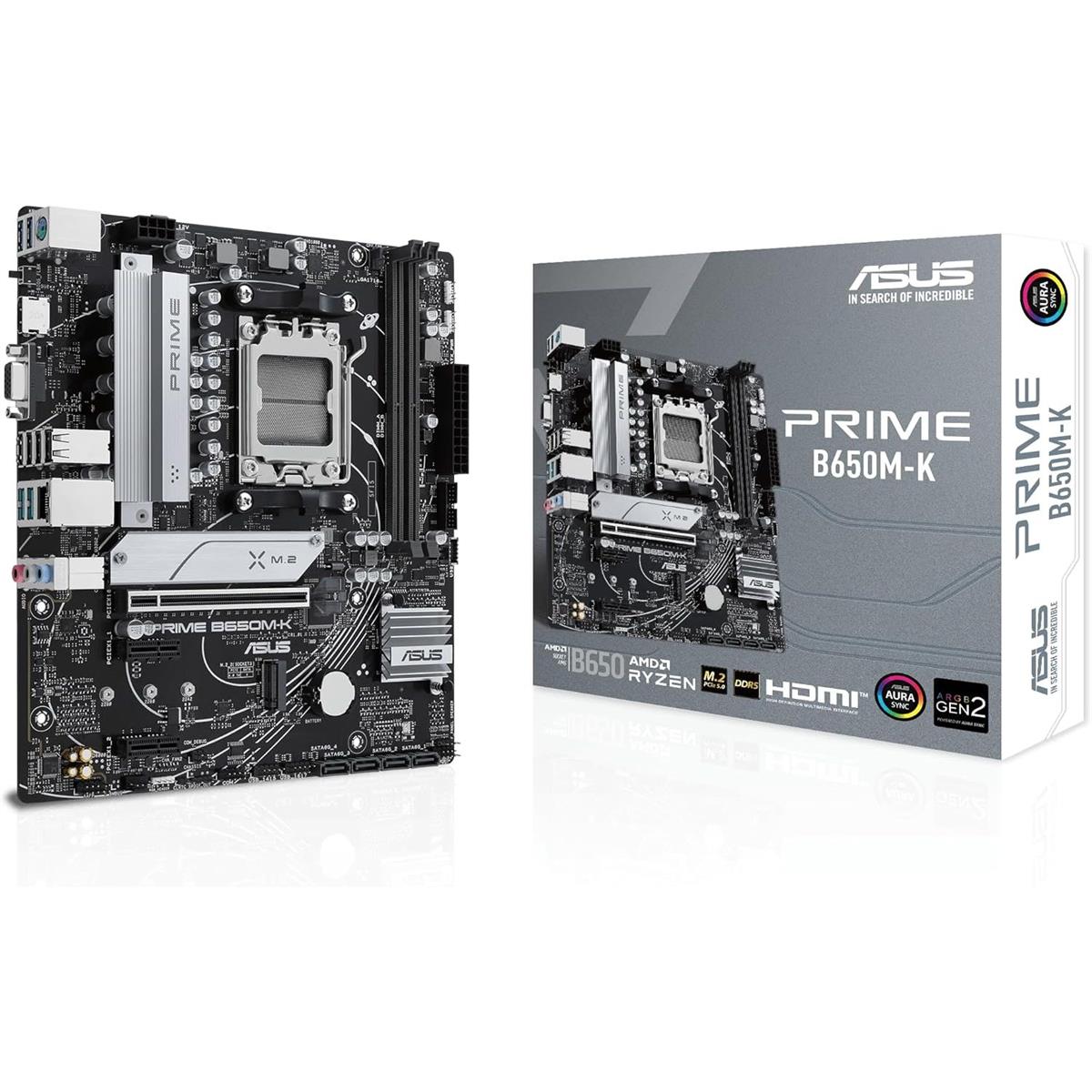

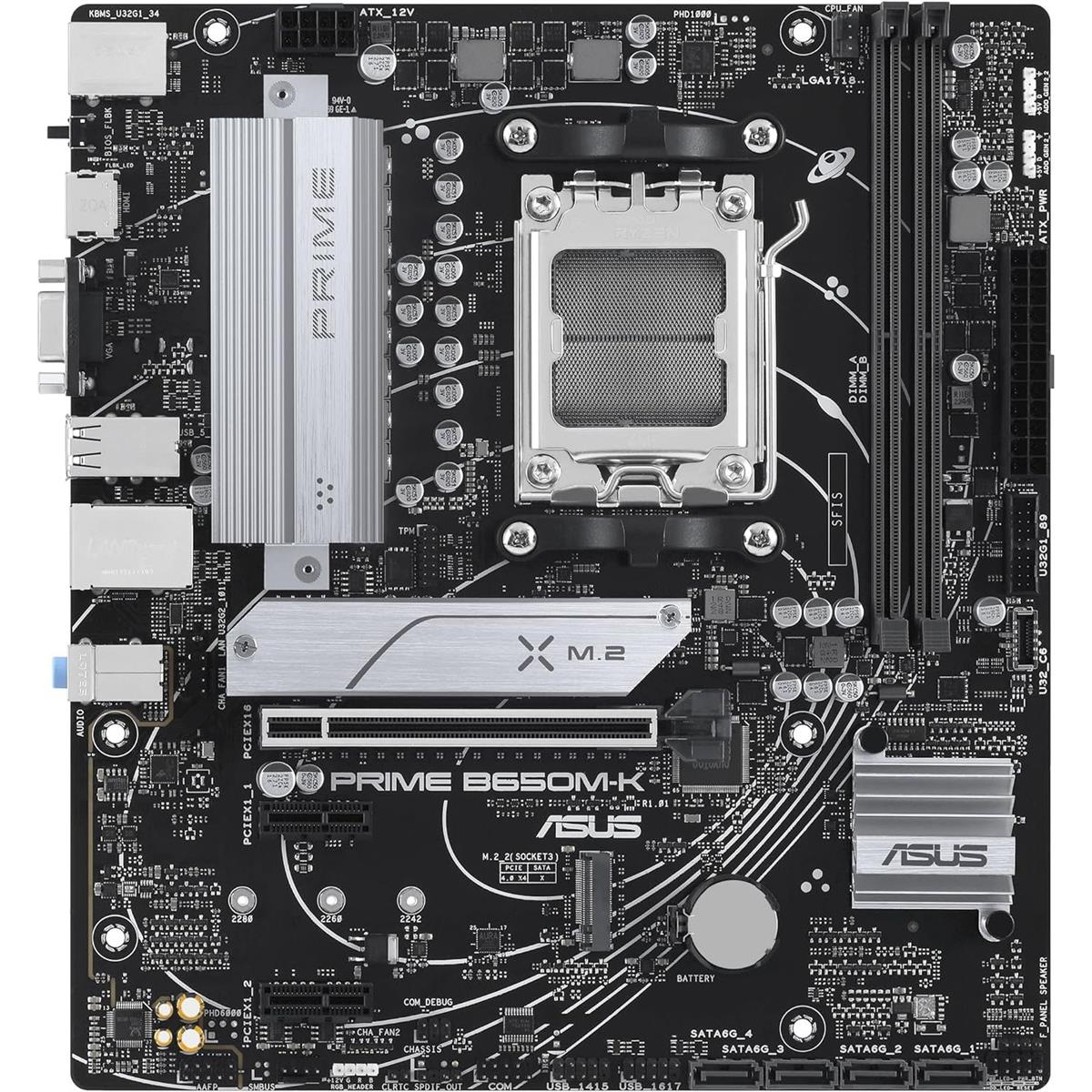

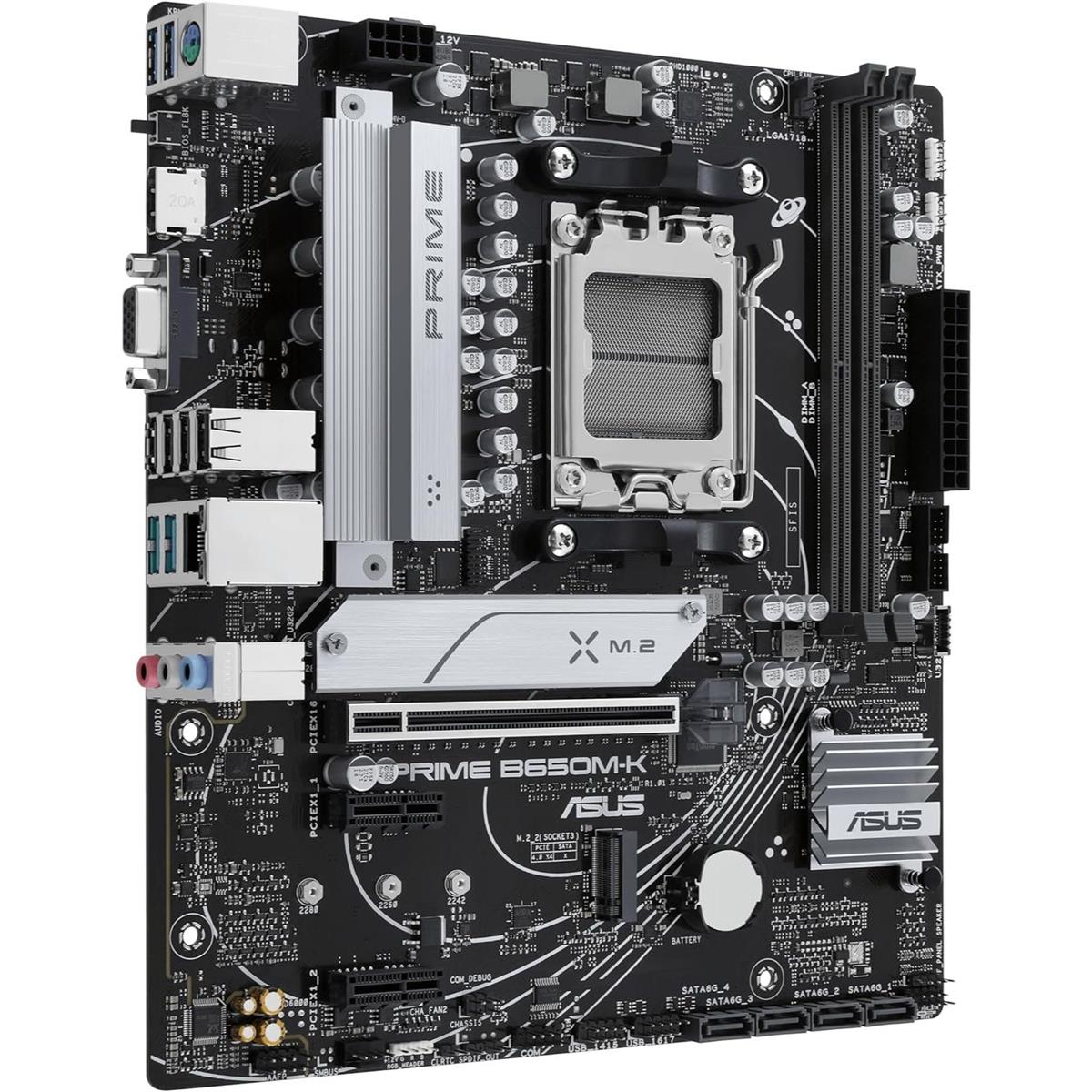

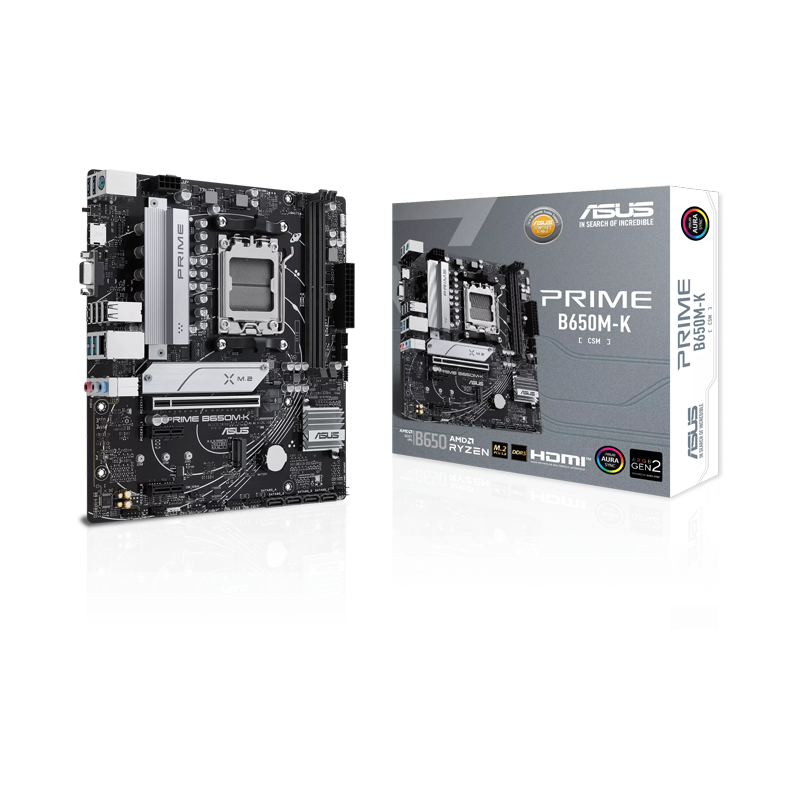

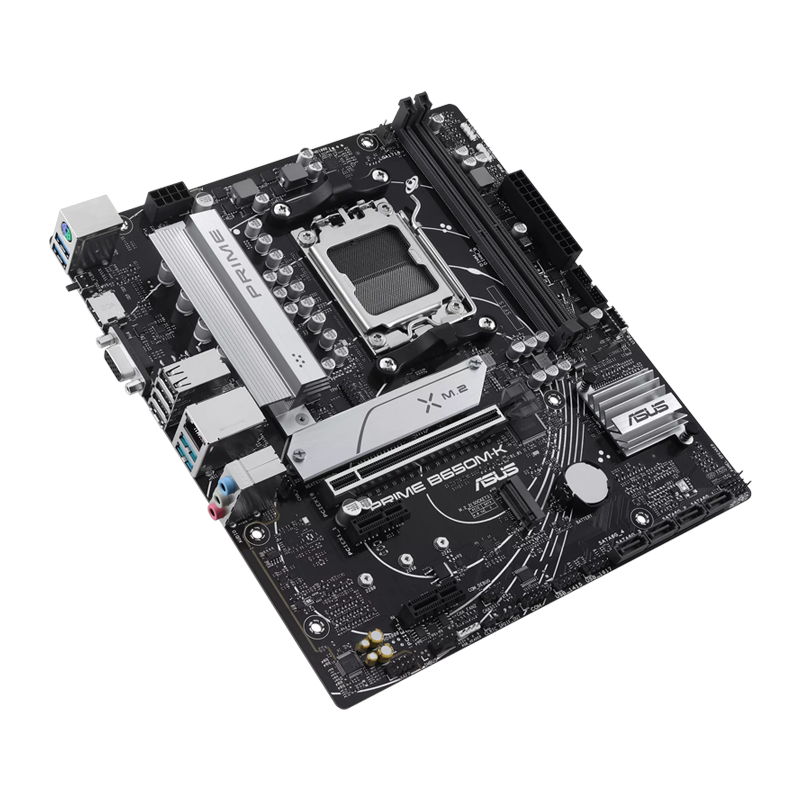

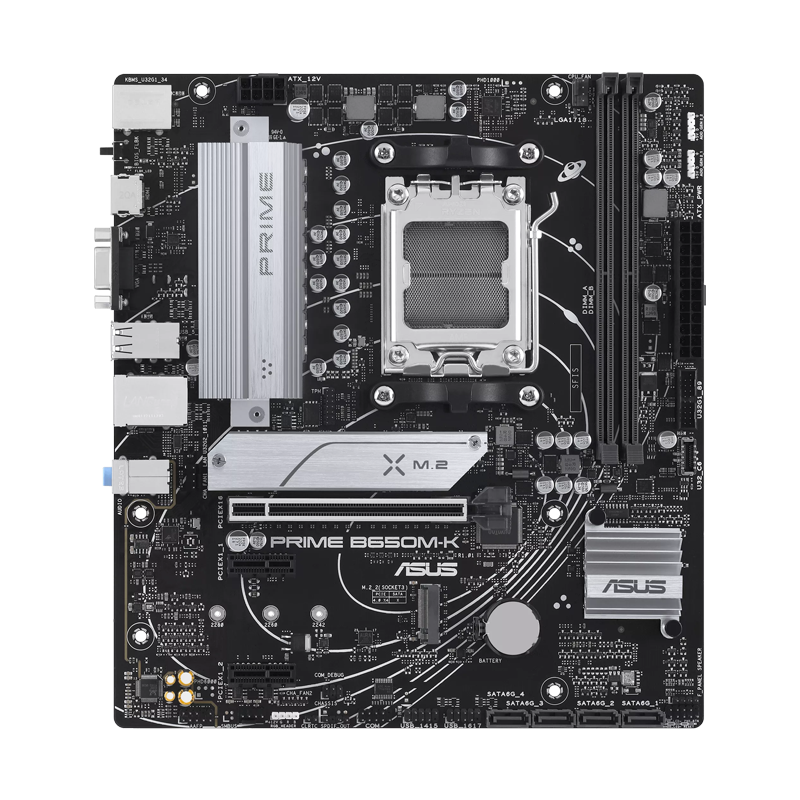

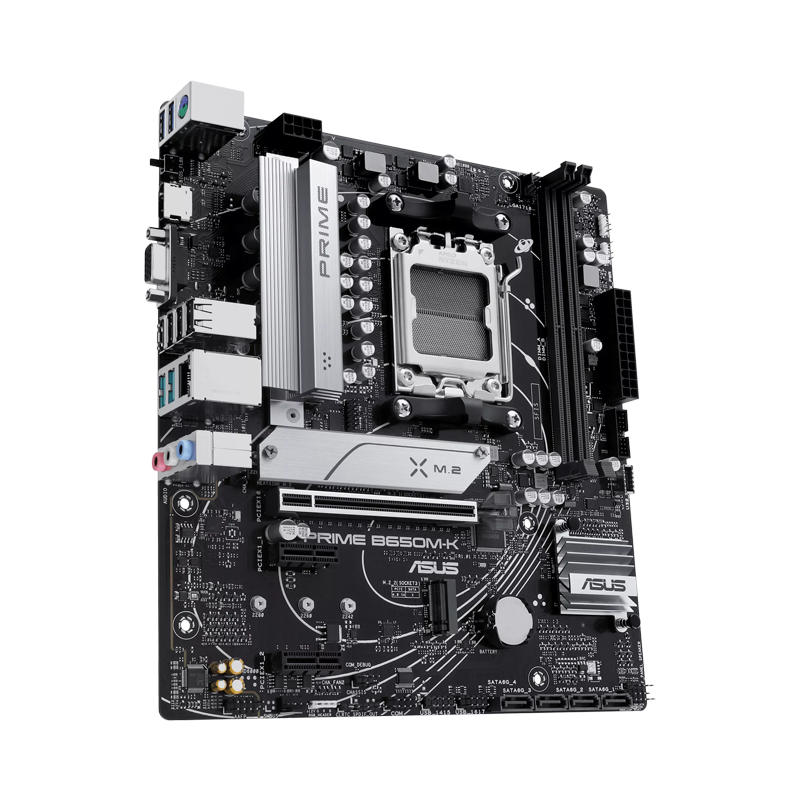

Asus Prime B650M-K DDR5 AMD AM5 microATX Motherboard
₨ 37,999
- Supports AMD Ryzen 9000/8000/7000 Series processors on AM5 with DDR5 up to 8000+ MHz (OC) and up to 96 GB across 2 DIMMs
- PCIe 5.0 M.2 slot (with Ryzen 9000/7000) for next-gen SSDs, plus a second PCIe 4.0 M.2 and 4 SATA 6Gb/s ports with RAID
- Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, HDMI 2.1, VGA, and BIOS FlashBack™ button
- Aura Sync with 2x Addressable Gen 2 headers, M.2 heatsink, VRM heatsink, and ASUS 5X PROTECTION III for reliable operation
Available on backorder
| Overview | |
| Brand | ASUS |
| Model | PRIME B650M-K |
| Chipset | AMD B650 |
| Socket | AMD AM5 |
| CPU Support | Ryzen 9000, 8000, 7000 Series (up to 170W) |
| Memory Type | DDR5 |
| Form Factor | micro-ATX (24.4 x 22.1 cm) |
| Memory | |
| Memory Slots | 2 x DIMM |
| Max Memory | 96 GB |
| Memory Speed | DDR5 up to 8000+ MT/s (OC) |
| Memory Architecture | Dual Channel |
| EXPO Support | Yes (AMD EXPO) |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 4.0 x16 (x16/x8/x4), 2 x PCIe 4.0 x1 |
| M.2 Slots | 1 x PCIe 5.0 x4 (CPU, with Ryzen 9000/7000), 1 x PCIe 4.0 x4 (CPU) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/10) |
| PCIe RAID | RAID 0/1/10 |
| Graphics & Audio | |
| Display Outputs | 1 x HDMI 2.1 (4K@60Hz), 1 x VGA |
| Audio | Realtek 7.1 Surround Sound HD Audio (24-Bit/192 kHz), S/PDIF Out |
| Networking | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard |

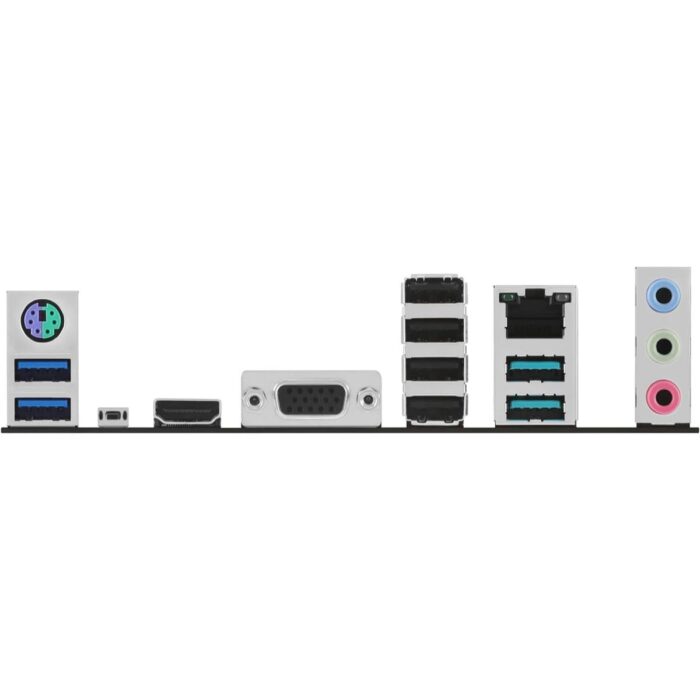

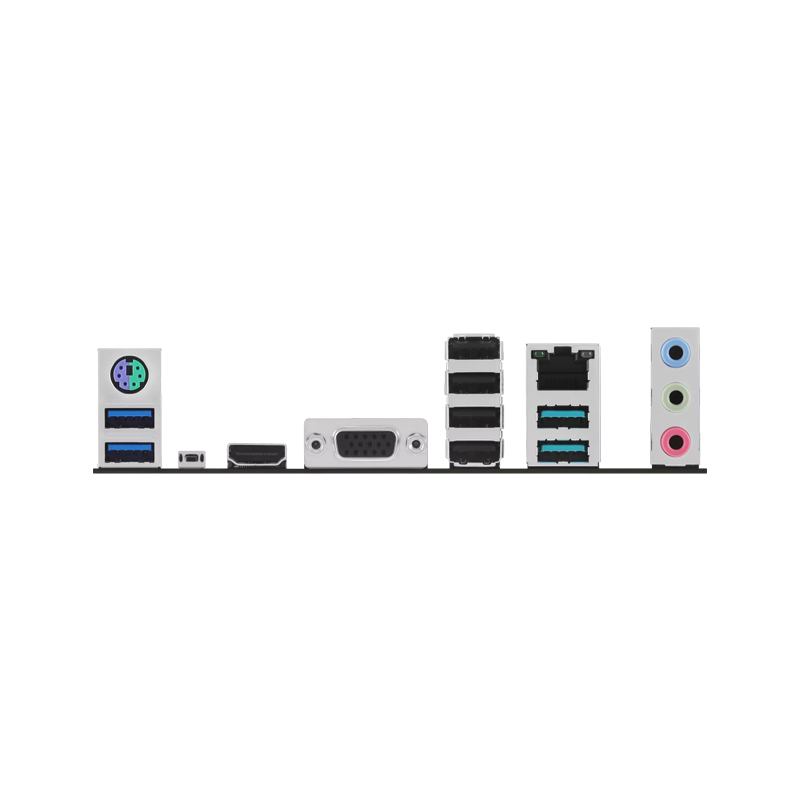

| Rear I/O | |
| USB Ports | 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| Other Ports | 1 x HDMI, 1 x VGA, 1 x 2.5Gb LAN, 3 x Audio Jacks, PS/2 Combo, BIOS FlashBack Button |
| Internal I/O | |
| USB Headers | 1 x USB 3.2 Gen 1 Type-C®, 1 x USB 3.2 Gen 1 (2 ports), 2 x USB 2.0 (4 ports) |
| Fan Headers | 1 x CPU Fan, 2 x Chassis Fan |
| RGB Headers | 2 x Addressable Gen 2, 1 x Aura RGB |
| Special Headers | 1 x S/PDIF Out, 1 x COM Port, 1 x SPI TPM, 1 x Clear CMOS, 1 x Speaker |
| Features | |
| Protection | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core+, Stainless-Steel I/O) |
| ASUS Q-Design | Q-DIMM, Q-LED Core, Q-Slot |
| Thermal Solution | M.2 Heatsink, VRM Heatsink Design |
| EZ DIY | BIOS FlashBack Button & LED |
| Lighting Control | Aura Sync (2 x Addressable Gen 2 + 1 x Aura RGB) |
| AI Features | Two-Way AI Noise Cancellation |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11, Windows 10 64-bit |
| In the Box | |

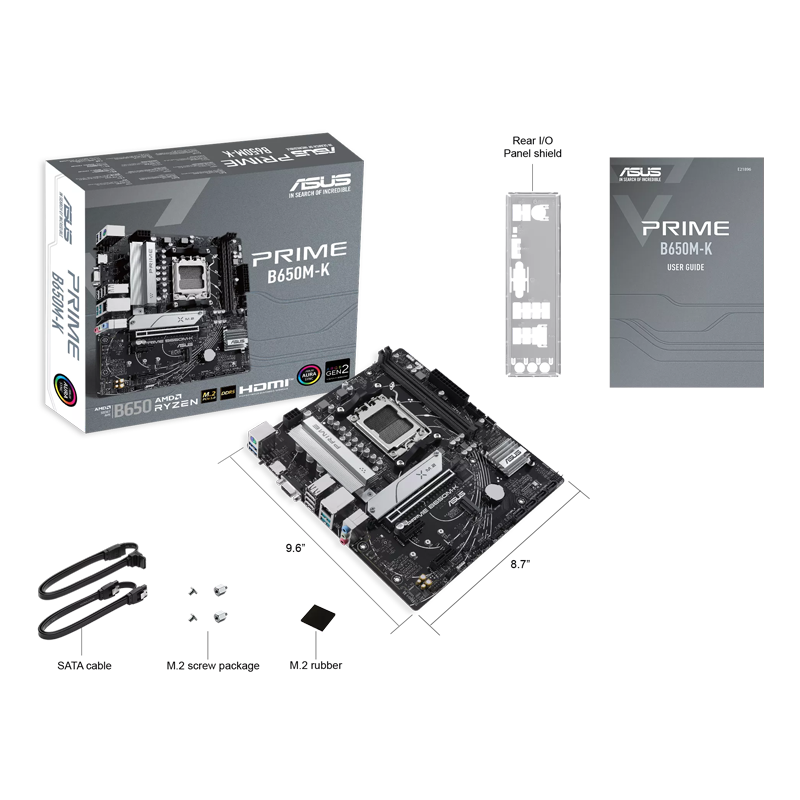

| Accessories | 2 x SATA 6Gb/s Cables, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x M.2 Screw Package, User Guide |
| Brand | Asus |
|---|
