ASUS TUF GAMING B860-PLUS WIFI
₨ 68,450
- Supports Intel Core Ultra Processors (Series 2) on LGA1851 with 4x DIMM DDR5 up to 256GB at 8666+ MT/s
- PCIe 5.0 x16 slot and PCIe 5.0 M.2 for next-gen graphics and storage, plus two additional PCIe 4.0 M.2 slots
- WiFi 7 with Bluetooth 5.4, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® with DP Alt mode, and Thunderbolt™ header
- Military-grade TUF protection with VRM heatsinks, M.2 heatsink, BIOS FlashBack™, and Q-Release PCIe slot
| Overview | |
| Brand | ASUS |
| Series | TUF GAMING B860-PLUS WIFI |
| Chipset | Intel B860 |
| Socket | LGA 1851 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 up to 8666+ MT/s (OC), CUDIMM Support |
| Memory Architecture | Dual Channel |
| Memory Technology | Intel XMP, ASUS AEMPIII, DIMM Fit |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x1 |
| M.2 Slots | 1 x PCIe 5.0 x4 (CPU), 2 x PCIe 4.0 x4 (B860) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| Graphics & Audio | |
| Display Outputs | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 1 x USB-C DP Alt Mode |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC with Optical S/PDIF |
| Networking | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless | Wi-Fi 7 (802.11be) 2×2, up to 2.9Gbps |
| Bluetooth | Bluetooth 5.4 |
| Rear I/O | |

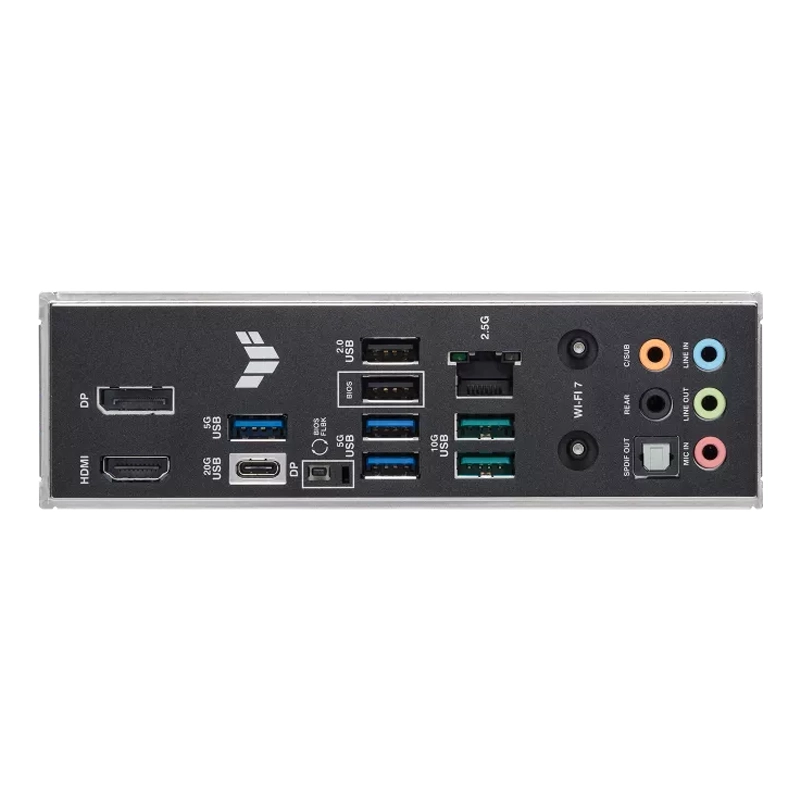

| USB Ports | 1 x USB 20Gbps Type-C (DP Alt), 2 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A |
| Audio Ports | 5 x Audio Jacks, 1 x Optical S/PDIF Out |
| Special Buttons | BIOS FlashBack™ Button |
| Internal I/O | |
| Fan Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan |
| Power Connectors | 1 x 24-pin Main, 2 x 8-pin +12V CPU |
| Front USB | 1 x USB 10Gbps Type-C®, 2 x USB 5Gbps (header), 2 x USB 2.0 (header) |
| RGB Headers | 3 x Addressable Gen 2 |
| Special Headers | 1 x Thunderbolt™ (USB4®), 1 x COM Port, 1 x Chassis Intrusion |
| Features | |
| Protection | TUF PROTECTION (DIGI+ DrMOS, ESD Guards, LANGuard, Overvoltage, SafeSlot, Stainless-Steel I/O) |
| ASUS Q-Design | M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot |
| Thermal Solution | VRM Heatsinks, M.2 Heatsink, ProCool, Pre-Mounted I/O Shield |
| EZ DIY | BIOS FlashBack™, CPU Socket Lever Protector, SafeDIMM |
| Lighting Control | Aura Sync (3 x Addressable Gen 2) |
| Software Suite | Armoury Crate, Aura Creator, Fan Xpert 4, DTS Audio Processing |
| BIOS | 2 x 128Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2+) |
| Included Accessories | |
| In the Box | 2 x SATA 6Gb/s Cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 Rubber Packages, 1 x M.2 Screw Package, 1 x TUF GAMING Sticker, Quick Start Guide |
| Brand | Asus |
|---|
Brand
Asus
TUF Gaming
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
At Amir Traders, we aim to provide a smooth and hassle-free shopping experience to our valued customers. We offer fast, secure, and nationwide delivery services across Pakistan.
All orders are typically processed and dispatched within 1 to 2 working days after confirmation. Once shipped, delivery timelines vary depending on your location, usually taking between 2 to 5 business days. For customers in major cities, delivery is often quicker.
We currently offer Cash on Delivery (COD) for your convenience, allowing you to pay when the product arrives at your doorstep. Our packaging is done with care to ensure your products reach you safely and in perfect condition.
If you have any questions regarding your delivery or would like to track your order, feel free to contact our support team anytime.
