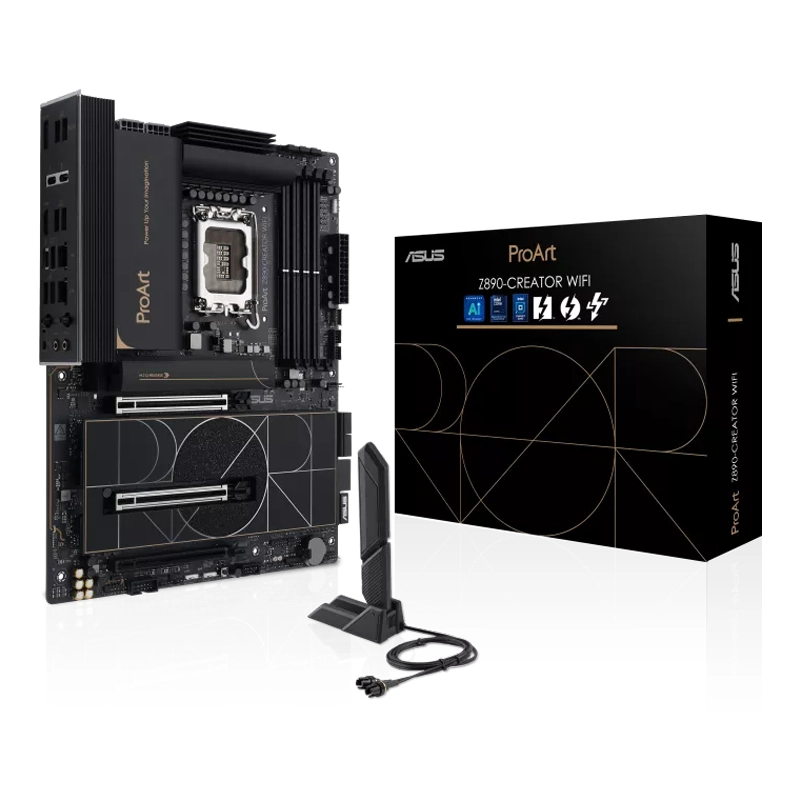

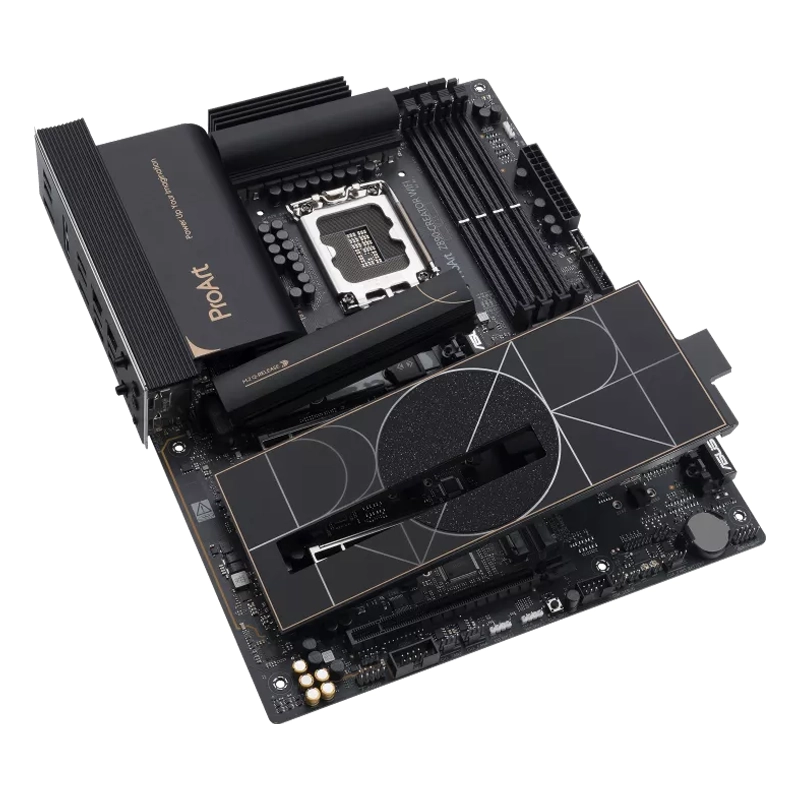

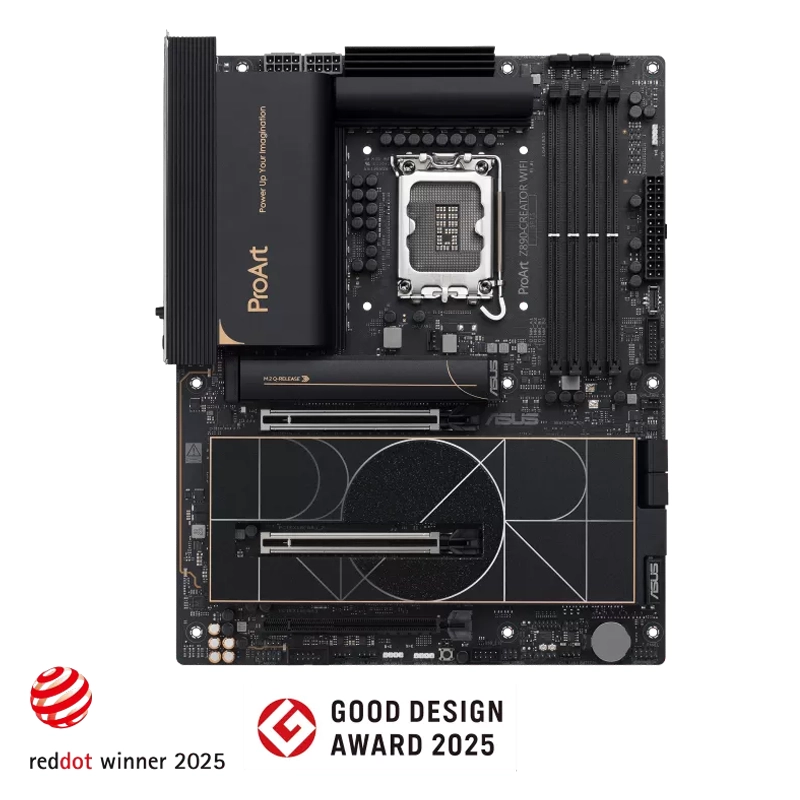

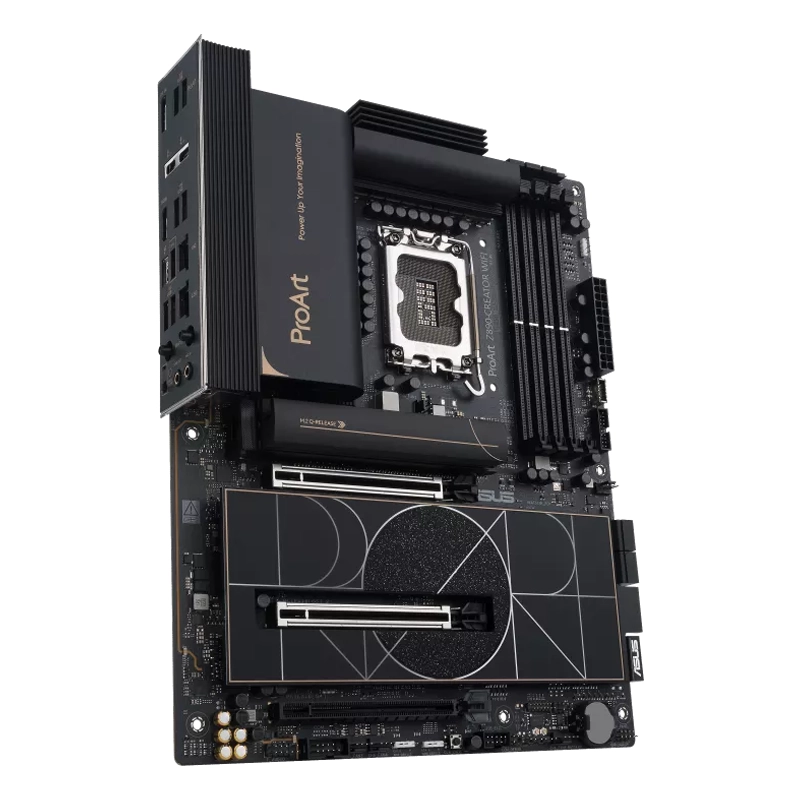

ASUS ProArt Z890-CREATOR WIFI Intel Motherboard
₨ 184,999
- Professional Z890 ATX creator motherboard with dual Thunderbolt™ 5 (up to 80Gbps), Thunderbolt™ 4, and Marvell 10Gb Ethernet
- Supports Intel Core Ultra Processors (Series 2) on LGA1851 with DDR5 up to 256GB at 9066+ MT/s, DIMM Flex, and DIMM Fit
- Dual PCIe 5.0 x16 slots (x16 or x8/x8), PCIe 5.0 M.2, four additional M.2 slots, and DisplayPort input for Thunderbolt pass-through
- Realtek ALC1220P audio, 24/7 reliability with overcurrent protection, ProArt Creator Hub, and ASUS Control Center Express for IT management
Available on backorder
| Overview | |
| Brand | ASUS ProArt |
| Model | ProArt Z890-CREATOR WIFI |
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 up to 9066+ MT/s (OC), CUDIMM Support |
| Memory Architecture | Dual Channel |
| Memory Technology | Intel XMP, ASUS AEMPIII, DIMM Flex, DIMM Fit |
| Expansion & Storage | |
| PCIe Slots | 2 x PCIe 5.0 x16 (x16 or x8/x8), 1 x PCIe 4.0 x16 (x4, shared with M.2_5) |
| M.2 Slots | 1 x PCIe 5.0 x4 (CPU, up to 22110), 1 x PCIe 4.0 x4 (CPU), 3 x PCIe 4.0 x4 (Z890), M.2_5 supports SATA |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| RAID Support | PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Graphics & Audio | |
| Display Outputs | 1 x HDMI 2.1 (4K@60Hz), 2 x Thunderbolt 5 (up to dual 8K@60Hz DSC + 4K), 1 x Thunderbolt 4 (8K@60Hz DSC) |
| DisplayPort Input | 1 x DisplayPort Input (for Thunderbolt pass-through from GPU) |
| Audio | Realtek ALC1220P 7.1 HD Audio, 120dB SNR, 32-Bit/192 kHz |
| Audio Jacks | Gold-Plated |
| Networking | |
| Ethernet 1 | 1 x Marvell AQtion 10Gb Ethernet |
| Ethernet 2 | 1 x Intel 2.5Gb Ethernet with ASUS LANGuard |
| Wireless | Wi-Fi 7 (802.11be) 2×2, 320MHz, up to 5.8Gbps |
| Bluetooth | Bluetooth 5.4 |

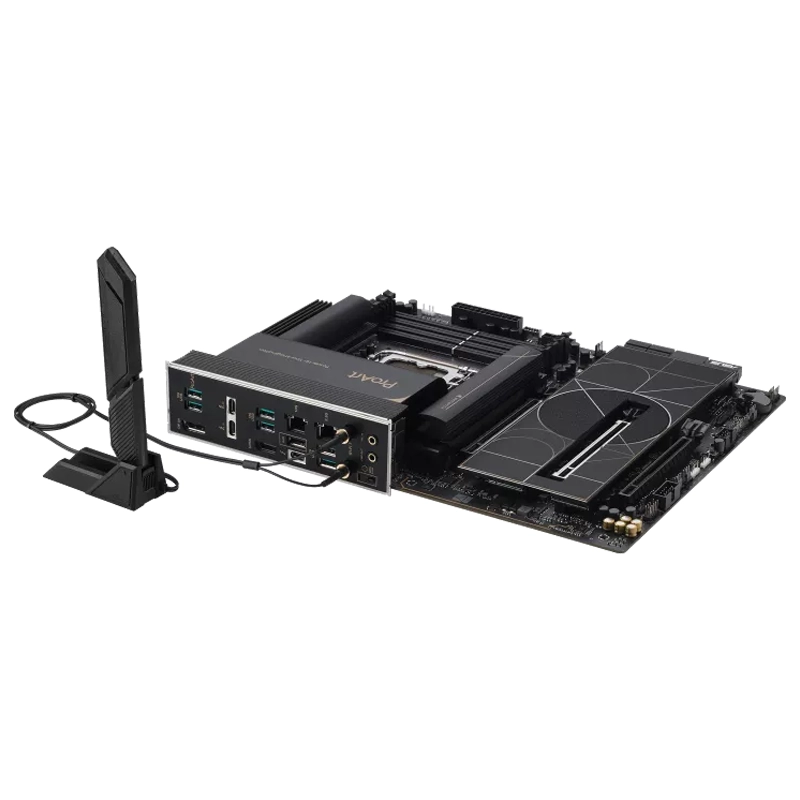

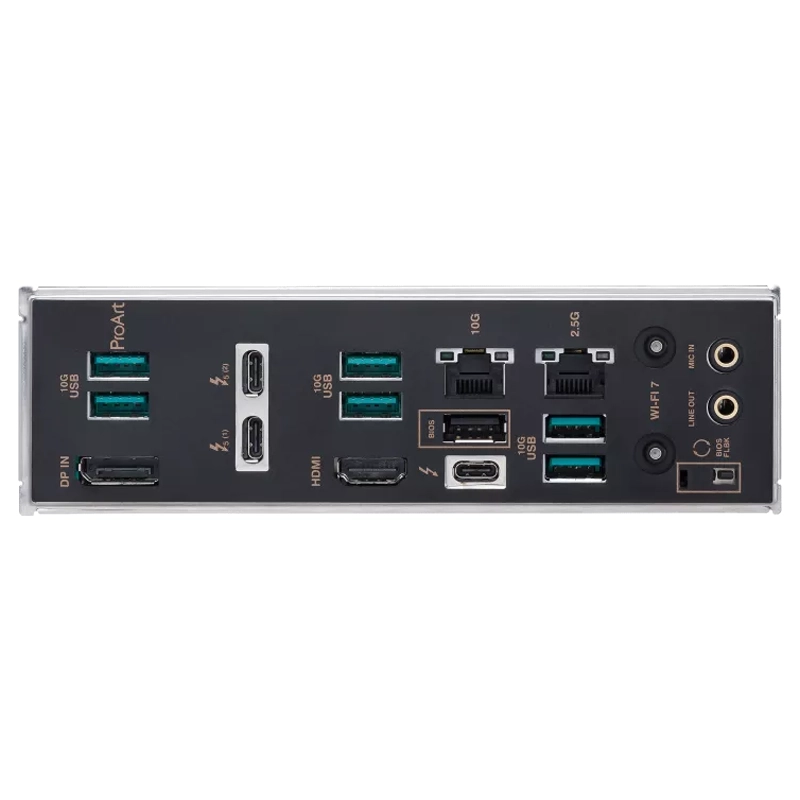

| Rear I/O | |
| Thunderbolt / USB4 | 2 x Thunderbolt 5 Type-C, 1 x USB4 / Thunderbolt 4 Type-C |
| USB Ports | 6 x USB 10Gbps Type-A, 1 x USB 2.0 Type-A |
| DisplayPort | 1 x DisplayPort Input (for GPU to Thunderbolt pass-through) |
| Audio Ports | 2 x Gold-Plated Audio Jacks |
| Buttons | BIOS FlashBack™, Clear CMOS |
| Internal I/O | |
| Fan Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 5 x Chassis Fan |
| Power Connectors | 1 x 24-pin Main, 2 x 8-pin +12V CPU (ProCool II) |
| Front USB | 1 x USB 20Gbps Type-C®, 2 x USB 5Gbps (header), 2 x USB 2.0 (header) |
| RGB Headers | 3 x Addressable Gen 2 |
| Special Headers | 1 x Thermal Sensor, 1 x COM Port, 1 x SPI TPM, 1 x Chassis Intrusion, 1 x CPU Over Voltage Jumper, 1 x Clear CMOS Button |
| Features | |
| Protection | ASUS 5X PROTECTION III, 24/7 Reliability, Overcurrent Protection |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim, Q-Antenna, Q-Connector, Q-Dashboard, Q-DIMM, Q-LED (4-color) |
| Thermal Solution | M.2 Heatsinks, M.2 Heatsink Backplate, VRM Heatsinks, ProCool II, Pre-Mounted I/O Shield |
| EZ DIY | BIOS FlashBack™, Clear CMOS, CPU Socket Lever Protector, SafeSlot, SafeDIMM, Box Headers |
| AI Features | AI Overclocking Guide, NPU Boost |
| Creator Software | ProArt Creator Hub, CreationFirst, Thunderbolt Share |
| IT Management | ASUS Control Center Express (ACCE) |
| Lighting Control | Aura Sync (3 x Addressable Gen 2), Aura Creator |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2+) |
| Included Accessories | |
| In the Box | 2 x SATA 6Gb/s Cables, 1 x ASUS WiFi Q-Antenna, 1 x Q-Connector, 2 x M.2 Q-Latch, 2 x M.2 Rubber Packages, 1 x ProArt Accessory Bag, ACC Express Activation Key Card, Quick Start Guide |
| Brand | Asus |
|---|
