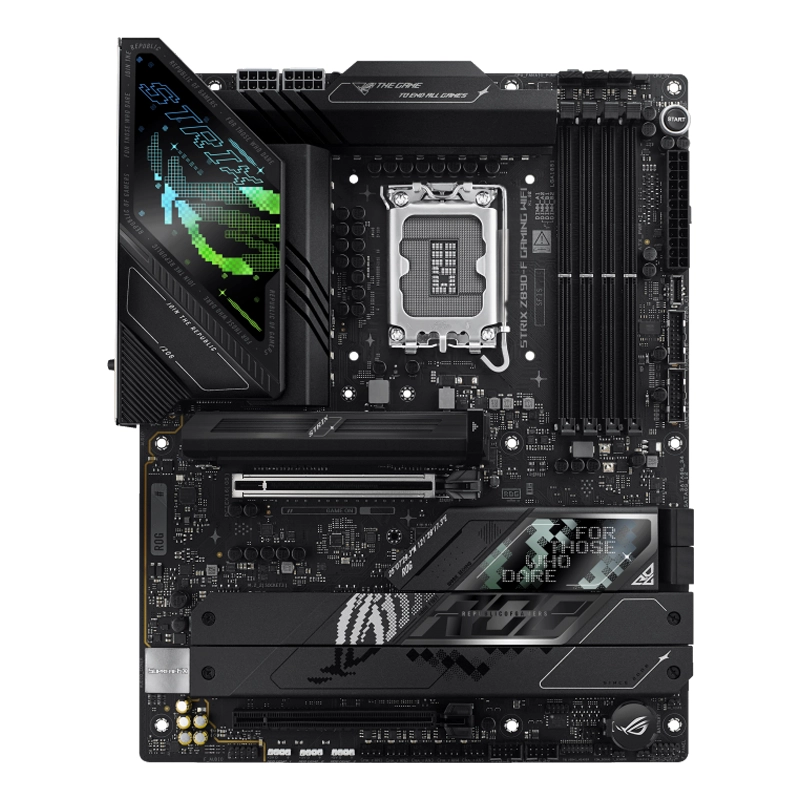

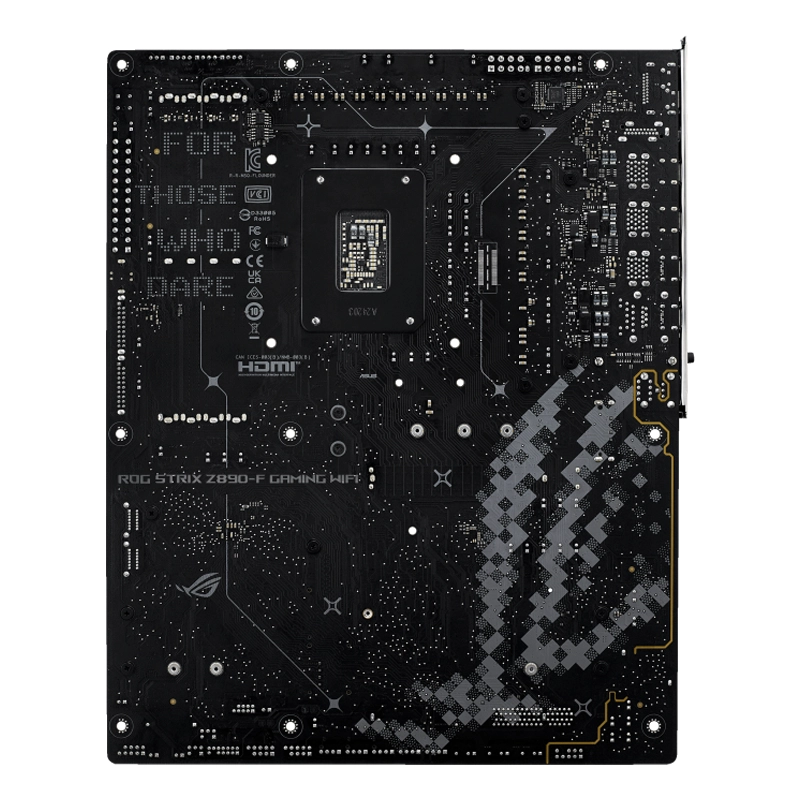

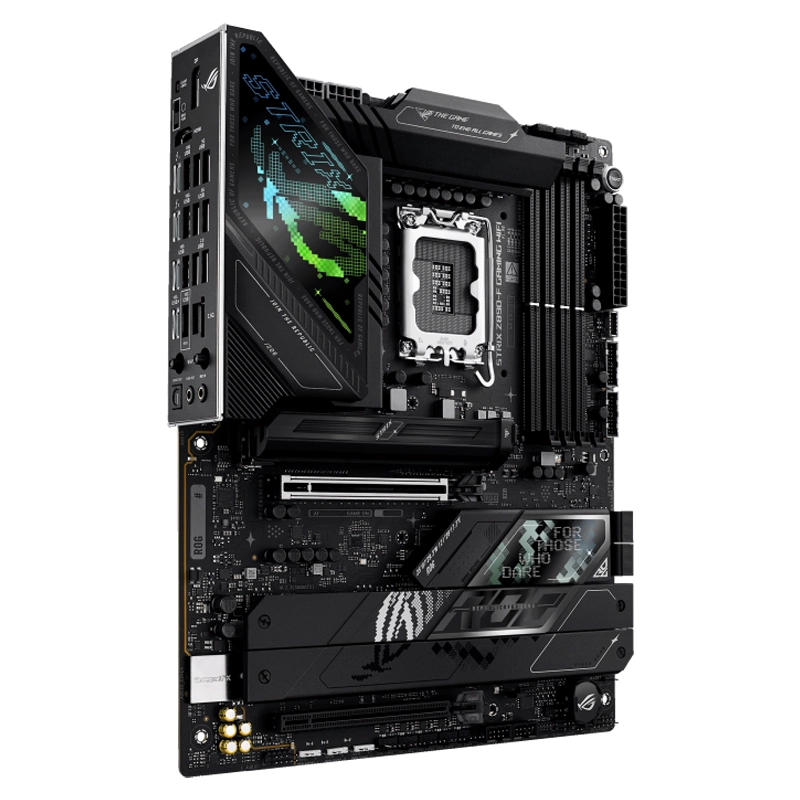

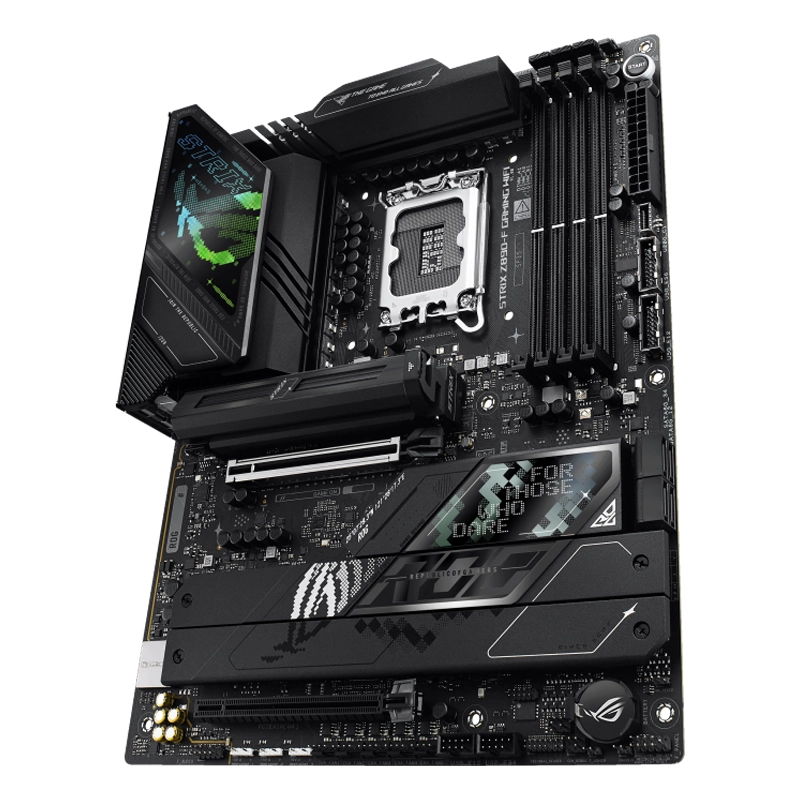

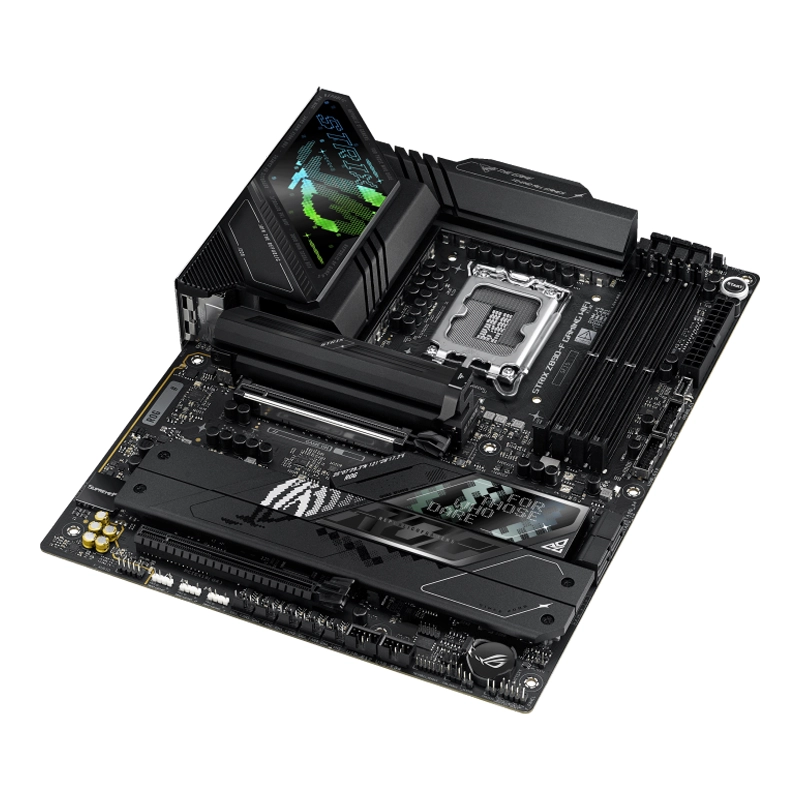

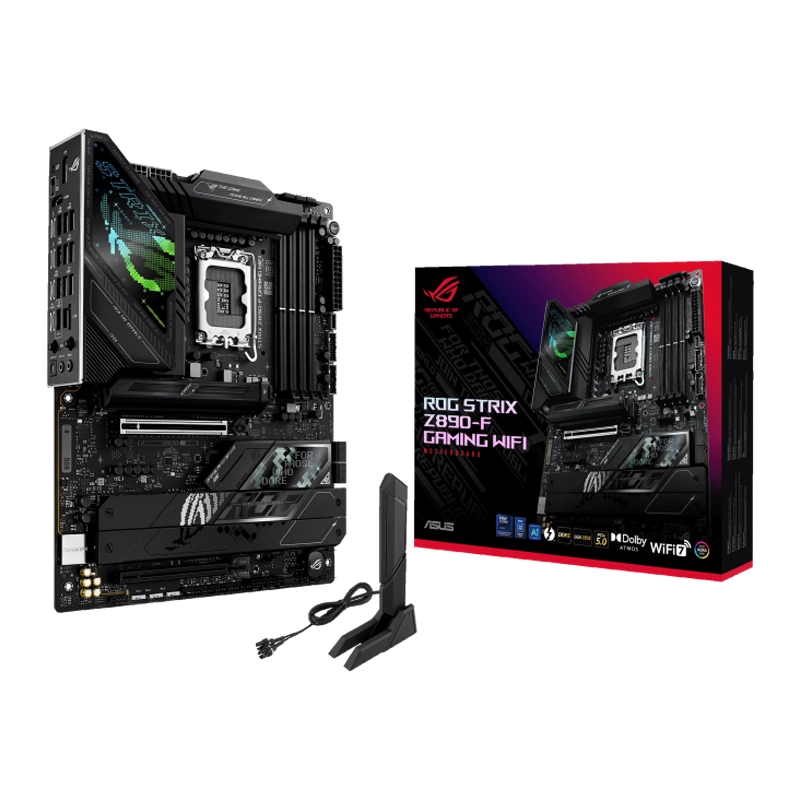

ASUS ROG STRIX Z890-F GAMING WIFI Intel Motherboard
₨ 144,999
- ROG STRIX flagship Z890 ATX motherboard with dual Thunderbolt™ 4, 5x M.2 slots, and WiFi 7 at 5.8Gbps
- Supports Intel Core Ultra Processors (Series 2) on LGA1851 with DDR5 up to 256GB at 9066+ MT/s and DIMM Flex
- PCIe 5.0 x16 with bifurcation (x16 or x8/x4/x4), PCIe 5.0 M.2, and four additional PCIe 4.0 M.2 slots including SATA mode
- ROG SupremeFX ALC4080 with Savitech amp, 120dB SNR, 32-Bit/384kHz, Dolby Atmos, AI Overclocking, NPU Boost, and FlexKey
| Overview | |
| Brand | ASUS ROG |
| Series | ROG STRIX Z890-F GAMING WIFI |
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 up to 9066+ MT/s (OC), CUDIMM Support |
| Memory Architecture | Dual Channel |
| Memory Technology | Intel XMP, ASUS AEMPIII, DIMM Flex, DIMM Fit |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 5.0 x16 (x16 or x8/x4/x4), 1 x PCIe 4.0 x16 (x4) |
| M.2 Slots | 5 x Total: 1 x PCIe 5.0 x4 (CPU), 1 x PCIe 4.0 x4 (CPU), 3 x PCIe 4.0 x4 (Z890), M.2_5 supports SATA |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| RAID Support | PCIe RAID 0/1/5, SATA RAID 0/1/5/10 |
| Graphics & Audio | |
| Display Outputs | 1 x DisplayPort 1.4 (8K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 2 x Thunderbolt 4 (8K@60Hz DSC or dual 4K@60Hz) |
| Audio | ROG SupremeFX ALC4080 7.1 HD Audio, 120dB SNR, Savitech SV3H712 Amp |
| Audio Format | Up to 32-Bit/384 kHz Playback (Front Panel) |
| Audio Jacks | Gold-Plated, 1 x Optical S/PDIF Out |
| Audio Software | Dolby Atmos |
| Networking | |
| Ethernet | 1 x Intel 2.5Gb Ethernet with ASUS LANGuard |
| Wireless | Wi-Fi 7 (802.11be) 2×2, 320MHz, up to 5.8Gbps |
| Bluetooth | Bluetooth 5.4 |
| Rear I/O | |
| USB Ports | 2 x Thunderbolt 4 Type-C, 6 x USB 10Gbps (4A + 1C + 1C 30W PD Fast-Charge), 4 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A |
| Audio Ports | 2 x Gold-Plated Audio Jacks, 1 x Optical S/PDIF Out |
| Buttons | BIOS FlashBack™, Clear CMOS |
| Internal I/O | |
| Fan Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 5 x Chassis Fan |
| Power Connectors | 1 x 24-pin Main, 2 x 8-pin +12V CPU (ProCool II) |
| Front USB | 1 x USB 20Gbps Type-C®, 4 x USB 5Gbps (headers), 4 x USB 2.0 (headers) |
| RGB Headers | 3 x Addressable Gen 2 |
| Special Headers | 1 x Thunderbolt™ (USB4®), 1 x Thermal Sensor, 1 x Chassis Intrusion, 1 x CPU Over Voltage Jumper, 1 x Start Button |
| Features | |
| Engine | Extreme Engine Digi+ with 5K Black Metallic Capacitors |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (4-color), Q-Slot |
| Thermal Solution | M.2 Heatsinks, M.2 Heatsink Backplate, VRM Heatsinks, ProCool II, Pre-Mounted I/O Shield |
| EZ DIY | BIOS FlashBack™, Clear CMOS, SafeSlot, SafeDIMM, Start Button |
| AI Features | AI Overclocking Guide, AI Cooling II, NPU Boost |
| Exclusive Features | FlexKey, DIMM Flex, USB Wattage Watcher |
| Lighting Control | Aura Sync (3 x Addressable Gen 2), Aura Creator |
| Software Suite | Armoury Crate, Fan Xpert 4, GameFirst, TurboV Core, AIDA64 Extreme, HWiNFO |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2+) |
| Included Accessories | |

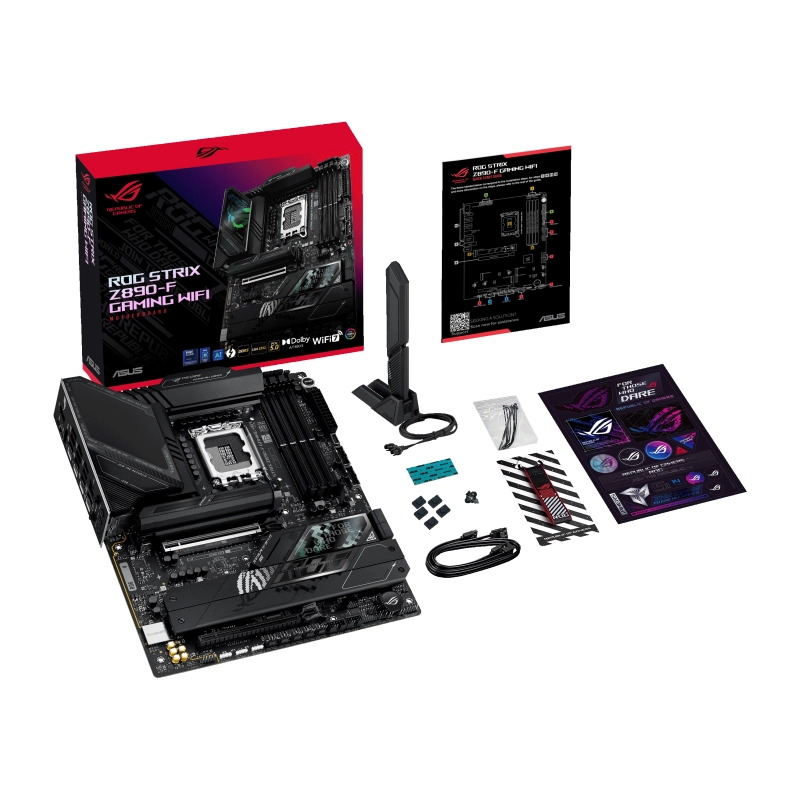

| In the Box | 2 x SATA 6Gb/s Cables, 1 x Thermal Pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Cable Ties, 1 x M.2 Q-Latch, 1 x ROG Key Chain, 1 x ROG Strix Stickers, 3 x M.2 Rubber Packages, Quick Start Guide |
| Brand | Asus |
|---|
Brand
Asus
ROG Strix
