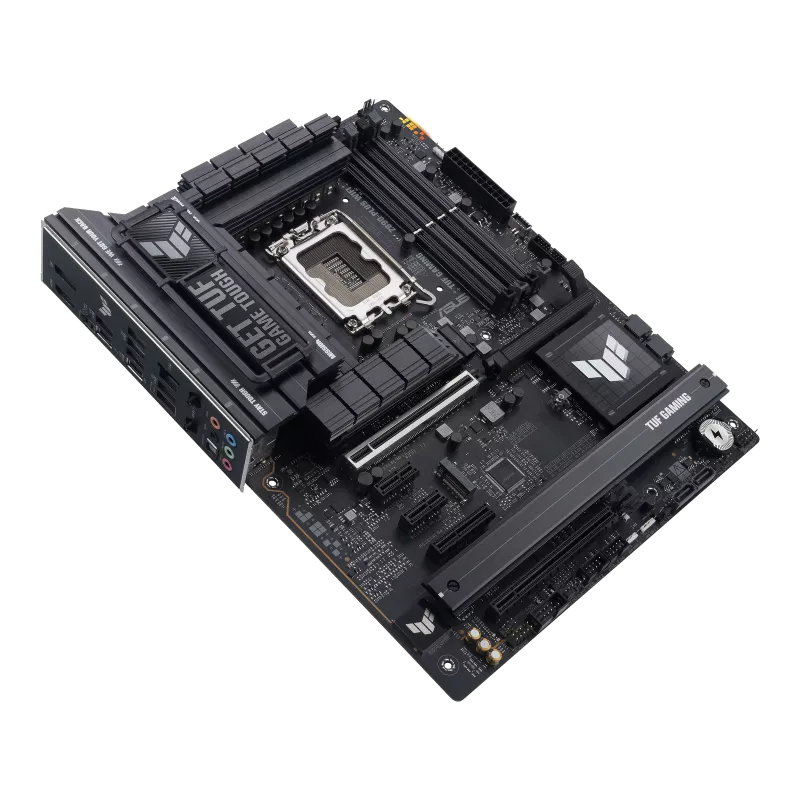

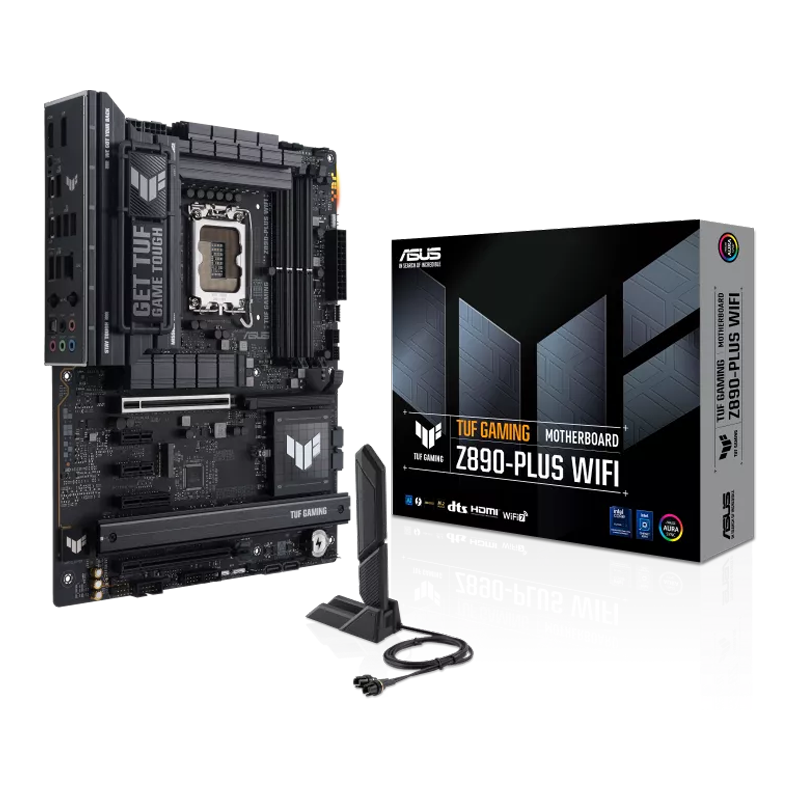

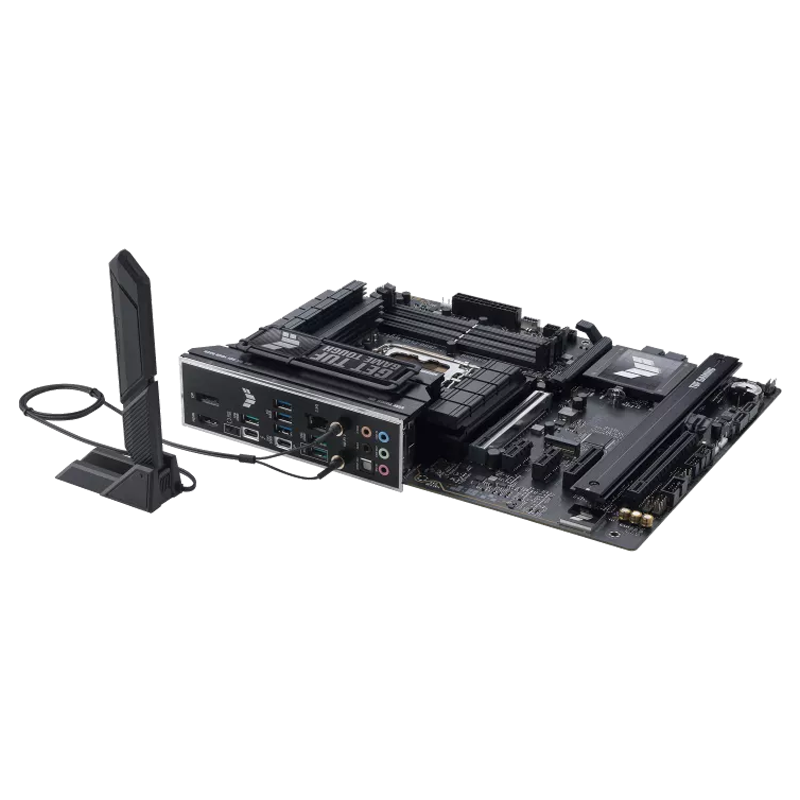

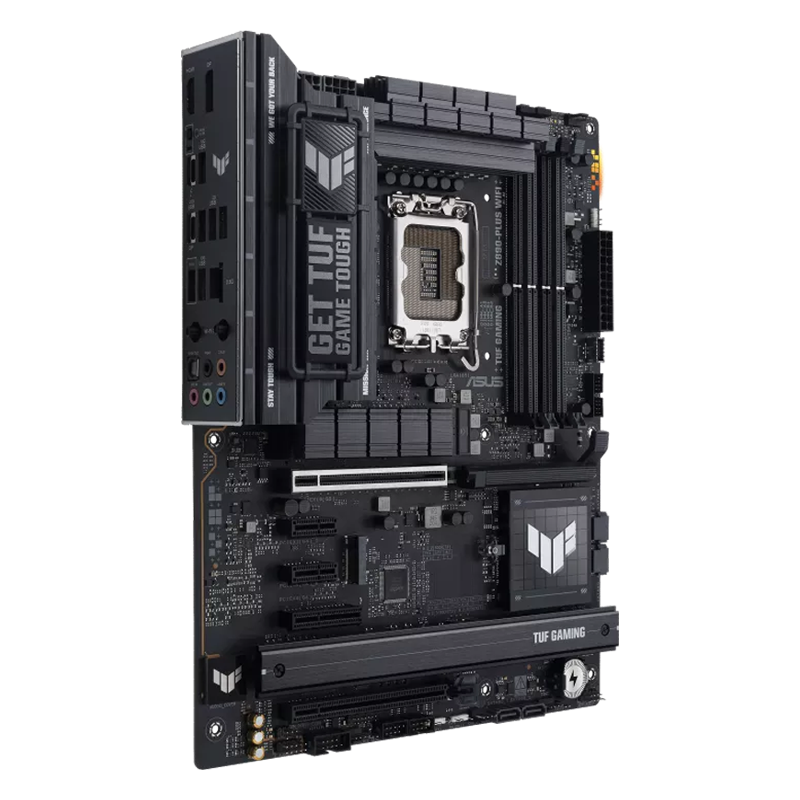

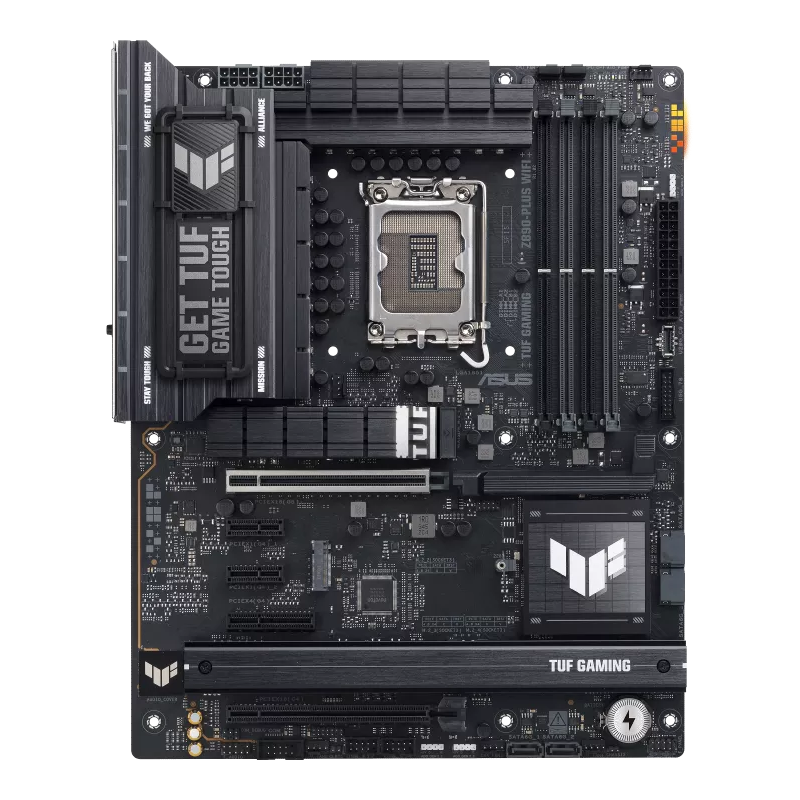

ASUS TUF GAMING Z890-PLUS WIFI Intel Motherboard
₨ 114,999
- TUF military-grade Z890 ATX motherboard with Thunderbolt™ 4, supporting Intel Core Ultra Processors (Series 2) on LGA1851 with DDR5 up to 256GB at 9066+ MT/s
- PCIe 5.0 x16 slot and PCIe 5.0 M.2 for ultimate graphics and storage, plus three additional PCIe 4.0 M.2 slots with SATA mode support
- WiFi 7 with Bluetooth 5.4, Intel 2.5Gb Ethernet, rear Thunderbolt™ 4 and USB 20Gbps Type-C® with DP Alt mode, plus front USB 20Gbps Type-C®
- Premium ALC1220P audio with 120dB SNR, DTS Audio Processing, AI Cooling II, NPU Boost, and TUF durability with 5K black metallic capacitors
Available on backorder
| Overview | |
| Brand | ASUS TUF GAMING |
| Model | TUF GAMING Z890-PLUS WIFI |
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 up to 9066+ MT/s (OC), CUDIMM Support |
| Memory Architecture | Dual Channel |
| Memory Technology | Intel XMP, ASUS AEMPIII, DIMM Fit |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x4, 2 x PCIe 4.0 x1 |
| M.2 Slots | 1 x PCIe 5.0 x4 (CPU), 1 x PCIe 4.0 x4 (CPU), 2 x PCIe 4.0 x4 (Z890), M.2_4 supports SATA |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| RAID Support | PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Graphics & Audio | |
| Display Outputs | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 1 x Thunderbolt 4 DP Alt (8K@60Hz DSC), 1 x USB-C DP Alt (4K@60Hz) |
| Audio | Realtek ALC1220P 7.1 HD Audio, 120dB SNR, 32-Bit/192 kHz |
| Audio Software | DTS Audio Processing |
| Networking | |
| Ethernet | 1 x Intel 2.5Gb Ethernet with TUF LANGuard |
| Wireless | Wi-Fi 7 (802.11be) 2×2, up to 2.9Gbps |
| Bluetooth | Bluetooth 5.4 |

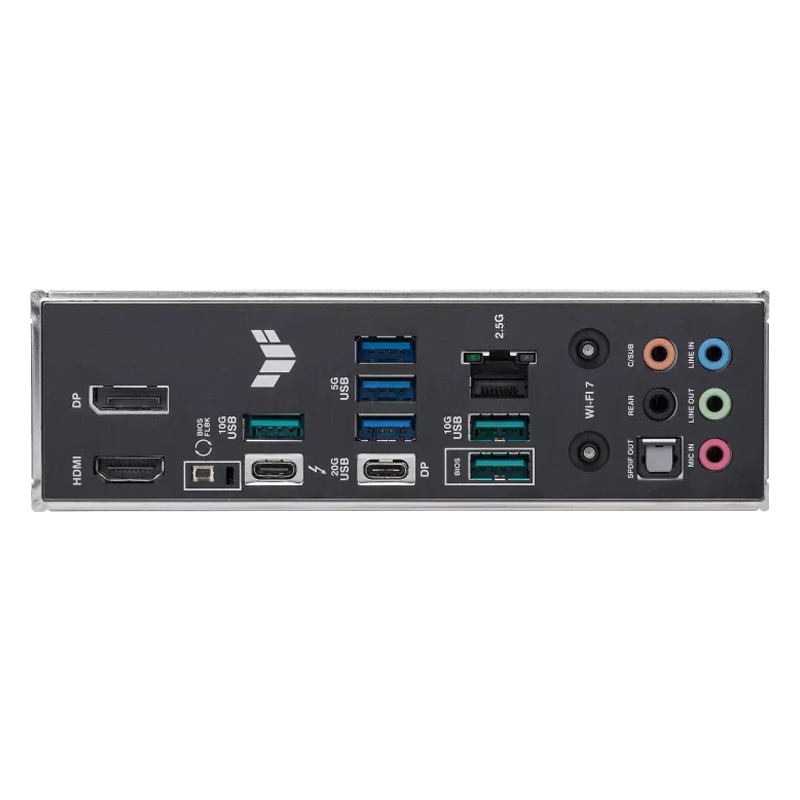

| Rear I/O | |
| USB Ports | 1 x Thunderbolt 4 Type-C, 1 x USB 20Gbps Type-C (DP Alt), 3 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A |
| Audio Ports | 5 x Audio Jacks, 1 x Optical S/PDIF Out |
| Buttons | BIOS FlashBack™ Button |
| Internal I/O | |
| Fan Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan |
| Power Connectors | 1 x 24-pin Main, 2 x 8-pin +12V CPU |
| Front USB | 1 x USB 20Gbps Type-C®, 2 x USB 5Gbps (header), 4 x USB 2.0 (headers) |
| RGB Headers | 3 x Addressable Gen 2 |
| Special Headers | 1 x Thunderbolt™ (USB4®), 1 x COM Port, 1 x Chassis Intrusion |
| Features | |
| Protection | TUF PROTECTION (DIGI+ DrMOS, ESD Guards, TUF LANGuard, Overvoltage, SafeSlot, Stainless-Steel I/O) |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (4-color), Q-Slot |
| Thermal Solution | M.2 Heatsink Backplate, M.2 Heatsinks, VRM Heatsinks, ProCool, Pre-Mounted I/O Shield |
| EZ DIY | BIOS FlashBack™, CPU Socket Lever Protector, SafeDIMM |
| AI Features | AI Cooling II, NPU Boost |
| Lighting Control | Aura Sync (3 x Addressable Gen 2), Aura Creator |
| Software Suite | Armoury Crate, Fan Xpert 4, TurboV Core, TUF GAMING CPU-Z, DTS Audio |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2+) |
| Included Accessories | |
| In the Box | 2 x SATA 6Gb/s Cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 Q-Slide, 2 x M.2 Rubber Packages, 1 x M.2 Screw Package, 1 x TUF GAMING Sticker, 1 x TUF Removable Nameplate, Quick Start Guide |
