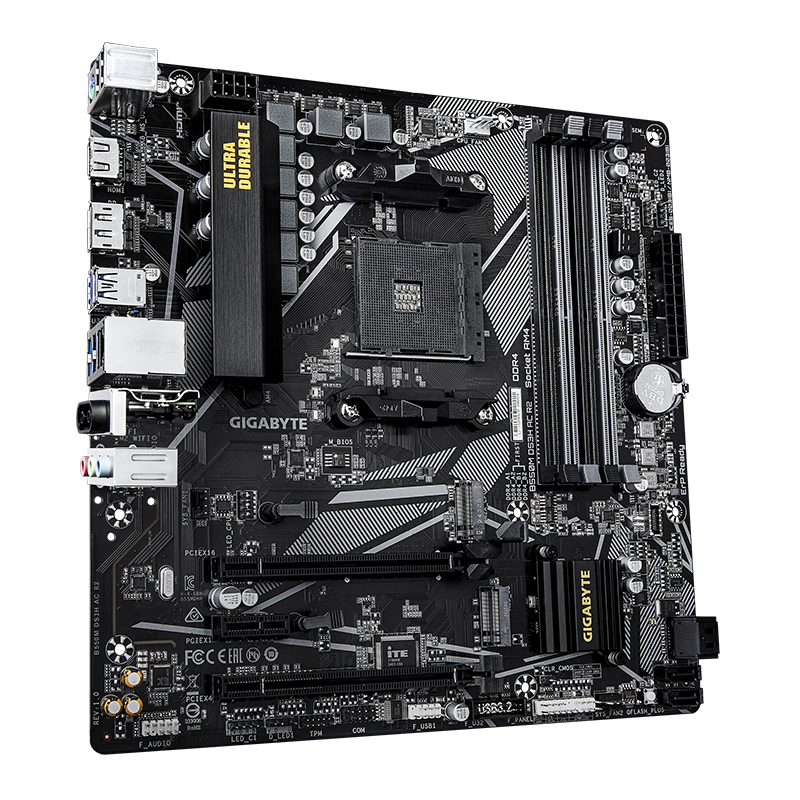

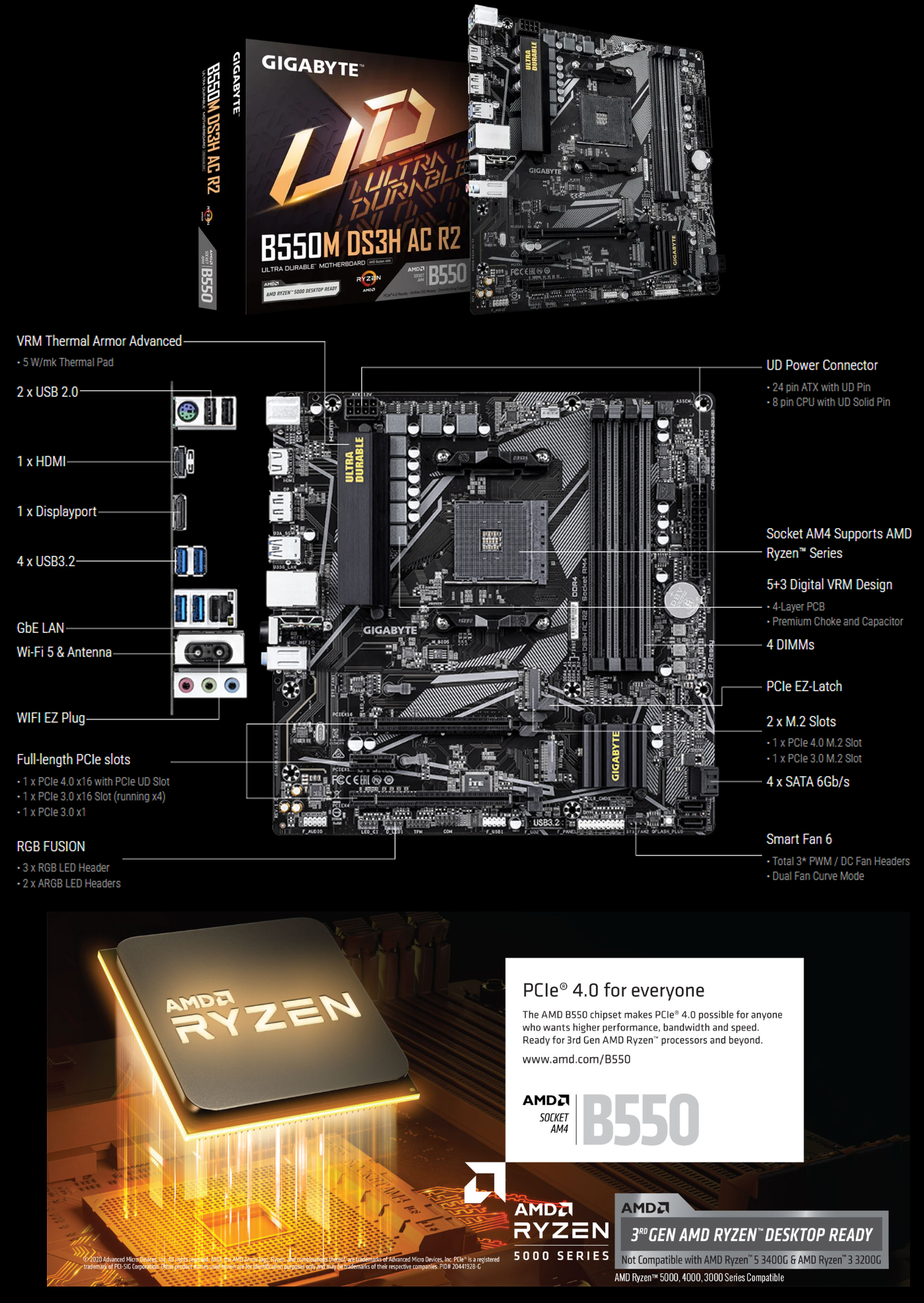

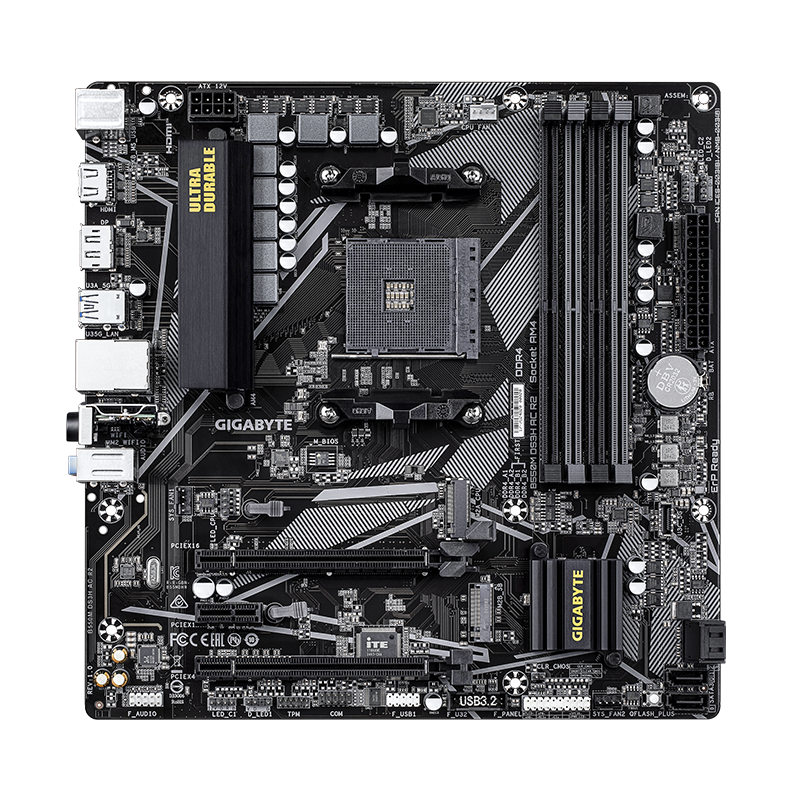

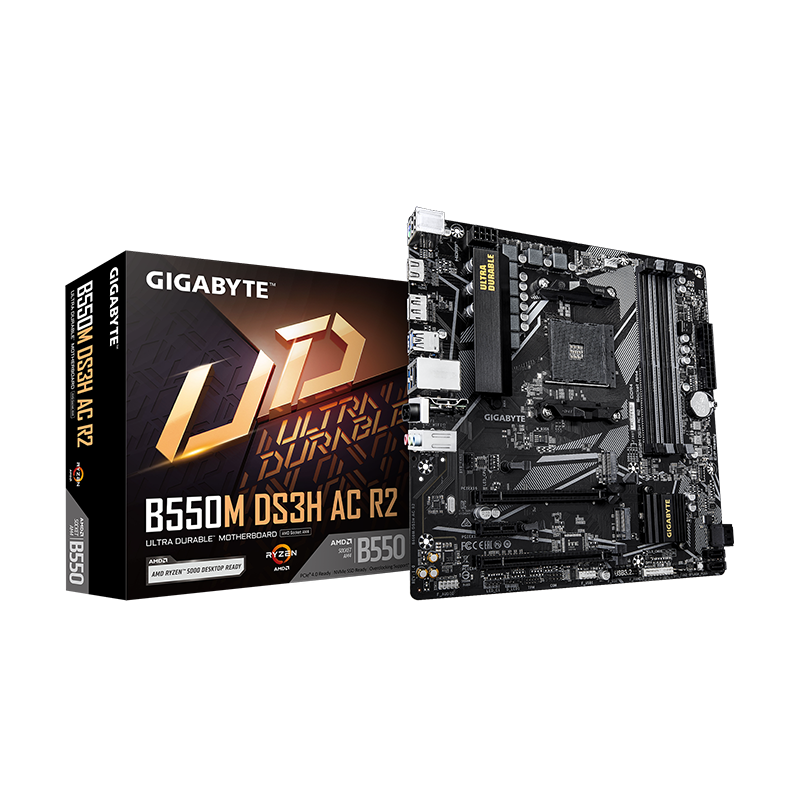

IIGABYTE B550M DS3H AC R2 AMD AM4 Micro-ATX Motherboard:
₨ 31,999
Supports AMD Ryzen 5000/4000/3000 Series processors on AM4 with DDR4 up to 4733 MHz (OC) and up to 128 GB across 4 DIMMs
PCIe 4.0 x16 UD Slot with 10X strength and EZ-Latch, dual M.2 connectors (PCIe 4.0 x4 + PCIe 3.0 x2), and 4 SATA 6Gb/s with RAID
Built-in Wi-Fi 5 (802.11ac) with Bluetooth 5.0, WIFI EZ-Plug, GbE LAN, rear USB 3.2 Gen 1, internal USB Type-C®, and Q-Flash Plus
VRM Thermal Armor Advanced on 5+3 phases digital VRM, 5 RGB/ARGB headers, and Smart Fan 5 for comprehensive system control
| Overview | |
| Brand | GIGABYTE |
| Model | B550M DS3H AC R2 |
| Chipset | AMD B550 |
| Socket | AMD AM4 |
| CPU Support | Ryzen 5000/5000G/4000G/3000/3000G Series |
| Memory Type | DDR4 |
| Form Factor | Micro-ATX (24.4 x 24.4 cm) |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 128 GB |
| Memory Speed | DDR4 up to 4733 MHz (OC) |
| Memory Architecture | Dual Channel |
| XMP Support | Yes (Intel XMP) |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 4.0 x16 (UD Slot, 10X Strength), 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1 |
| EZ-Latch | Yes (PCIe Quick Release Design) |
| M.2 Slots | 1 x PCIe 4.0 x4/SATA (CPU), 1 x PCIe 3.0 x2/SATA (B550) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/10) |
| NVMe RAID | RAID 0/1/10 |
| Graphics & Audio | |
| Display Outputs | 1 x DisplayPort 1.4 (5120×2880@60Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Audio | Realtek Audio CODEC, 7.1-Channel HD Audio |
| Networking | |
| Ethernet | Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| Wireless | Realtek Wi-Fi 5 (802.11ac, 2.4/5 GHz Dual-Band) |
| Bluetooth | Bluetooth 5.0 |
| WIFI EZ-Plug | Yes (Quick Wi-Fi Antenna Installation) |

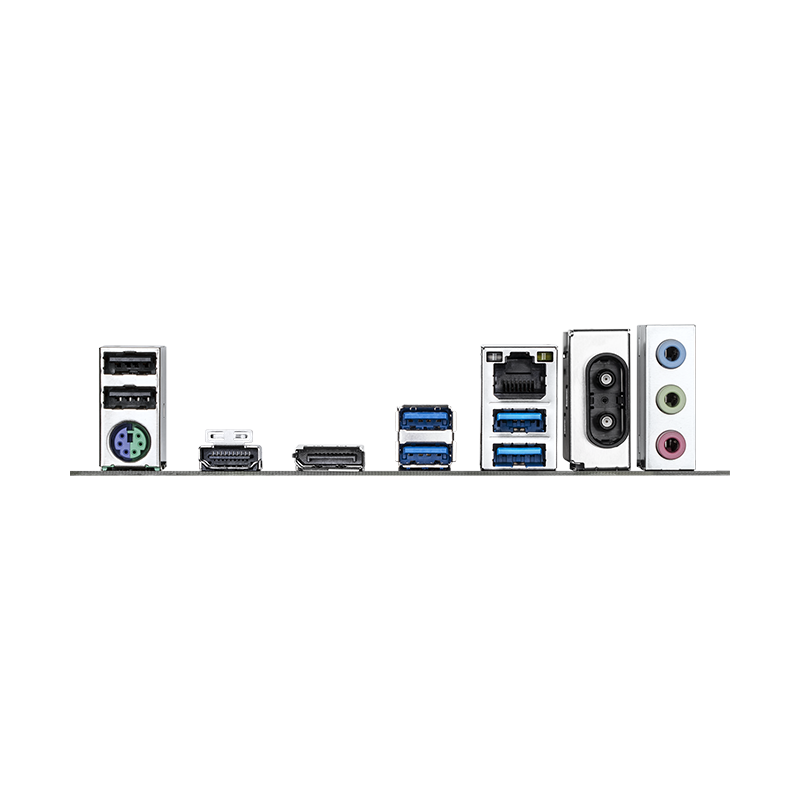

| Rear I/O | |
| USB Ports | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| Other Ports | 1 x PS/2, 2 x Antenna, 1 x HDMI, 1 x DP, 1 x RJ-45, 3 x Audio Jacks |
| Internal I/O | |
| USB Headers | 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 (2 ports), 1 x USB 2.0 (2 ports) |
| Fan Headers | 1 x CPU Fan, 2 x System Fan |
| RGB Headers | 2 x Addressable LED, 2 x RGB LED Strip, 1 x CPU Cooler RGB LED |
| Special Features | 1 x TPM, 1 x Serial Port, Q-Flash Plus Button, Clear CMOS Jumper |
| Features | |
| VRM | Digital 5+3 Phases VRM Solution |
| Thermal Design | VRM Thermal Armor Advanced |
| PCIe UD Slot | PCIe 4.0 x16 with 10X Strength & Better Heat Dissipation |
| EZ-Latch | PCIe Slots with Quick Release Design |
| BIOS | 128 Mbit UEFI AMI BIOS |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
