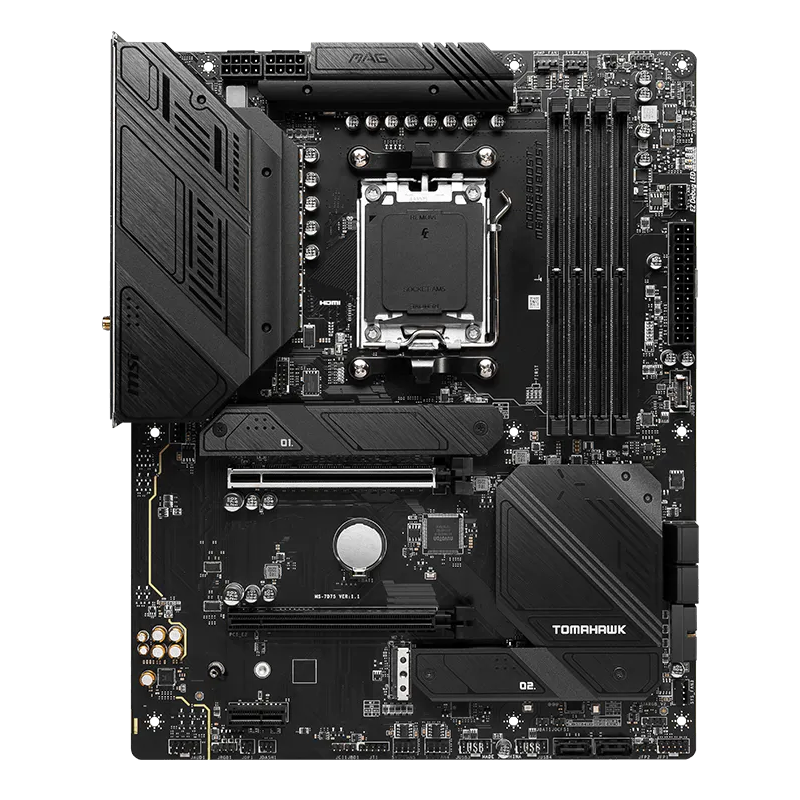

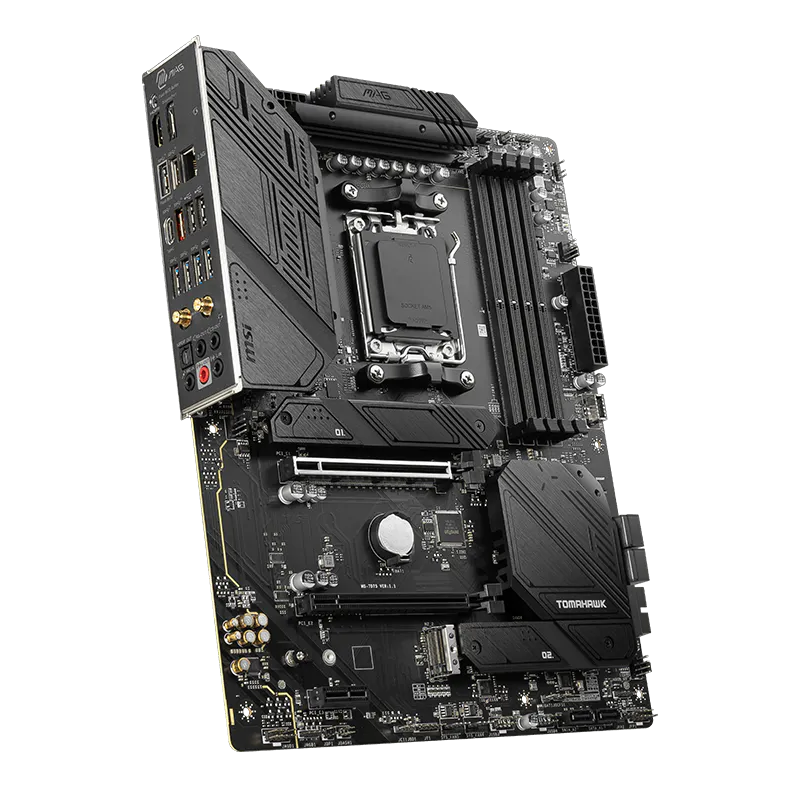

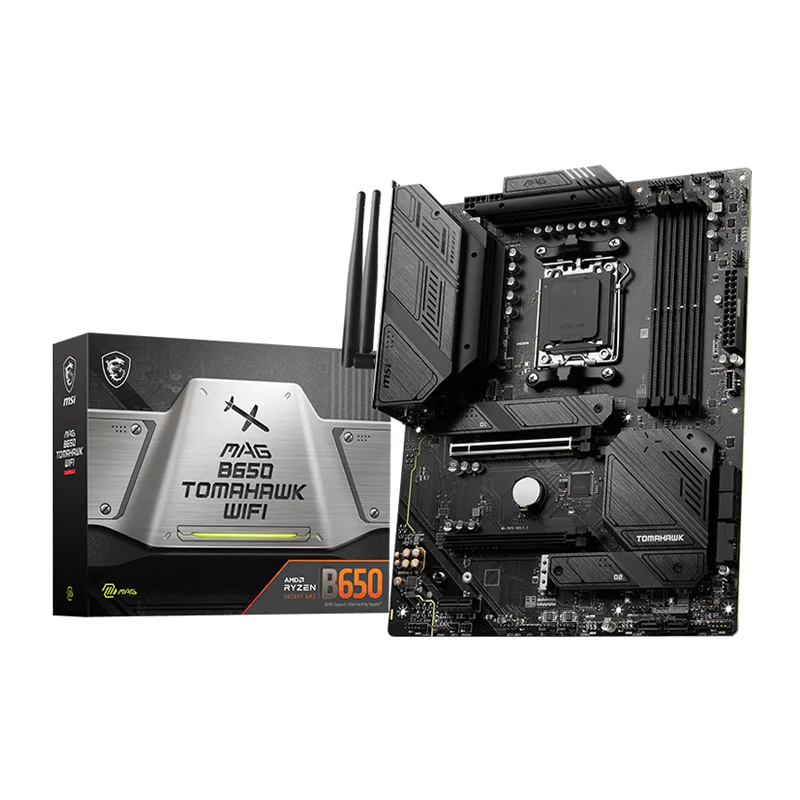

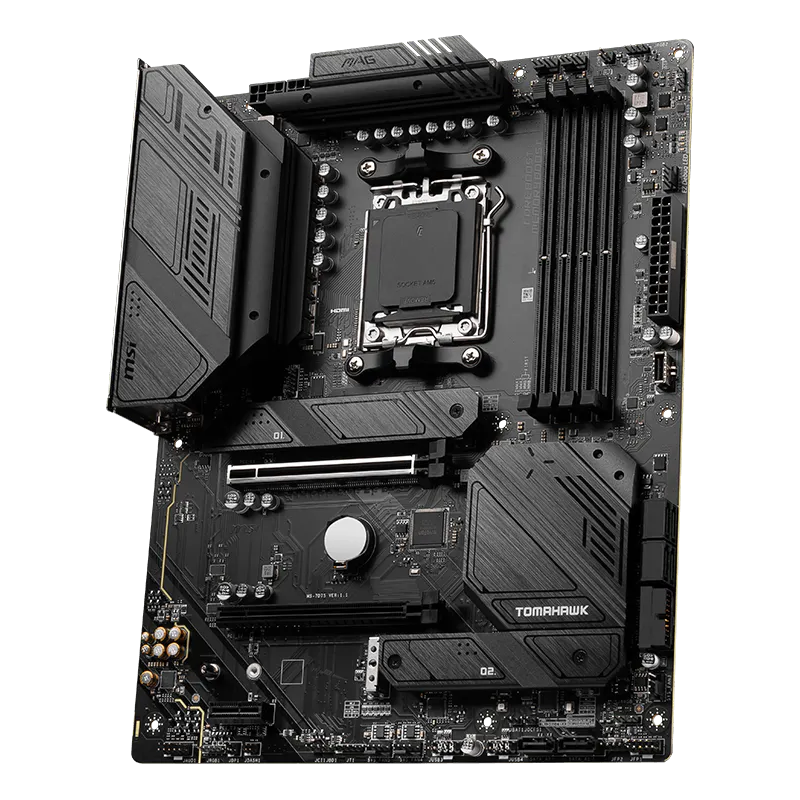

MSI MAG B650 Tomahawk WiFi DDR5 AMD AM5 ATX Motherboard
₨ 68,799
- Supports AMD Ryzen™ 9000/8000/7000 Series: AM5 socket backed by a massive 14+2+1 Duet Rail Power System (80A SPS) with dual 8-pin CPU connectors for ultimate multi-core stability.
- DDR5 Memory up to 7600+ MHz (OC): Four DIMM slots supporting up to 256GB of dual-channel DDR5 with AMD EXPO for extreme memory overclocking headroom.
- Triple M.2 Storage with PCIe 4.0: Three dedicated PCIe 4.0 x4 M.2 slots (two from CPU) plus six SATA 6G ports, with RAID 0/1 support for M.2 NVMe storage.
- Wi-Fi 6E & 2.5Gbps LAN: Integrated AMD Wi-Fi 6E with Bluetooth 5.3 and a high-speed Realtek 2.5Gbps Ethernet port for ultra-fast, low-latency wired and wireless networking.
- USB 20Gbps Type-C & Premium Audio: Rear USB 3.2 Gen 2×2 20Gbps Type-C port, front USB 10Gbps Type-C, and Realtek ALC4080 32-bit/384 kHz 7.1-Channel USB Audio with S/PDIF output.
| Overview | |
| Brand & Model | MSI MAG B650 Tomahawk WiFi |
| Socket & Chipset | AMD AM5 / AMD B650 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | ATX (243.84 mm x 304.8 mm) |
| VRM Design | 14+2+1 Duet Rail Power System (80A SPS) – Dual 8-Pin CPU Connectors |
| Memory | |
| Memory | 4x DDR5 DIMM, Up to 256 GB, 7600+ MHz (OC), AMD EXPO |
| Expansion Slots | |
| Graphics Slots | 1x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x2 (Chipset) |
| Additional PCIe | 1x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Storage | 3x M.2 PCIe 4.0 x4 (2x CPU, 1x Chipset) – Triple M.2 for Ultra-Fast NVMe |
| SATA Ports | 6x SATA 6G (Supports RAID 0/1/10) |
| Networking | |
| Wired | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless & Bluetooth | Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| USB | |

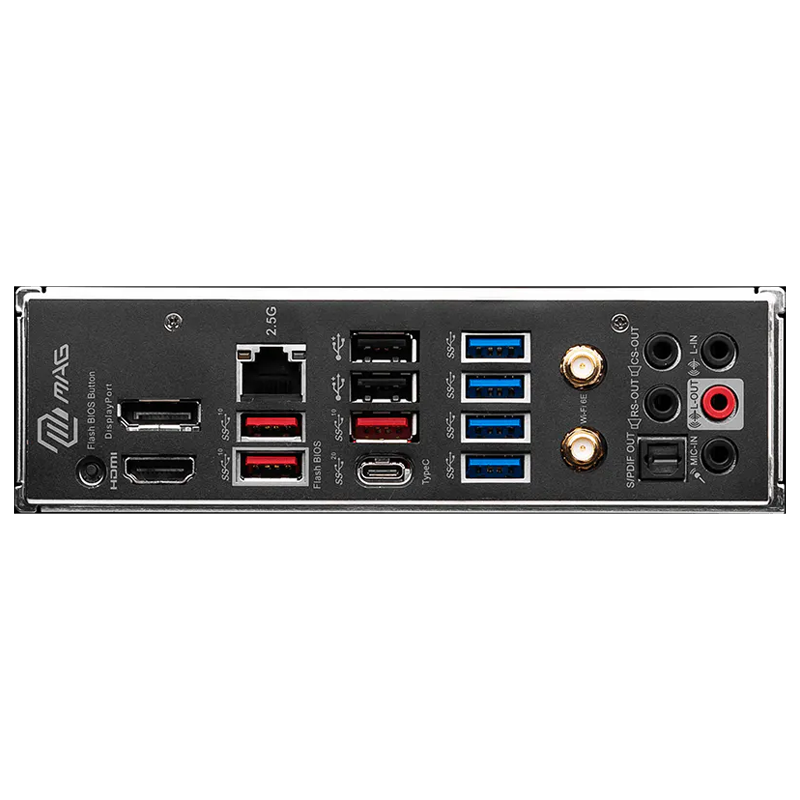

| Rear USB | 1x USB 20Gbps Type-C, 3x USB 10Gbps Type-A, 4x USB 5Gbps Type-A, 2x USB 2.0 |
| Front USB | 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video & Audio | |
| Video Outputs | HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (8K@60Hz) |
| Audio | Realtek ALC4080 32-bit/384 kHz 7.1-Channel USB Audio, S/PDIF |
| Special Features | |
| Special Features | EZ Debug LED, Flash BIOS Button, Extended Heatsinks, M.2 Shield Frozr |
| Warranty | |
| Warranty | 1 Year Local Warranty (Varies by Retailer) |
