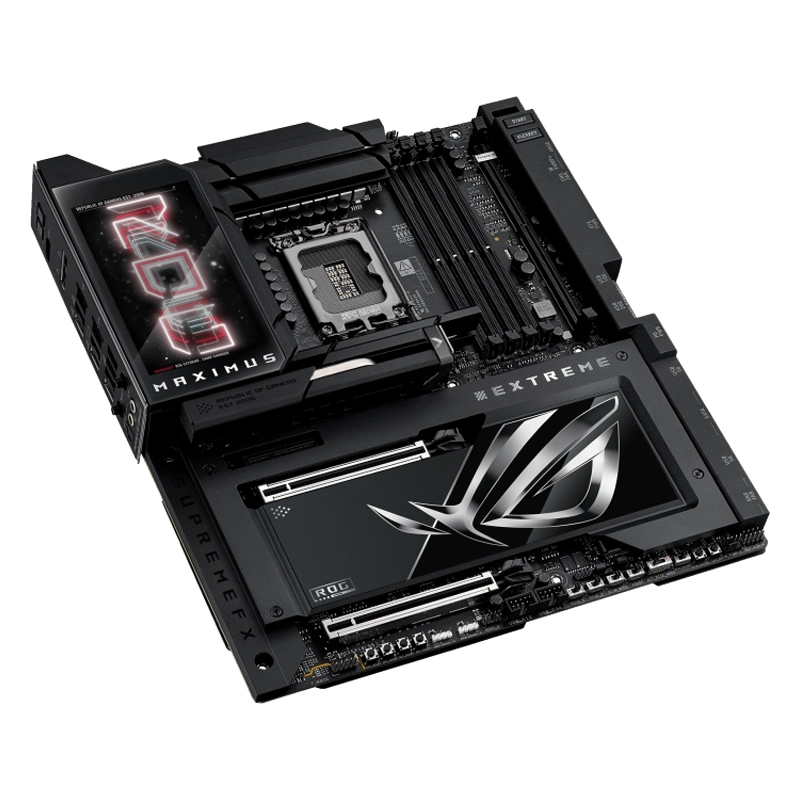

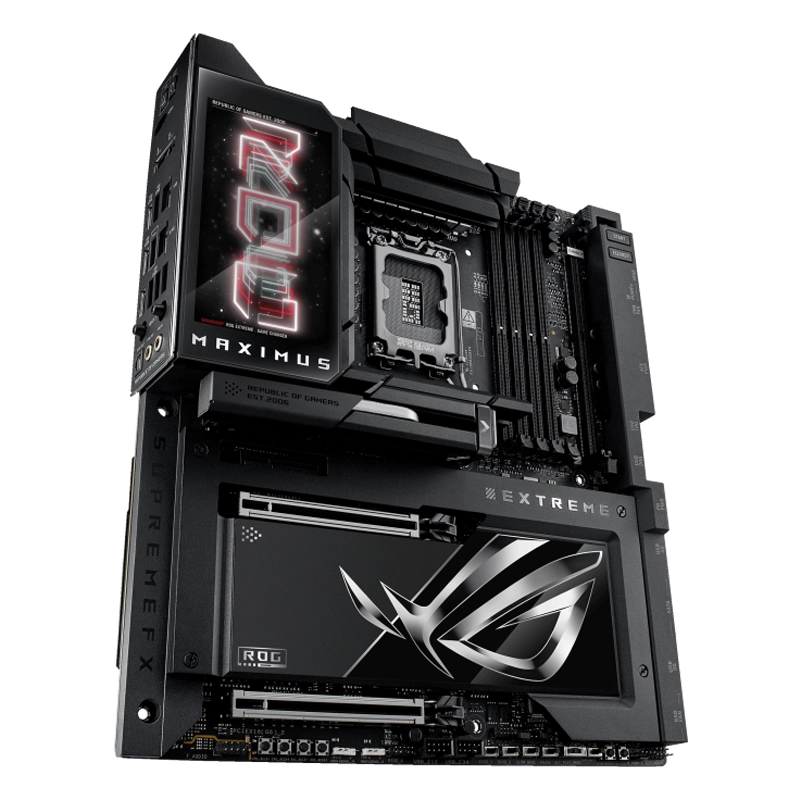

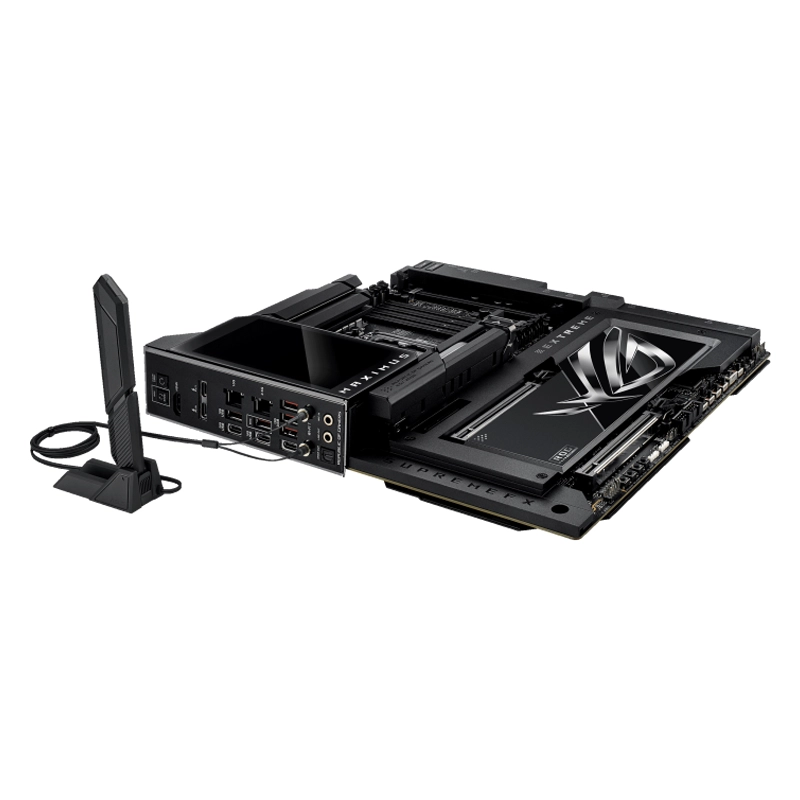

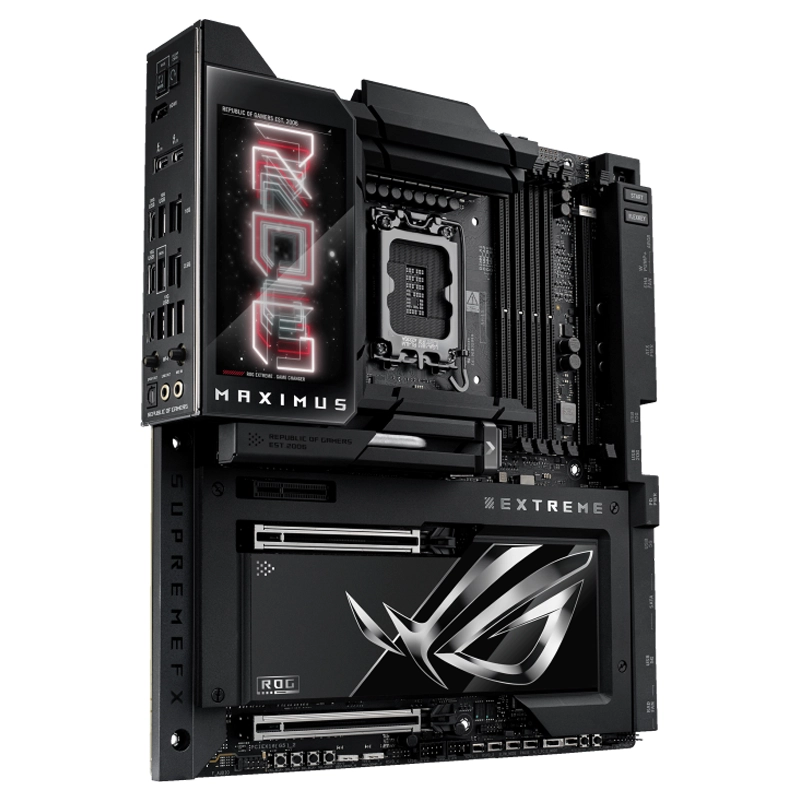

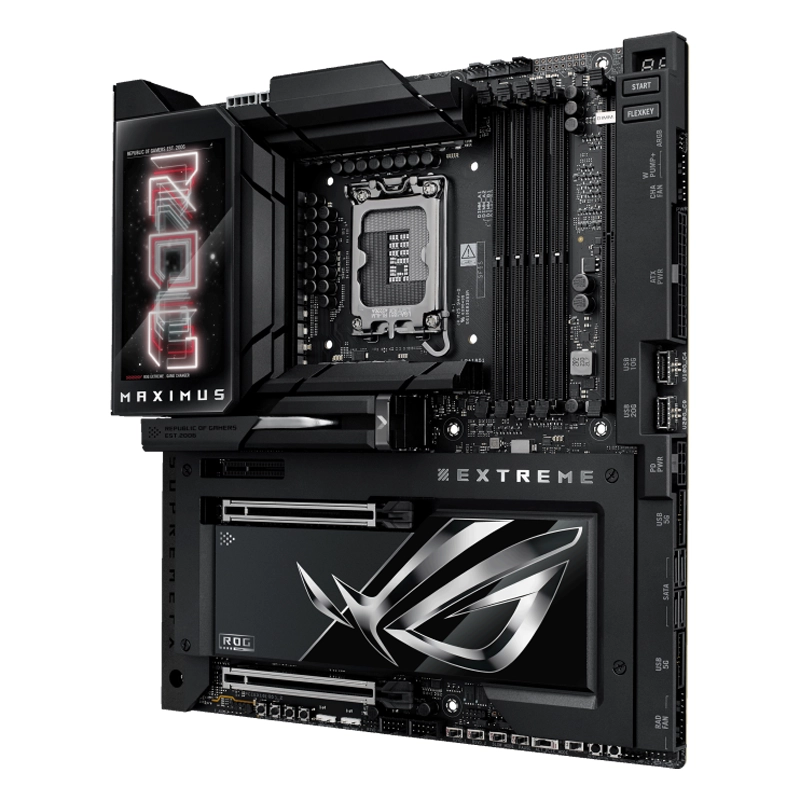

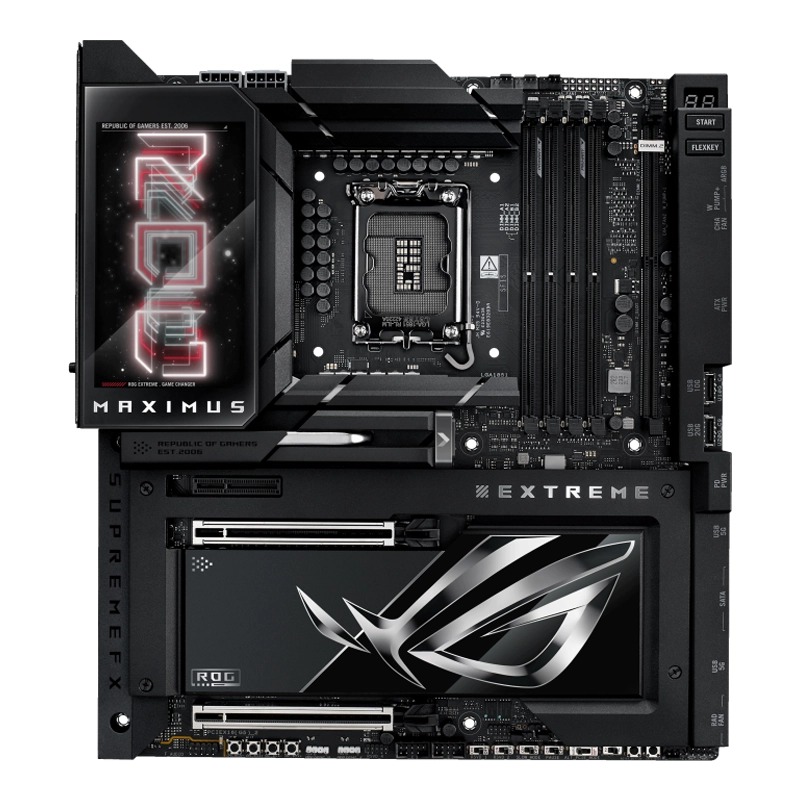

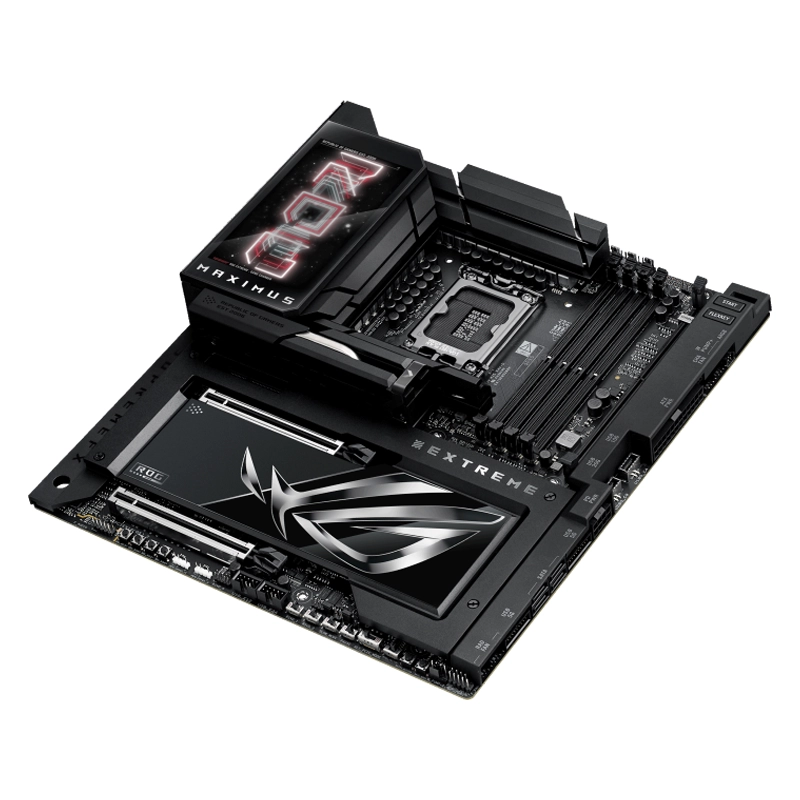

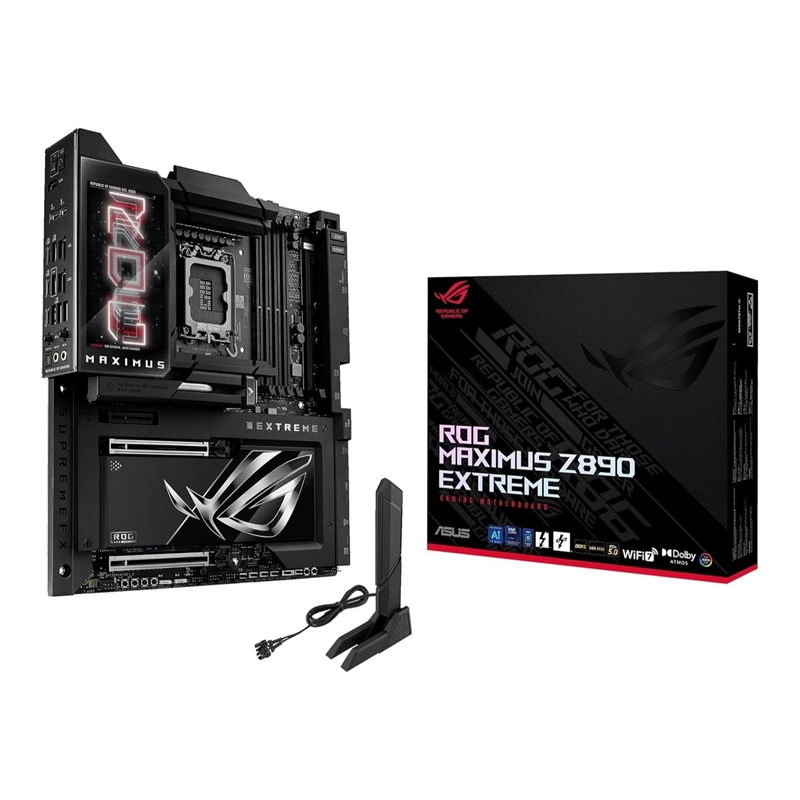

ASUS ROG MAXIMUS Z890 EXTREME Intel Motherboard
₨ 297,999
- Ultimate ROG MAXIMUS Z890 EXTREME E-ATX motherboard with dual Thunderbolt™ 5, supporting Intel Core Ultra Processors (Series 2) on LGA1851 with DDR5 up to 256GB at 9200+ MT/s and NitroPath DRAM Technology
- Six M.2 slots including three PCIe 5.0 x4, ROG Q-DIMM.2 dual M.2 module, dual PCIe 5.0 x16 slots (x16 or x8/x8 or x8/x4/x4), and dual Ethernet (Marvell® 10Gb + Intel 2.5Gb)
- WiFi 7 with 320MHz bandwidth up to 5.8Gbps, Bluetooth 5.4, front USB 20Gbps Type-C® with 60W PD/QC4+, and 5-inch full-color LCD display
- ROG SupremeFX ALC4082 with ESS® ES9219 QUAD DAC, LED-illuminated audio jacks, Extreme OC Kit with LN2 Mode, ProbeIt, and Dual BIOS
Available on backorder
| Overview | |
| Brand | ASUS ROG |
| Series | ROG MAXIMUS Z890 EXTREME |
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | E-ATX (30.5 x 27.7 cm) |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 up to 9200+ MT/s (OC), CUDIMM Support |
| Memory Architecture | Dual Channel |
| Memory Technology | Intel XMP, ASUS AEMPIII, NitroPath DRAM, DIMM Flex, DIMM FIT |
| Expansion & Storage | |
| PCIe Slots | 2 x PCIe 5.0 x16 (x16 or x8/x8 or x8/x4/x4), 1 x PCIe 4.0 x4 |
| M.2 Slots (Onboard) | 2 x PCIe 5.0 x4 (CPU), 1 x PCIe 5.0 x4 shared (CPU), 1 x PCIe 4.0 x4 (CPU) |
| M.2 Slots (DIMM.2) | 2 x PCIe 4.0 x4 via ROG Q-DIMM.2 (Z890) |
| Total M.2 Slots | 6 (3 x PCIe 5.0 + 3 x PCIe 4.0) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| RAID Support | PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Graphics & Audio | |
| Display Outputs | 1 x HDMI 2.1 (8K@60Hz DSC), 2 x Thunderbolt 5 DP Alt (up to 77.4 Gbit/s) |
| Thunderbolt 5 Video | 1 x 8K@60Hz + 2 x 4K@60Hz, or 8K@60Hz DSC (TB4 mode) |
| Audio | ROG SupremeFX ALC4082 7.1 HD Audio, 120dB SNR, ESS ES9219 QUAD DAC |
| Audio Format | Up to 32-Bit/384 kHz Playback (Front Panel) |
| Audio Jacks | LED-Illuminated Audio Jacks |
| Audio Software | Dolby Atmos |
| Networking | |
| Ethernet 1 | 1 x Marvell® AQtion 10Gb Ethernet |
| Ethernet 2 | 1 x Intel 2.5Gb Ethernet with ASUS LANGuard |
| Wireless | Intel Wi-Fi 7 (802.11be) 2×2, 320MHz, up to 5.8Gbps |
| Bluetooth | Bluetooth 5.4 |
| Rear I/O | |
| USB Ports | 2 x Thunderbolt 5 Type-C, 1 x USB 20Gbps Type-C, 7 x USB 10Gbps (5A + 2C) |
| Audio Ports | 2 x LED-Illuminated Audio Jacks, 1 x Optical S/PDIF Out |
| Buttons | BIOS FlashBack™, Clear CMOS |
| Internal I/O | |
| Fan Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 2 x Chassis Fan, 2 x Radiator Fan, 2 x W_PUMP+, 1 x WB_SENSOR |
| Power Connectors | 1 x 24-pin Main, 2 x 8-pin +12V CPU (ProCool II), 1 x 8-pin PCIe (for 60W PD) |
| Front USB | 1 x USB 20Gbps Type-C® (60W PD/QC4+), 1 x USB 10Gbps Type-C®, 4 x USB 5Gbps, 4 x USB 2.0 |
| RGB Headers | 1 x 6-pin ARGB Gen 2 (2 ports), 2 x Addressable Gen 2 |
| Special Headers | 1 x Thermal Sensor, 1 x Alteration PCIe Mode Switch, 1 x LN2 Mode Jumper, 18 x ProbeIt |
| Onboard Buttons | Start, FlexKey, ReTry, Safe Boot, Slow Mode, 4 x BCLK, BIOS Switch |
| Features | |
| Engine | Extreme Engine Digi+ with 10K Black Metallic Capacitors, MicroFine Alloy Chokes |
| Extreme OC Kit | FlexKey, LN2 Mode, ProbeIt (18 points), ReTry, Safe Boot, Start, Slow Mode, BCLK Buttons |
| Dual BIOS | Yes with BIOS Switch Button |
| LCD Display | 5-inch Full-Color LCD Display |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim, Q-Antenna, Q-Code, Q-Connector, Q-Dashboard, Q-LED (4-color), Q-Slot, Q-DIMM.2 |
| Thermal Solution | 3D VC M.2 Heatsink, M.2 Heatsink Backplate, M.2 Heatsinks, Metal Backplate, VRM Heatsinks, Fan Bracket |
| EZ DIY | BIOS FlashBack™, Clear CMOS, CPU Socket Lever Protector, Pre-Mounted I/O Shield, SafeSlot, SafeDIMM, Q-Connector |
| AI Features | AI Overclocking Guide, AI Cooling II, NPU Boost, ASUS AI Advisor |
| Lighting Control | Aura Sync (4 x Addressable Gen 2), Aura Creator, 5″ LCD Display |
| ROG M.2 PowerBoost | Dedicated power delivery for M.2 slots |
| Software Suite | Armoury Crate, Fan Xpert 4, GameFirst, TurboV Core, AIDA64 Extreme (1yr), HWiNFO, Thunderbolt™ Share |
| BIOS | 2 x 256Mb (512Mb total) UEFI AMI BIOS |
| Operating System | Windows 11 (22H2+) |
| Included Accessories | |
| In the Box | 1 x ROG Q-DIMM.2 with Heatsink, 2 x ROG Weave SATA 6G Cable Packages, 1 x 1-to-3 ARGB Splitter, 1 x 1-to-2 ARGB Splitter, 2 x 1-to-4 Fan Splitters, 1 x 3-in-1 Thermistor Cables, 1 x DDR5 Fan Holder, 2 x Thermal Pads for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Q-Connector, 1 x ROG Logo Plate Sticker, 1 x ROG Screwdriver, 1 x ROG Stickers, 1 x ROG VIP Card, 2 x M.2 Q-Slide Packages, 6 x M.2 Backplate Rubbers, 1 x ROG Bottle Opener, 1 x USB Drive with Utilities and Drivers, Quick Start Guide |
| Brand | Asus |
|---|
