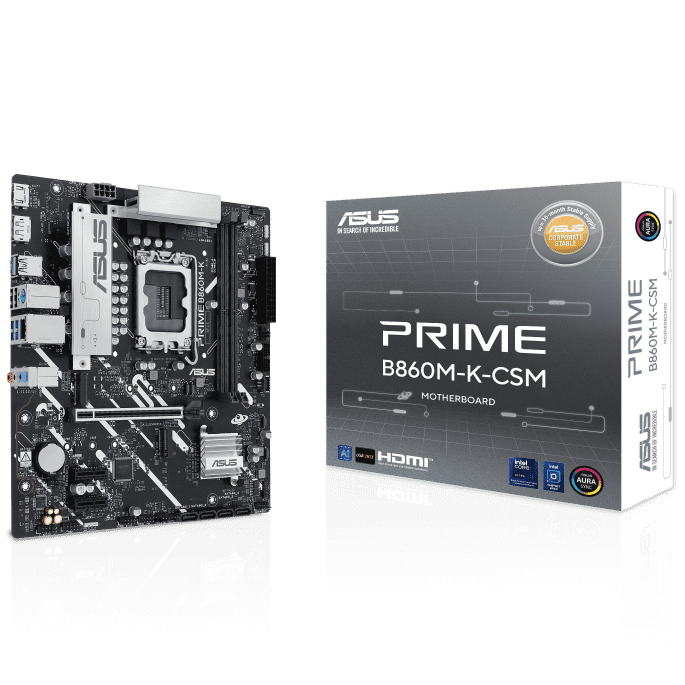

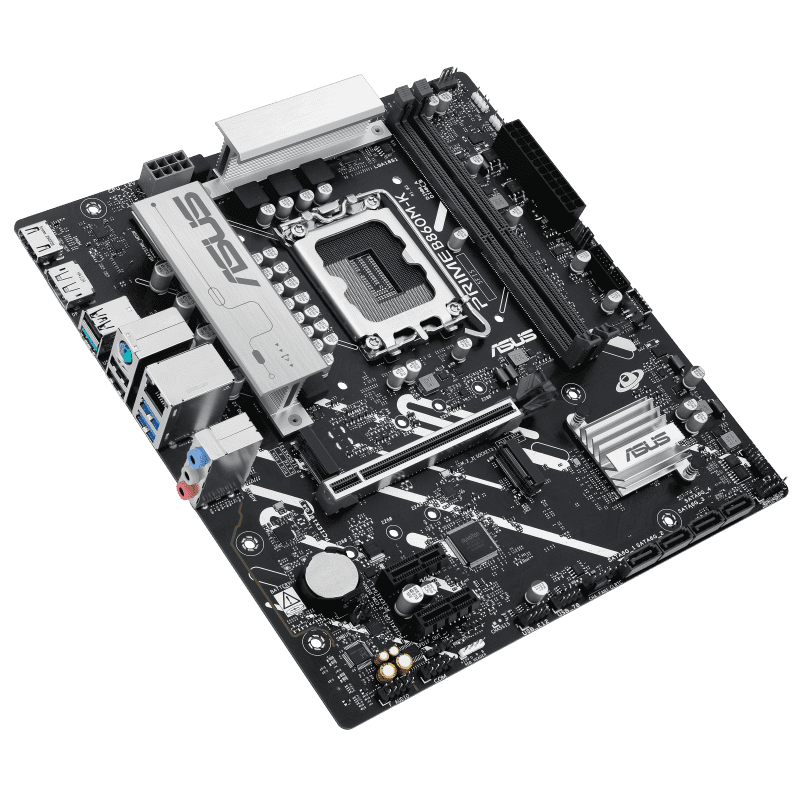

ASUS PRIME B860M-K-CSM Intel Motherboard
₨ 44,999
Supports Intel Core Ultra Processors (Series 2) on LGA1851 socket with DDR5 memory up to 128GB at 8800+ MT/s
One PCIe 5.0 x4 M.2 slot and one PCIe 4.0 x4 M.2 slot for next-gen and high-speed NVMe storage
Rear USB 10Gbps Type-A, front USB 5Gbps Type-C®, Realtek 2.5Gb Ethernet, DisplayPort 1.4, and HDMI 2.1
ASUS Enhanced Memory Profile III (AEMPIII), DIMM Fit, and comprehensive VRM heatsink for rock-solid stability
| Overview | |
| Brand | ASUS |
| Model | PRIME B860M-K-CSM |
| Chipset | Intel B860 |
| Socket | LGA 1851 |
| Form Factor | micro-ATX (24.4 x 22.2 cm) |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory | |
| Memory Slots | 2 x DIMM |
| Max Memory | 128 GB |
| Memory Speed | DDR5 up to 8800+ MT/s (OC), CUDIMM Support |
| Memory Architecture | Dual Channel |
| Memory Technology | Intel XMP, ASUS AEMPIII, DIMM Fit |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 |
| M.2 Slots | 1 x PCIe 5.0 x4 (CPU), 1 x PCIe 4.0 x4 (B860) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| Graphics & Audio | |
| Display Outputs | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| Networking | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Rear I/O | |
| USB Ports | 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 3 x USB 2.0 Type-A |
| Other Ports | 1 x PS/2 Combo, 3 x Audio Jacks |
| Internal I/O | |
| Front USB | 1 x USB 5Gbps Type-C®, 2 x USB 5Gbps (header), 4 x USB 2.0 (headers) |
| Fan Headers | 1 x CPU Fan, 2 x Chassis Fan |
| RGB Headers | 2 x Addressable Gen 2, 1 x Aura RGB |
| Special Headers | 1 x COM Port, 1 x S/PDIF Out, 1 x SPI TPM |
| Features | |
| Protection | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core+, Stainless-Steel Back I/O) |
| ASUS Q-Design | Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot |
| Thermal Solution | VRM Heatsink Design, ProCool |
| Lighting Control | Aura Sync (Aura RGB + Addressable Gen 2) |
| Software Suite | Armoury Crate, ASUS AI Advisor, ASUS DriverHub |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
| Included Accessories | |
| In the Box | 2 x SATA 6Gb/s Cables, 1 x I/O Shield, 1 x M.2 Anchor Package, Quick Start Guide, ACC Express Activation Key Card |
| Brand | Asus |
|---|
Brand
Asus
1 review for ASUS PRIME B860M-K-CSM Intel Motherboard
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
At Amir Traders, we aim to provide a smooth and hassle-free shopping experience to our valued customers. We offer fast, secure, and nationwide delivery services across Pakistan.
All orders are typically processed and dispatched within 1 to 2 working days after confirmation. Once shipped, delivery timelines vary depending on your location, usually taking between 2 to 5 business days. For customers in major cities, delivery is often quicker.
We currently offer Cash on Delivery (COD) for your convenience, allowing you to pay when the product arrives at your doorstep. Our packaging is done with care to ensure your products reach you safely and in perfect condition.
If you have any questions regarding your delivery or would like to track your order, feel free to contact our support team anytime.
