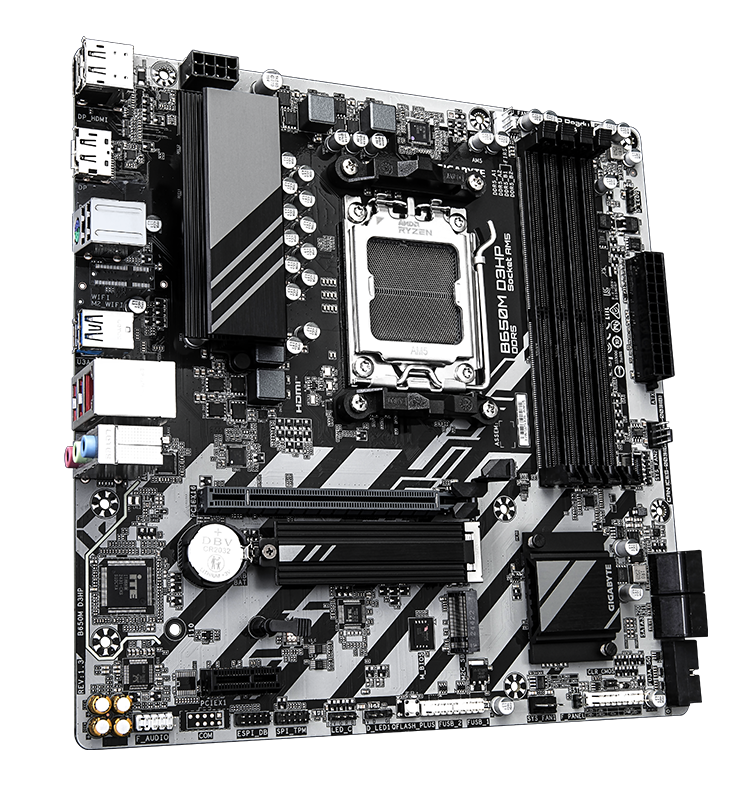

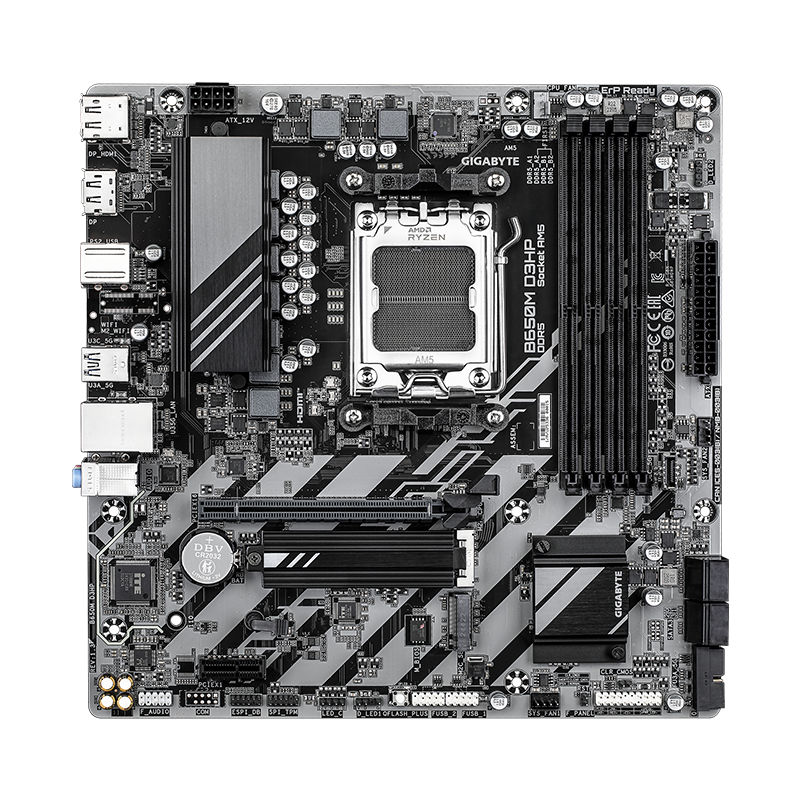

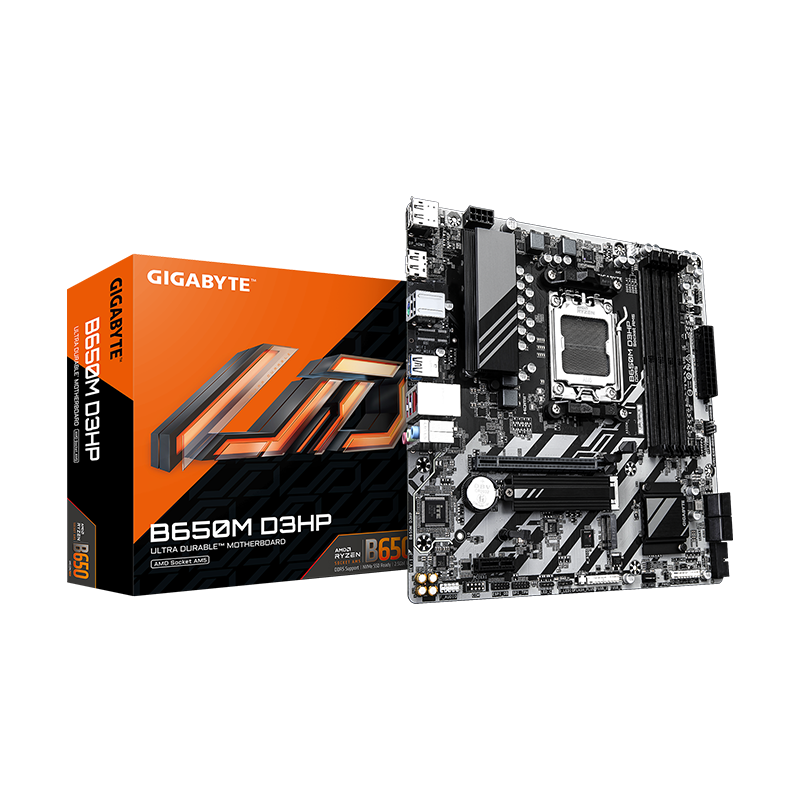

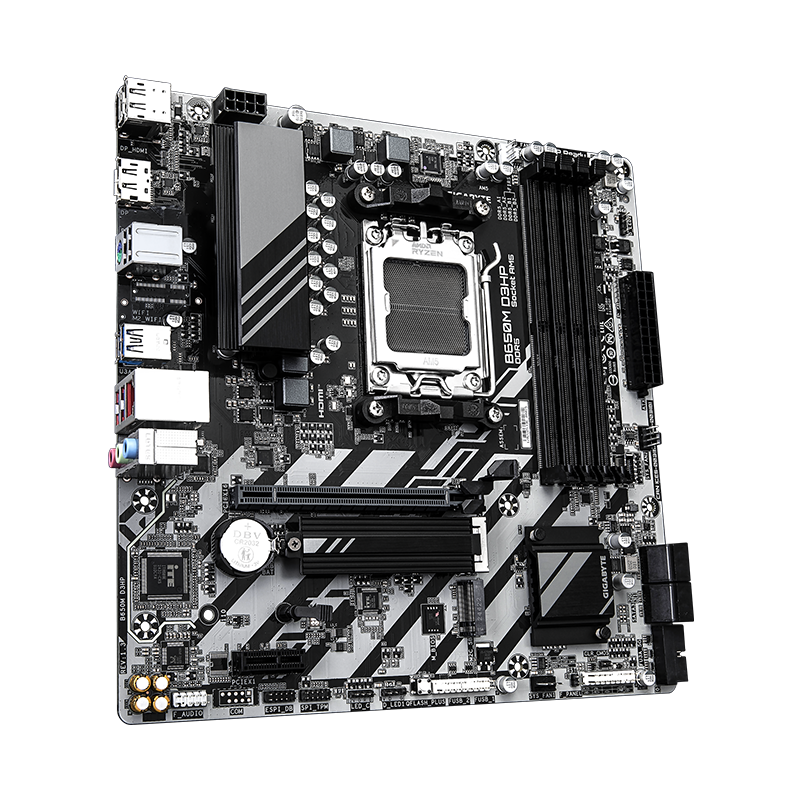

GIGABYTE B650M D3HP AM5 Motherboard (Rev. 1.3)

GIGABYTE B650M D3HP mATX AM5 Motherboard (Rev. 1.3) - Image 2

Click to enlarge

GIGABYTE B650M D3HP mATX AM5 Motherboard (Rev. 1.3)

Name: GIGABYTE B650M D3HP mATX AM5 Motherboard (Rev. 1.3)
SKU: 48061
Price: 39999 PKR
Availability: InStock

₨ 39,999

5+2+2 Phases Digital VRM & AM5 Socket

Supports AMD Ryzen 7000, 8000 & 9000 Series processors with Low RDS(on) MOSFETs for stable power delivery and enhanced performance.

Dual Channel DDR5 – 4 SMD DIMMs, EXPO & XMP

Supports up to 256GB DDR5 with overclocking to 8000 MT/s and beyond. Compatible with both AMD EXPO and Intel XMP memory profiles.

PCIe 4.0 x16 EZ-Latch & Dual M.2 Connectors

Quick-release PCIe x16 slot for easy GPU removal. Two PCIe 4.0 M.2 slots for high-speed NVMe storage with 4 SATA 6Gb/s ports.

2.5GbE LAN, Dual DP + HDMI & Q-Flash Plus

Fast 2.5GbE networking with Realtek controller. Triple display support via 2x DisplayPort and HDMI. BIOS update without CPU, memory, or GPU.

Compare

Add to wishlist

Chat with us to Confirm Availability & Updated Price

Categories: AMD Motherboards, Motherboards Tags: AM5 DDR5 Motherboard, Best B650M Motherboard Pakistan, Buy GIGABYTE B650M D3HP AM5 Motherboard Pakistan, GIGABYTE 2.5GbE LAN, GIGABYTE AMD B650 DDR5, GIGABYTE B650M D3HP mATX, GIGABYTE B650M D3HP Price in Pakistan, GIGABYTE B650M D3HP Price Karachi Lahore Islamabad, GIGABYTE B650M D3HP Rev 1.3, GIGABYTE EZ-Latch, Woocommerce Motherboard Product Tags SEO

Description

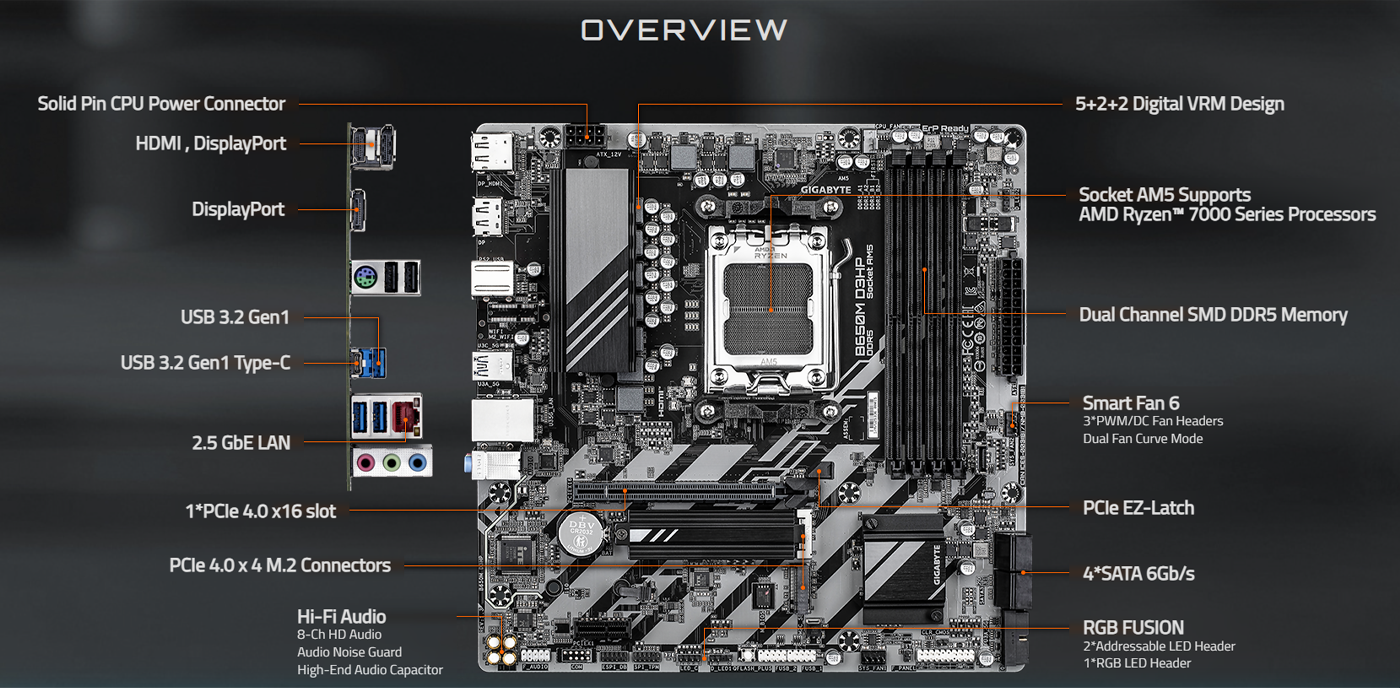

B650M D3HP

▸ AMD Socket AM5: Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
▸ Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
▸ Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
▸ SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
▸ EZ-Latch: PCIe x16 Slot with Quick Release Design
▸ Fast Networks: 2.5GbE LAN
▸ Extended Connectivity: 2*DP, HDMI
▸ Smart Fan 6: Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
▸ Q-Flash Plus: Update BIOS Without Installing CPU, Memory and Graphics Card

Durable Performance

Future Connectivity

Easy Friendly

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

* Photo for reference only.

EXPO & XMP Support

DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond*

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN. Achieve lightning-fast speeds, minimal lag, and unbeatable performance to dominate the competition.

PCIe 4.0 Hardware Design

GIGABYTE B650 Motherboards are ready for PCIe 4.0 devices with low-impedance PCB for maximum performance.

Hi-Fi Audio

High-End Audio Capacitors + Audio Noise Guard for crystal-clear, high-fidelity sound.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

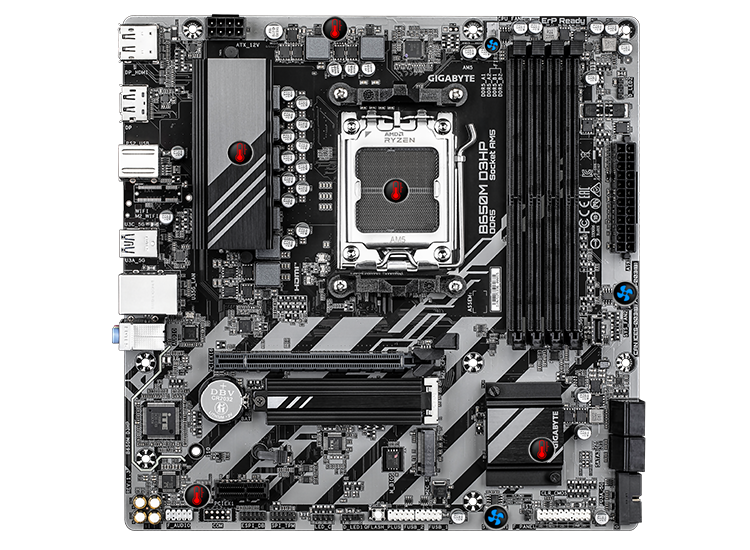

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
Precision Control: Multiple temperature/fan speed control points for precise fan curve
Dual Curve Mode: Slope/Stair dual mode for different user scenario
Fan Stop: Fan can stop completely below users’ specified temperature point

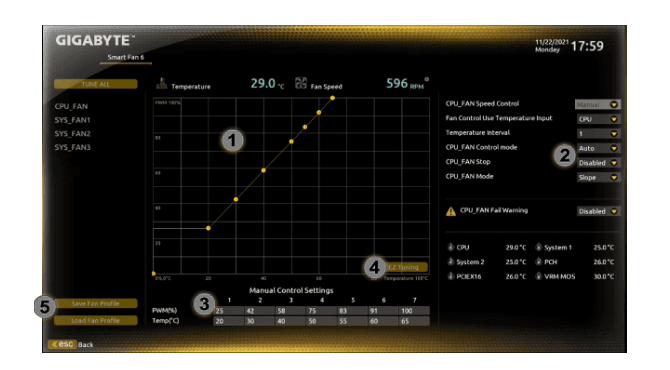

Smart Fan 6 BIOS UI

Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input: For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

Note: The picture is for reference and may vary by model.

EZ-Latch

Unlock the latch of the PCIe slot easily when removing the graphics card in the PCIe slot.

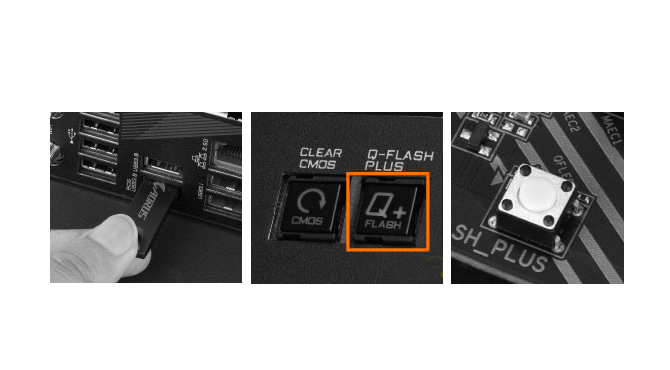

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

STEP 1: Plug 24pin & 8pin power supply cable on motherboard
STEP 2: Download motherboard BIOS file, rename to “gigabyte.bin”, save to USB flashdrive, plug into Q-Flash USB port
STEP 3: Press Q-Flash Plus button, motherboard updates BIOS automatically.

Q-Flash Plus

GIGABYTE Control Center

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides a newly designed intuitive user interface to control all essential functions.

Unified software platform for all Gigabyte supported products
Intuitive user interface for an eased experience
Modularized control components only for installed hardware
Auto update function to keep system up to date

Specifications

CPU & Chipset▾

CPU: AMD Socket AM5, support for AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset: AMD B650

Memory▾

Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Support for AMD EXPO™ and Intel® XMP

Onboard Graphics & Audio▾

Graphics: Integrated AMD Radeon™ Graphics support
– 2 x DisplayPorts (max 3840×2160@144Hz)
– 1 x HDMI port (max 4096×2160@60Hz)
– Support up to triple-display
Audio: Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel

LAN & Expansion Slots▾

LAN: Realtek® 2.5GbE LAN chip (2.5/1 Gbps/100 Mbps)
PCIe: 1 x PCIe x16 slot (CPU) — PCIe 4.0 x16/x8/x4 depending on CPU
1 x PCIe x1 slot (Chipset) — PCIe 3.0 x1

Storage Interface▾

1 x M.2 connector (M2A_CPU) — Socket 3, M key, PCIe 4.0 x4/x2 (2580/2280)
1 x M.2 connector (M2C_SB) — Socket 3, M key, PCIe 4.0 x4/x2 (22110/2280)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 10 support for NVMe and SATA storage devices

USB▾

CPU: 1 x USB Type-C® (back, USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 (back), 1 x USB 2.0/1.1 (back)
Chipset: 2 x USB 3.2 Gen 1 (back), 1 x USB Type-C® (internal, USB 3.2 Gen 1), 2 x USB 3.2 Gen 1 (internal), 5 x USB 2.0/1.1 (1 back, 4 internal)

Internal & Back Panel Connectors▾

Internal I/O: 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 1 x RGB LED strip header, 2 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x TPM header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper

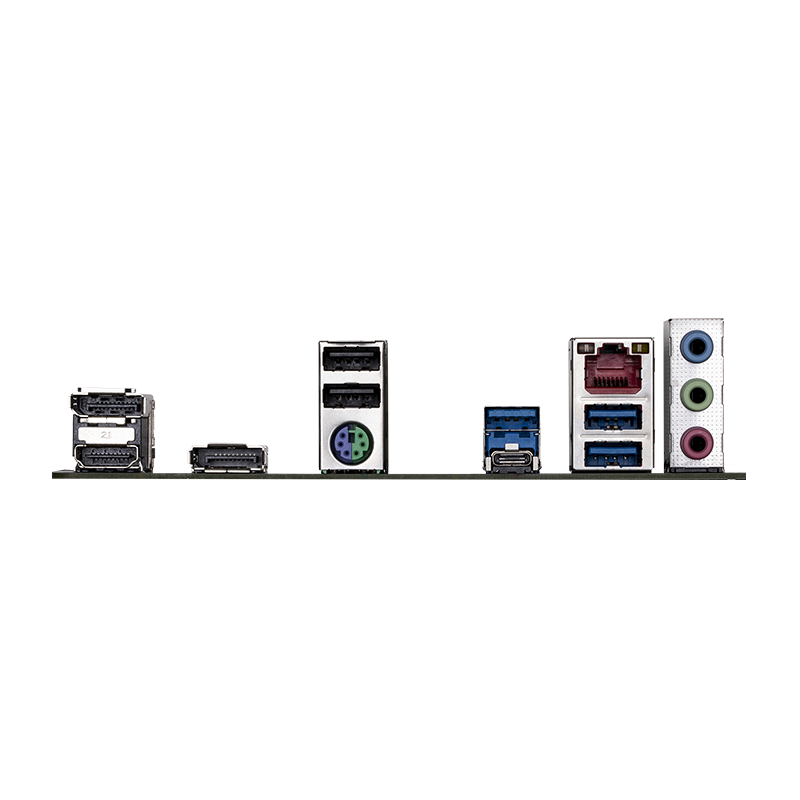

Back Panel: 1 x PS/2 keyboard/mouse port, 1 x USB Type-C® (USB 3.2 Gen 1), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x HDMI, 2 x DisplayPorts, 1 x RJ-45 port, 3 x audio jacks

I/O Controller & H/W Monitoring▾

I/O Controller: iTE® I/O Controller Chip
H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control

BIOS, Features & Form Factor▾

BIOS: 1 x 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
Bundled Software: Norton® Internet Security (OEM)
OS: Windows 11 64-bit, Windows 10 64-bit
Form Factor: Micro ATX — 24.4cm x 24.4cm

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.

* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.

* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
