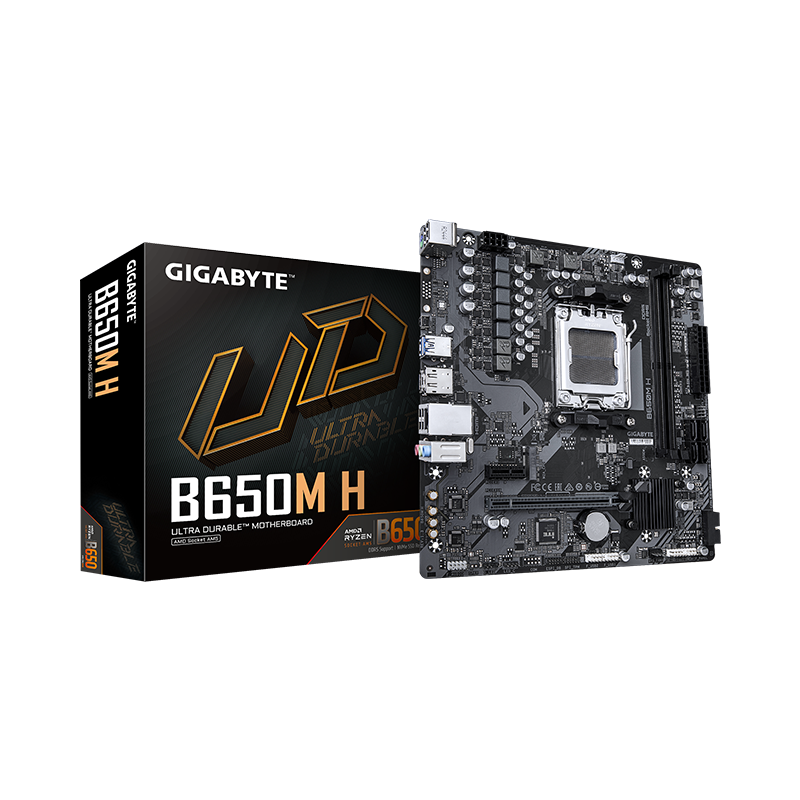

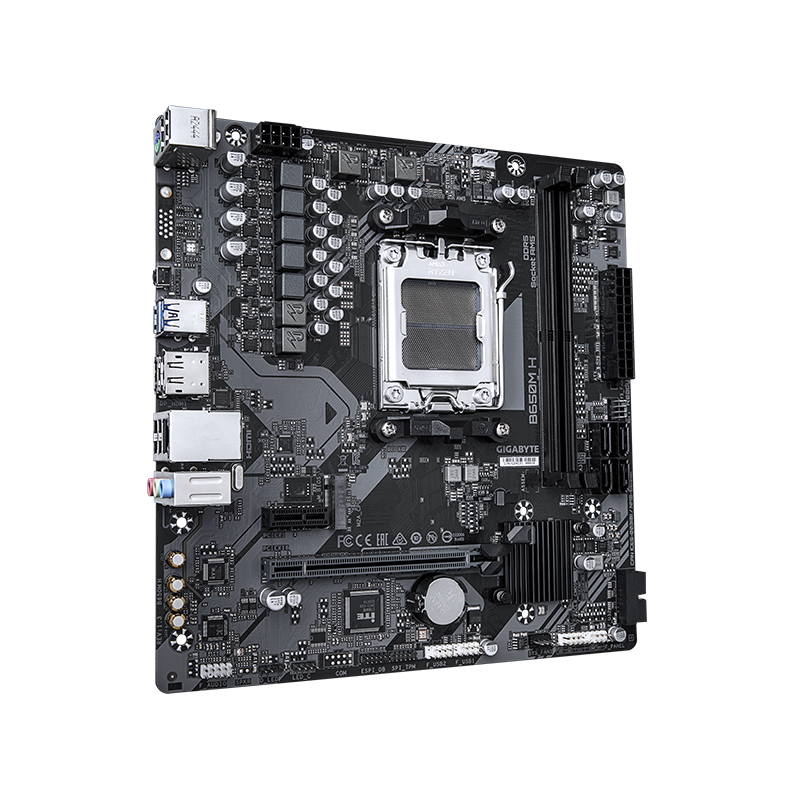

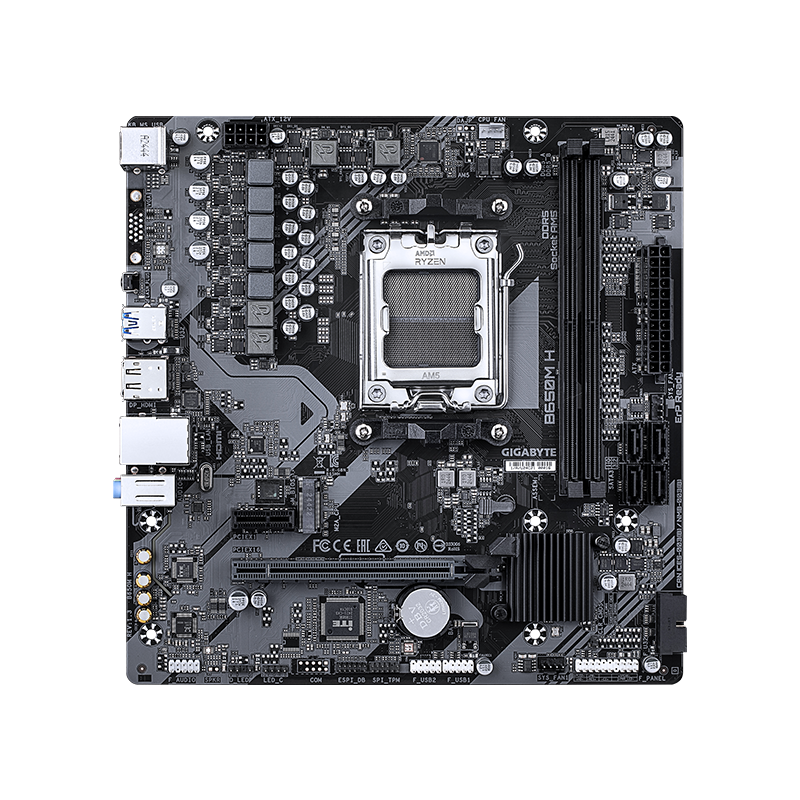

GIGABYTE B650M H AM5 mATX Motherboard
₨ 32,999

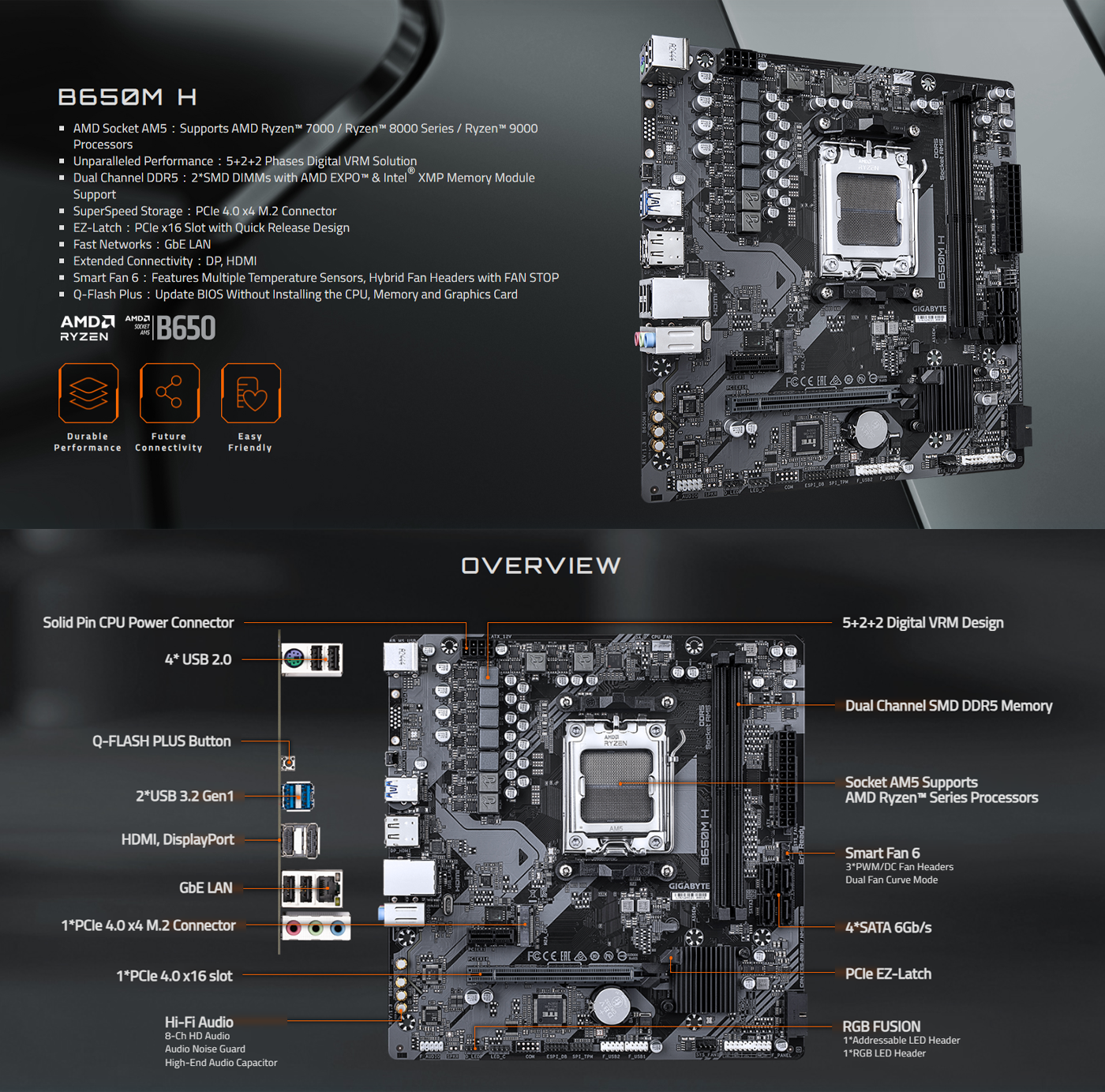

- AMD B650 Chipset – AM5 Socket – Supports Ryzen 9000/8000/7000 Series with 5+2+2 phases digital VRM and low RDS(on) MOSFETs for reliable power delivery
- Dual Channel DDR5 – 2 SMD DIMMs, Up to 128GB, 7200+ MT/s (OC) – AMD EXPO and Intel XMP memory support with low impedance PCB for maximum PCIe 4.0 performance
- PCIe 4.0 x4 M.2 Connector (2580/2280) – SuperSpeed NVMe storage with EZ-Latch PCIe x16 slot quick release design; 4x SATA 6Gb/s with RAID 0, 1, 10
- Dual Display Output – DisplayPort 1.4 (4K 144Hz) + HDMI 2.1 (4K 60Hz) – Supports integrated graphics with HDCP 2.3; up to 3 simultaneous displays
- Smart Fan 6 + Q-Flash Plus + Hi-Fi Audio – Multiple temperature sensors, hybrid fan headers with FAN STOP, BIOS update without CPU/Memory/GPU, high-end audio capacitors with Audio Noise Guard
| Overview | |
| Product Name | GIGABYTE B650M H AM5 mATX Motherboard |
| Brand | GIGABYTE |
| Series | Ultra Durable Series |
| Model | B650M H |
| Form Factor | Micro ATX (23.0 x 22.5 cm) |
| Operating System | Windows 11 64-bit | Windows 10 64-bit |
| Condition | New |
| CPU & Chipset | |
| Socket | AMD Socket AM5 |
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen 7000 / 8000 / 9000 Series |
| VRM | 5+2+2 Phases Digital VRM with Low RDS(on) MOSFETs |
| PCB | Low Impedance PCB for PCIe 4.0 Signal Integrity |
| Memory | |
| Memory Slots | 2 x DDR5 SMD DIMM (Dual-Channel) |
| Max Capacity | 128 GB (64 GB Single DIMM) |
| Memory Support | DDR5 7200(OC) – 4400 MT/s | AMD EXPO | Intel XMP |
| Onboard Graphics | |
| DisplayPort | 1 x DP 1.4 – 3840×2160 @ 144 Hz |
| HDMI | 1 x HDMI 2.1 – 4096×2160 @ 60 Hz with HDCP 2.3 |
| Max Simultaneous Displays | Up to 3 |
| Expansion Slots | |
| PCIe x16 Slot | 1 x PCIe 4.0 x16 (CPU) – EZ-Latch Quick Release Design |
| PCIe x1 Slot | 1 x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Connector | 1 x M.2 (2580/2280) – PCIe 4.0 x4 NVMe (CPU) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | NVMe: RAID 0, 1, 10 | SATA: RAID 0, 1, 10 |
| LAN & Audio | |
| LAN | Realtek GbE LAN with Bandwidth Management |
| Audio | Realtek Audio CODEC – 7.1-Channel HD Audio (2/4/5.1/7.1) |
| Audio Features | High-End Audio Capacitors | Audio Noise Guard |
| USB Ports | |
| Rear USB | 2 x USB 3.2 Gen 1 | 4 x USB 2.0/1.1 |
| Internal USB | 2 x USB 3.2 Gen 1 Header | 4 x USB 2.0/1.1 Headers |
| Back Panel Connectors | |

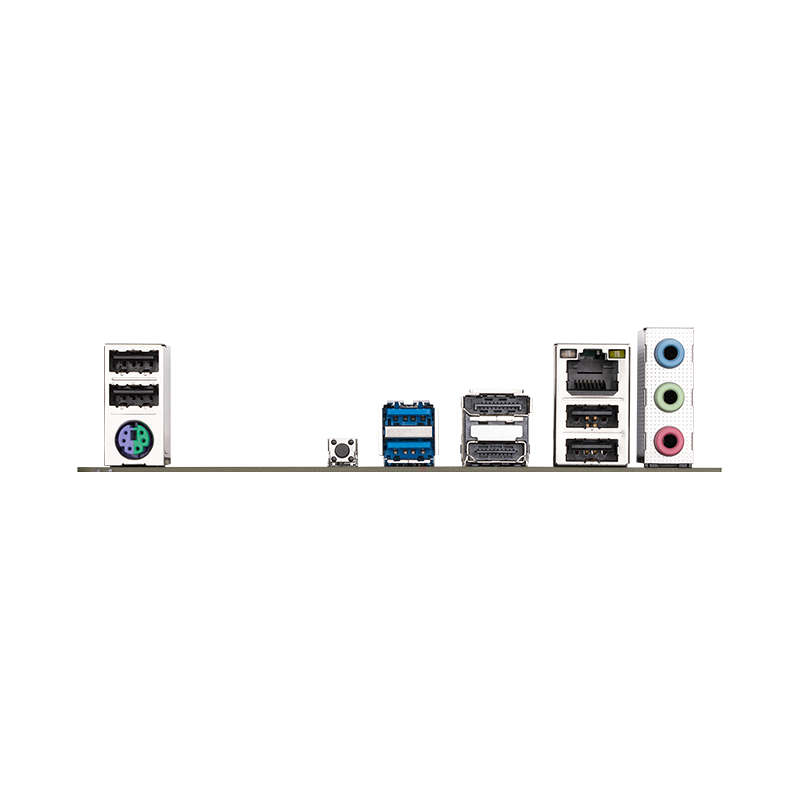

| Back Panel Ports | 4 x USB 2.0 | 1 x PS/2 KB/Mouse | 1 x Q-Flash Plus Button | 2 x USB 3.2 Gen 1 | 1 x DisplayPort | 1 x HDMI | 1 x RJ-45 | 3 x Audio Jacks |
| Special Features | |
| Smart Fan 6 | Multiple Temperature Sensors | Hybrid Fan Headers | FAN STOP |
| Q-Flash Plus | Yes – Update BIOS Without CPU, Memory, and Graphics Card |
| EZ-Latch | PCIe x16 Slot Quick Release Design |
| RGB | Addressable LED Strip Header | RGB LED Strip Header |
| Software | GIGABYTE Control Center (GCC) | Norton Internet Security (OEM) |
| BIOS | 256 Mbit Flash | UEFI AMI BIOS | Q-Flash |
| In The Box | |
| Package Contents | GIGABYTE B650M H Motherboard | I/O Shield | SATA Cables | User Documentation |
