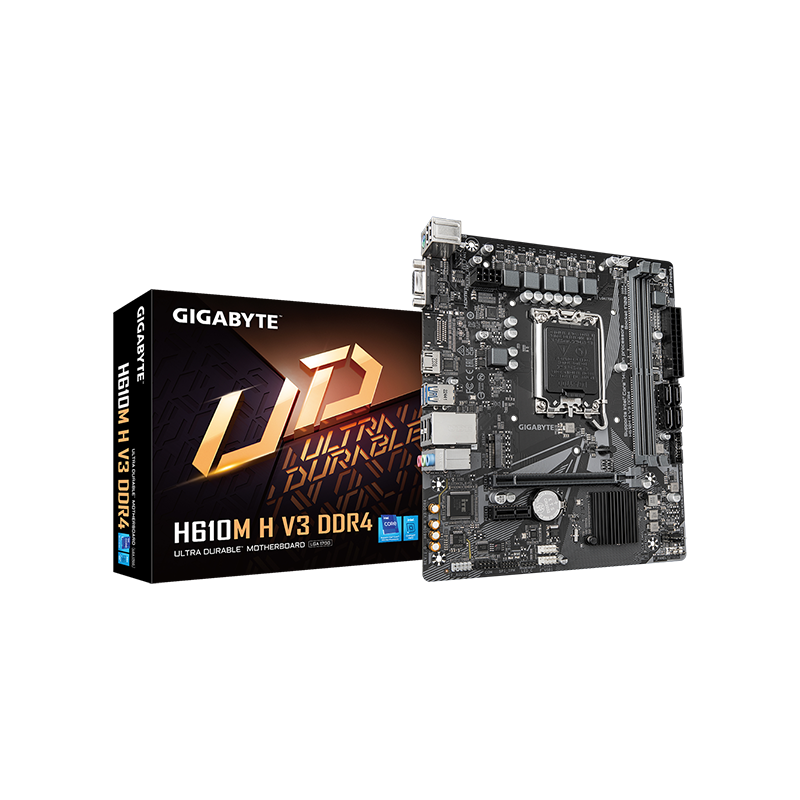

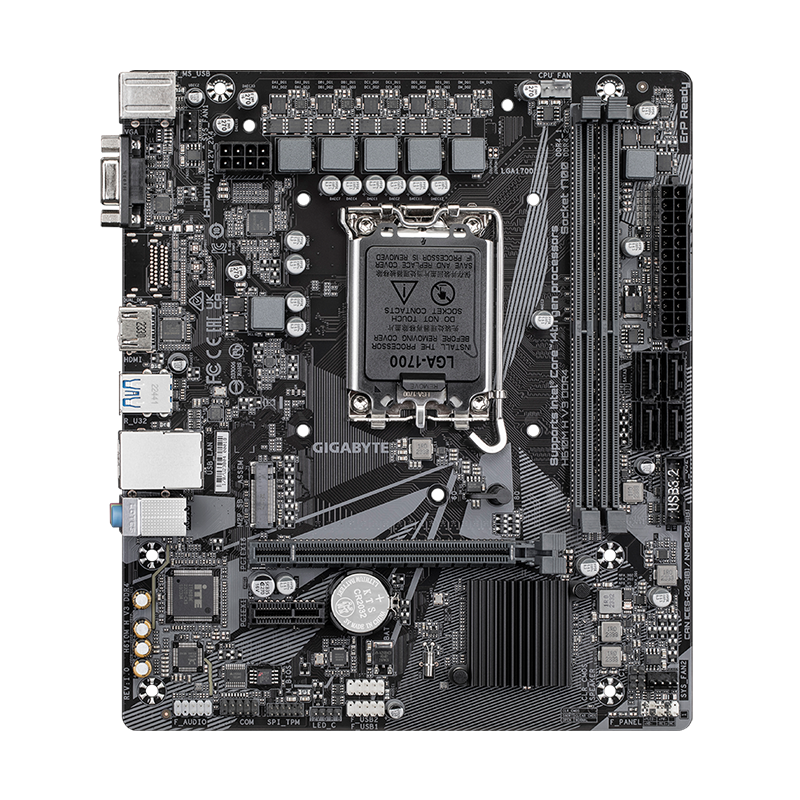

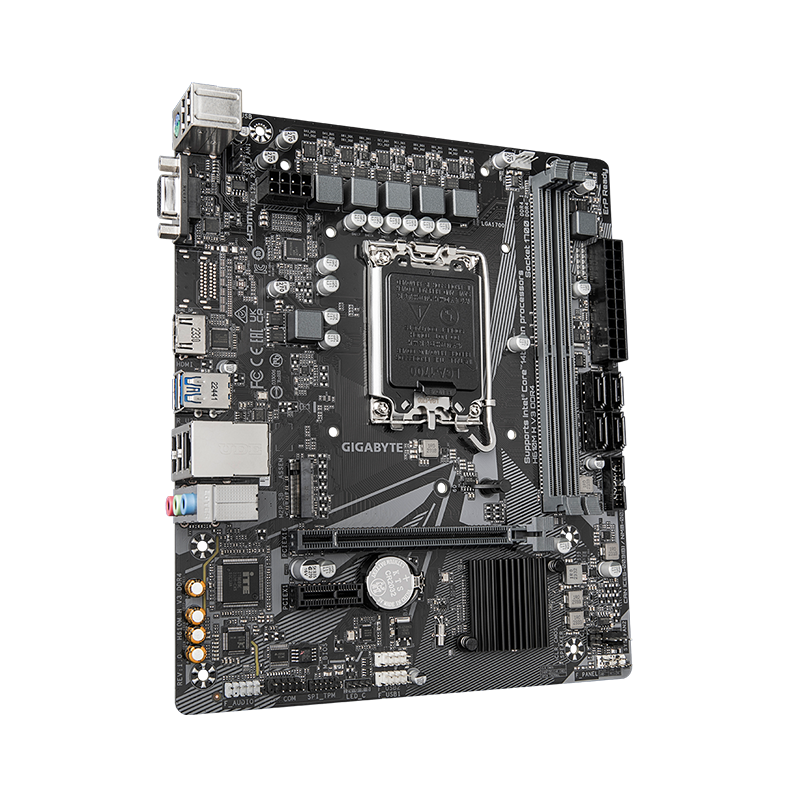

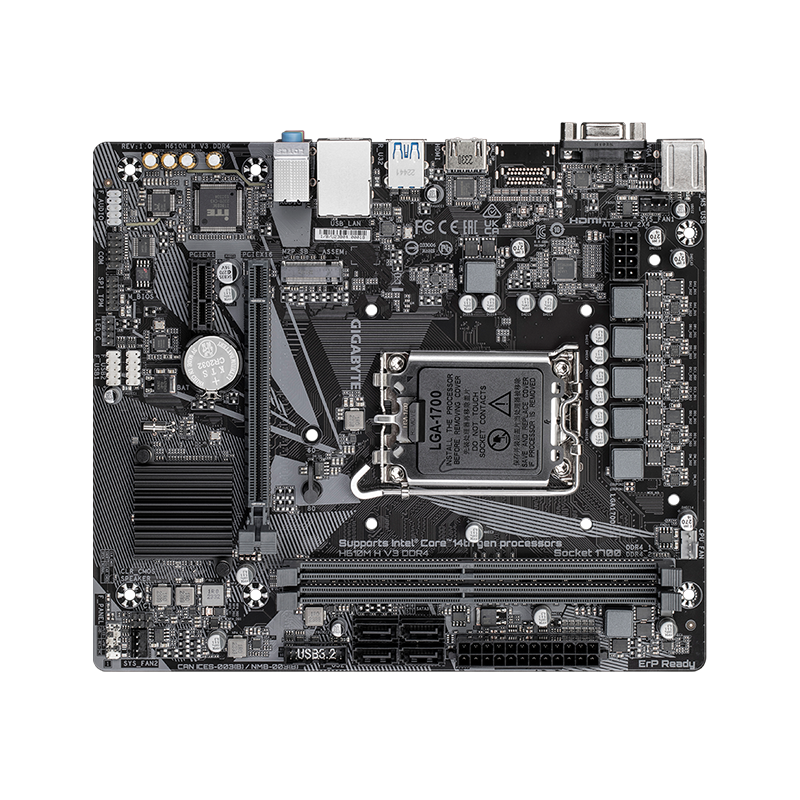

GIGABYTE INTEL H610M H V3 DDR4 Motherboard

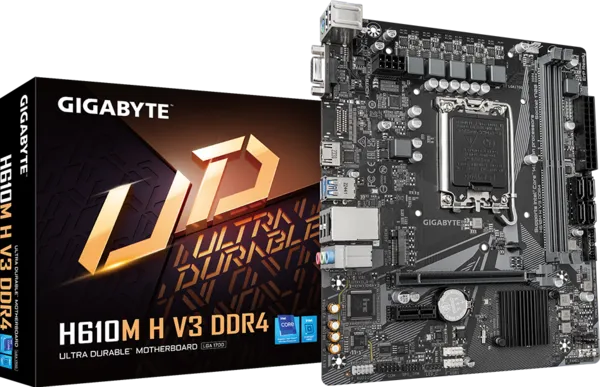

H610M H V3 DDR4

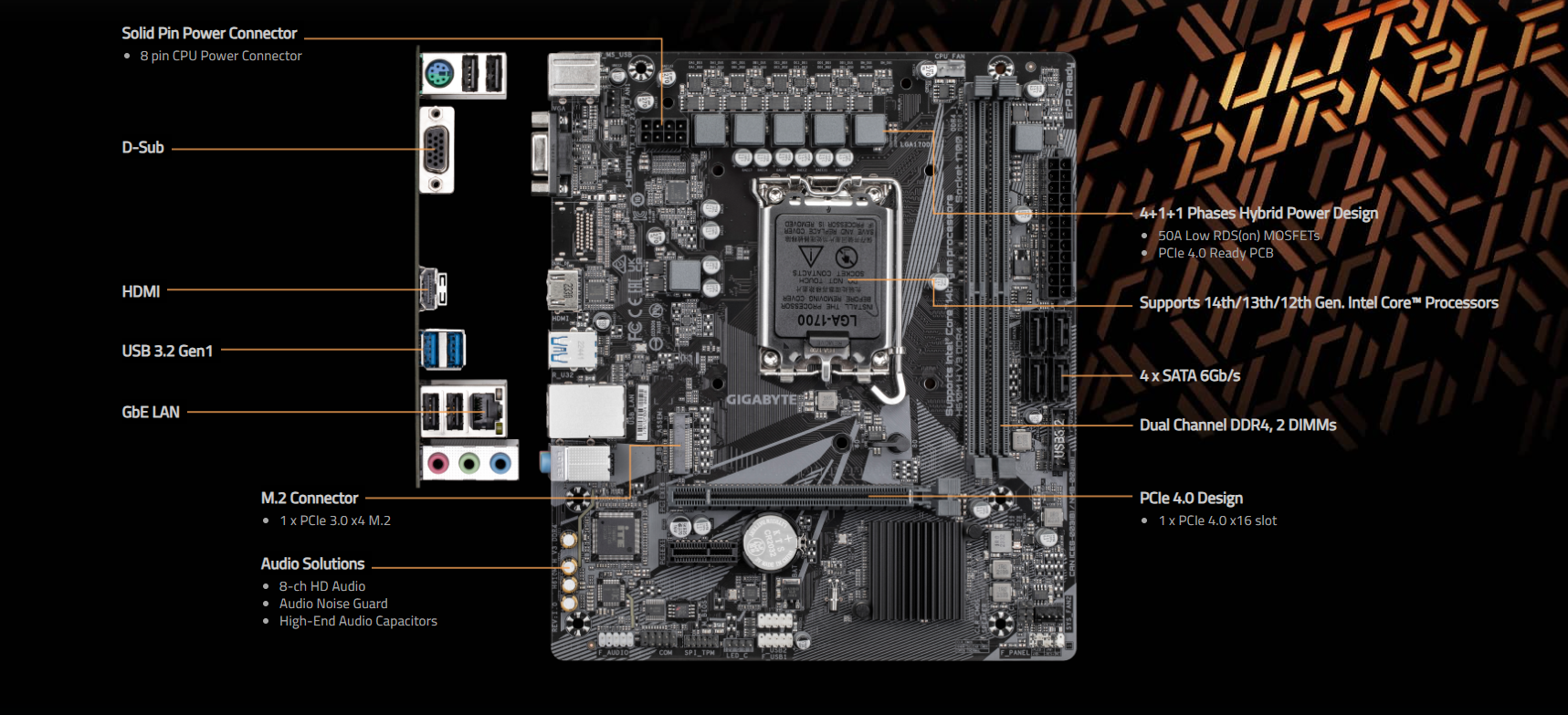

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0 Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

• ▸ Supports Intel® Core™ 14th/13th/12th processors
• ▸ Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• ▸ 4+1+1 Hybrid Digital VRM Design
• ▸ GbE LAN with Bandwidth Management
• ▸ NVMe PCIe 3.0 x4 M.2
• ▸ High Quality Audio Capacitors & Audio Noise Guard
• ▸ Smart Fan 6 with FAN STOP
• ▸ Anti-Sulfur Resistors Design

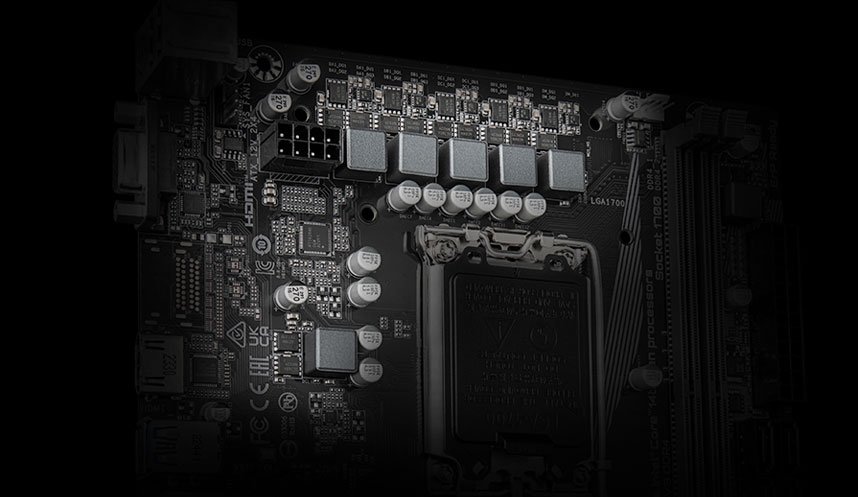

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

• ▸ 4+1+1 Phases Low RDS(on) MOSFETs
• ▸ Solid capacitors to improve transient response and minimize oscillation.
• ▸ 8-pin Solid Pin CPU Power Connector.

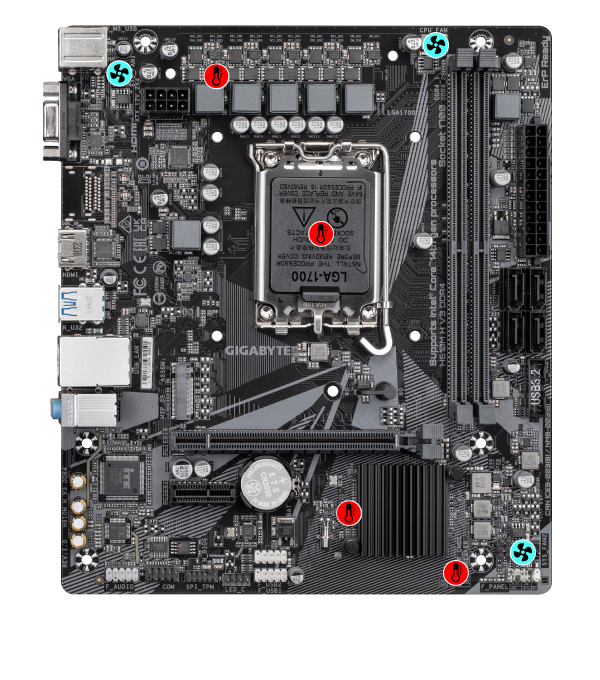

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors

3 PWM/DC Fan Headers

4 Internal Temperature Sensors

Cooling Features

• High Current Support: Each fan header supports PWM/DC fan and Water Cooling Pump, up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Up to 7 temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users’ specified temperature point

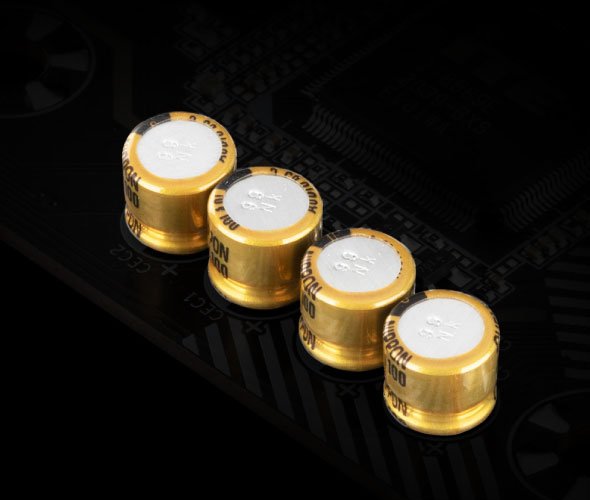

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

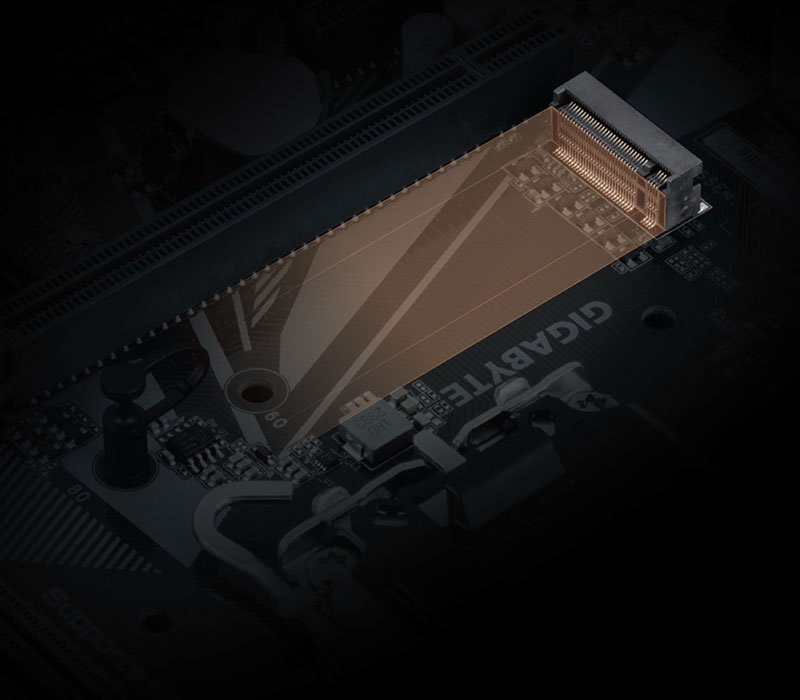

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

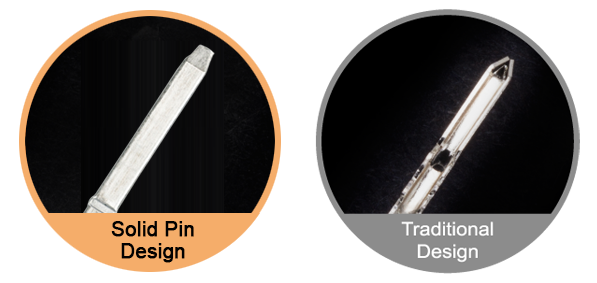

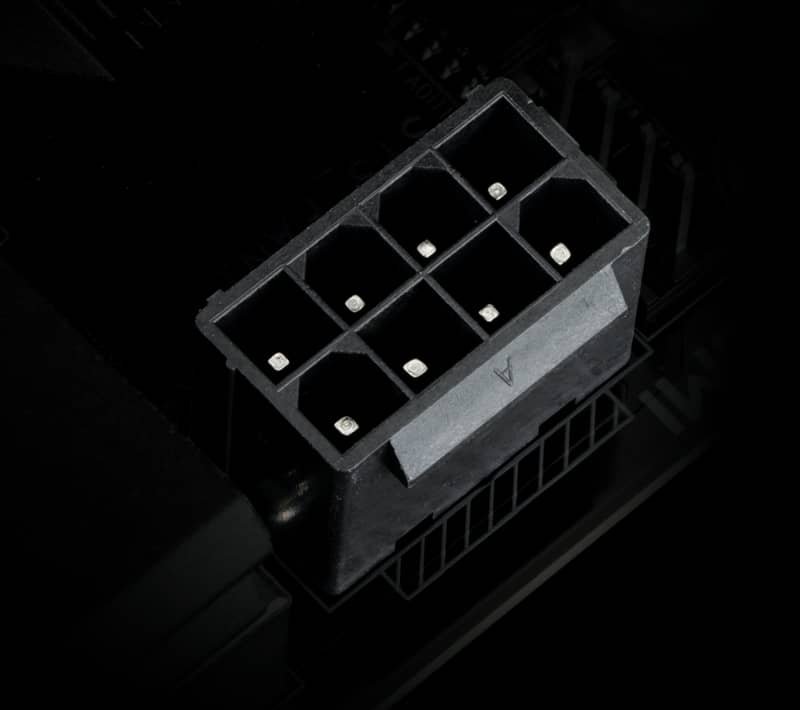

Solid Pin Power connector advantages

1. Larger contact area for electricity
2. More metal quantity to sustain higher power and generated heat
3. Ultra durable and longer lifespan

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
