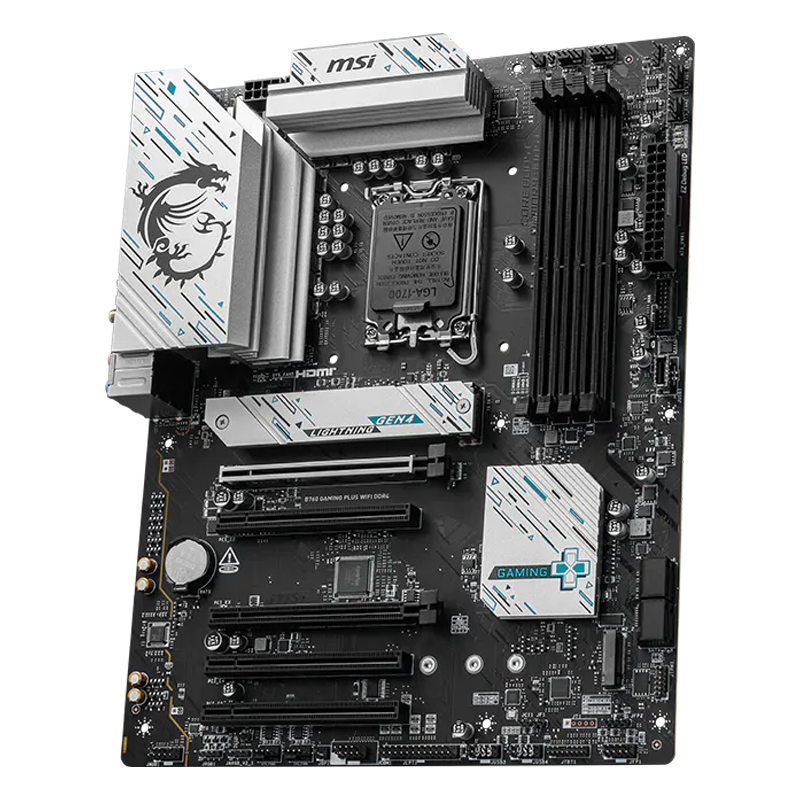

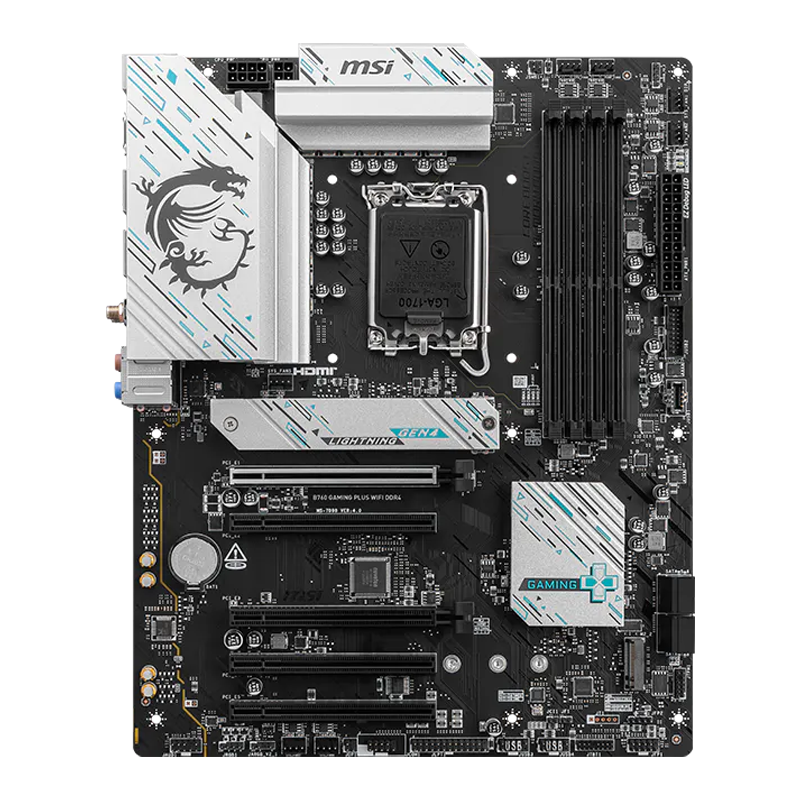

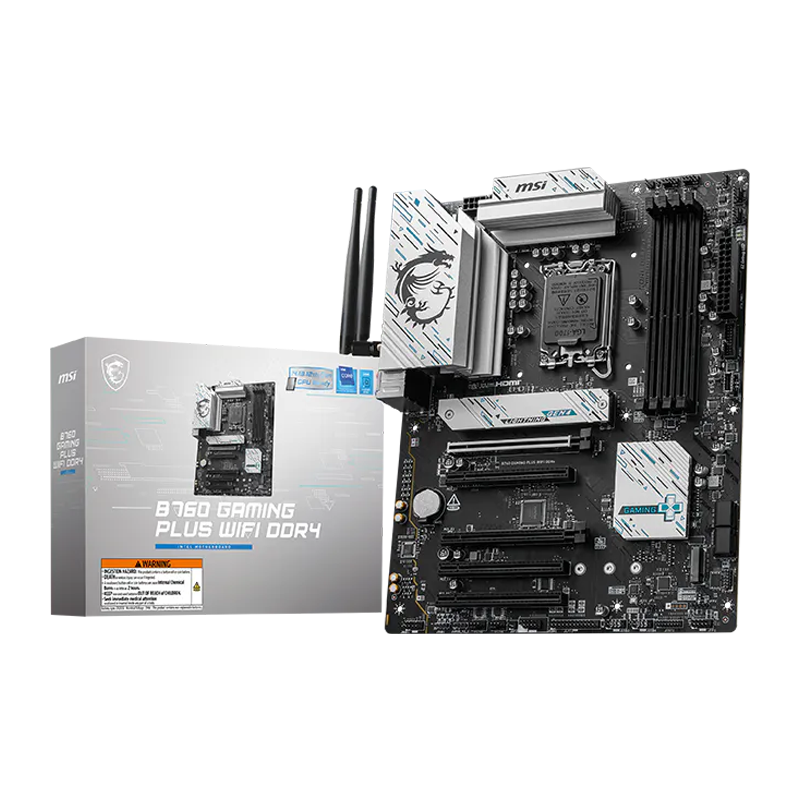

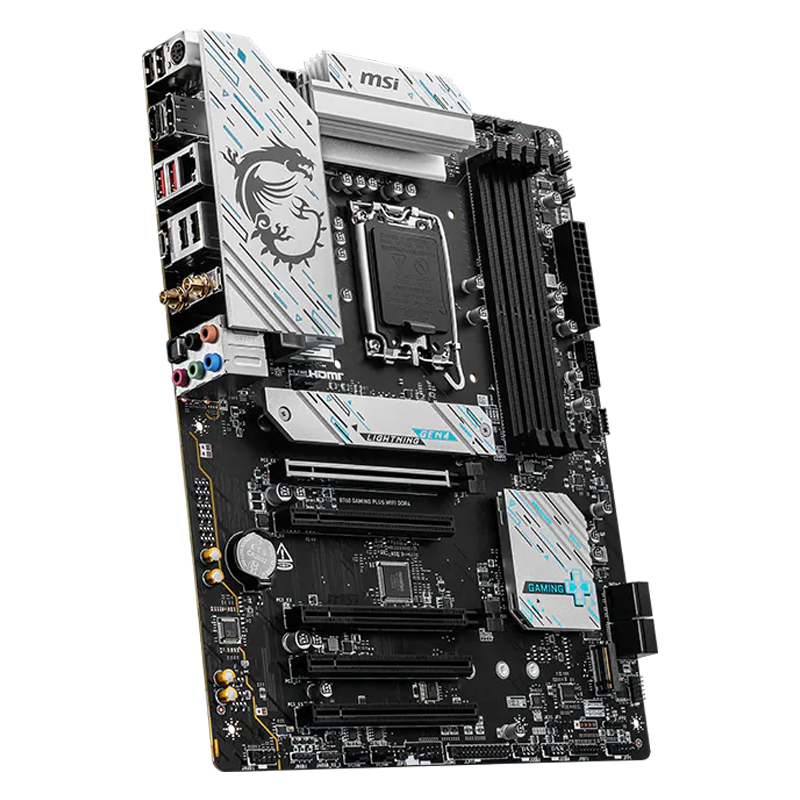

MSI B760 Gaming Plus WiFi DDR4 Intel LGA 1700 ATX Motherboard
₨ 51,999
Supports Intel 14th/13th/12th Gen Core Processors: LGA 1700 socket with a 12+1 Duet Rail Power System and dual 8-pin CPU connectors delivers stable, reliable power for demanding multi-core CPUs.
DDR4 Memory up to 5333+ MHz (OC): Four DIMM slots supporting up to 128GB of dual-channel DDR4 RAM with Intel XMP 3.0 for high-speed memory overclocking.
Lightning Gen 4 PCIe & Dual M.2 Storage: A PCIe 4.0 x16 slot for GPUs, plus two PCIe 4.0 M.2 slots (one with M.2 Shield Frozr) for ultra-fast NVMe SSDs and four SATA 6G ports.
Intel Wi-Fi 6E & 2.5Gbps LAN: Integrated Intel Wi-Fi 6E with Bluetooth 5.3 and a Realtek 2.5Gbps Ethernet port for ultra-fast, low-latency wired and wireless networking.
USB 10Gbps Type-C & Premium Cooling: Rear USB 3.2 Gen 2 10Gbps Type-C and Type-A ports, front USB 5Gbps Type-C, 7.1-Channel HD Audio with S/PDIF, and EZ Debug LED.
| Overview | |
| Brand & Model | MSI B760 Gaming Plus WiFi |
| Socket & Chipset | LGA 1700 / Intel B760 |
| CPU Support | Intel Core 14th, 13th, 12th Gen |
| Form Factor | ATX (243.84 mm x 304.8 mm) |

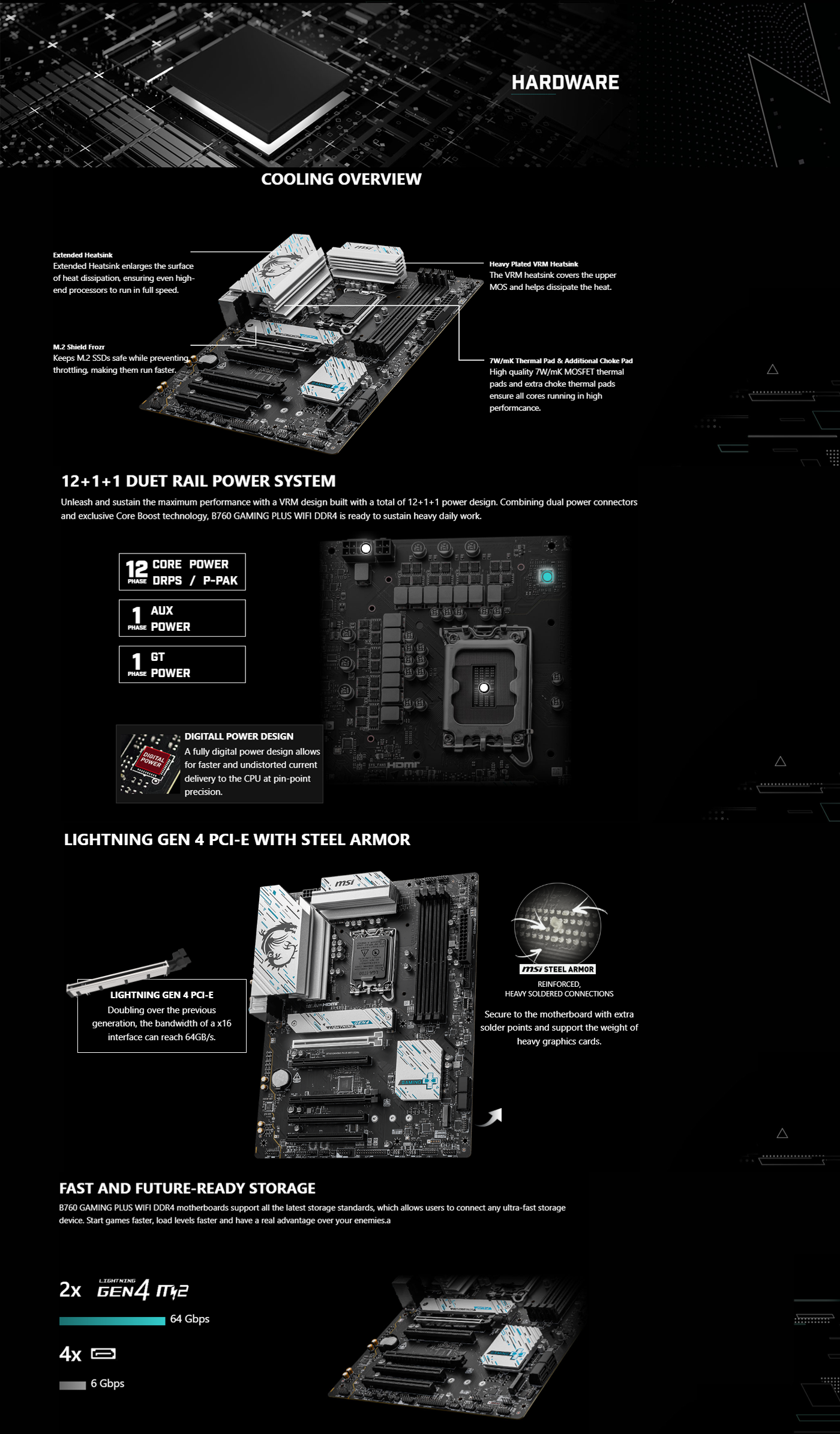

| VRM Design | 12+1 Duet Rail Power System – Dual 8-Pin CPU Connectors |
| Memory | |
| Memory | 4x DDR4 DIMM, Up to 128 GB, 5333+ MHz (OC), XMP 3.0 |
| Expansion Slots | |
| Graphics Slot | 1x PCIe 4.0 x16 (CPU) – Lightning Gen 4 |
| Additional Slots | 1x PCIe 4.0 x4 (Chipset), 3x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Storage | 2x M.2 PCIe 4.0 x4 (1x CPU, 1x Chipset) – One with M.2 Shield Frozr |
| SATA Ports | 4x SATA 6G (Supports RAID 0/1/5/10) |
| Networking | |
| Wired | Realtek RTL8125BG 2.5G LAN |
| Wireless & Bluetooth | Intel Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| USB | |

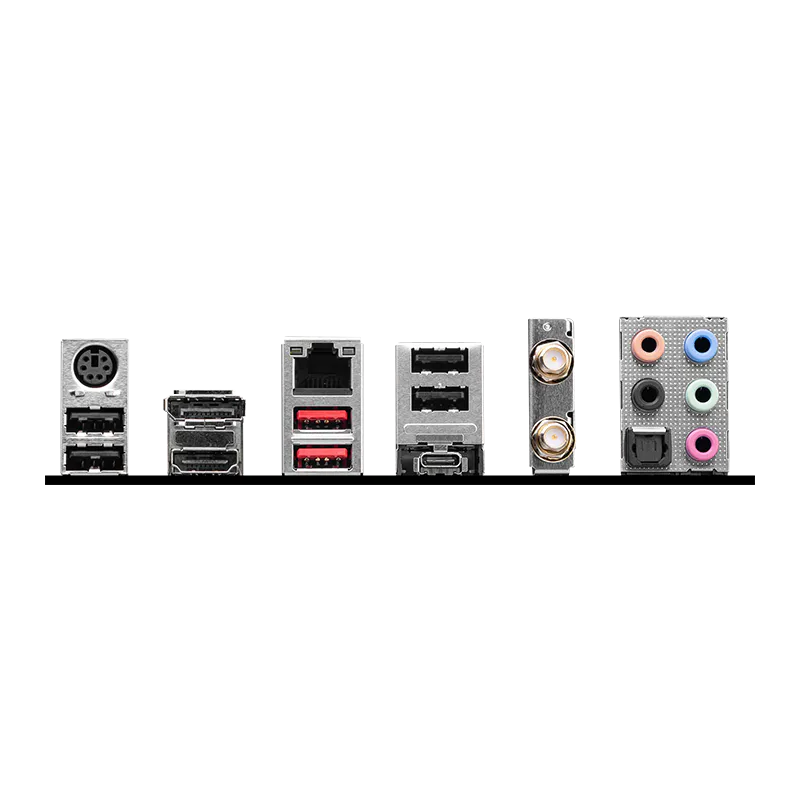

| Rear USB | 1x USB 10Gbps Type-C, 2x USB 10Gbps Type-A, 4x USB 2.0 |
| Front USB | 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video & Audio | |
| Video Outputs | HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897 7.1-Channel HD Audio with S/PDIF |
| Special Features | |
| Special Features | EZ Debug LED, M.2 Shield Frozr, Addressable RGB Headers |
| Warranty | |
| Warranty | 1 Year Local Warranty (Varies by Retailer) |
