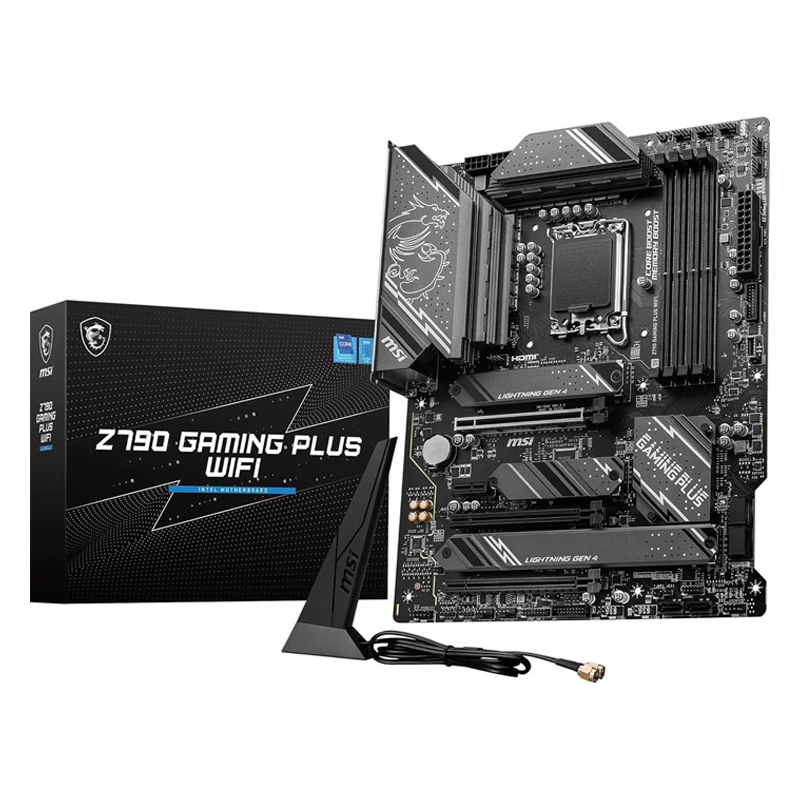

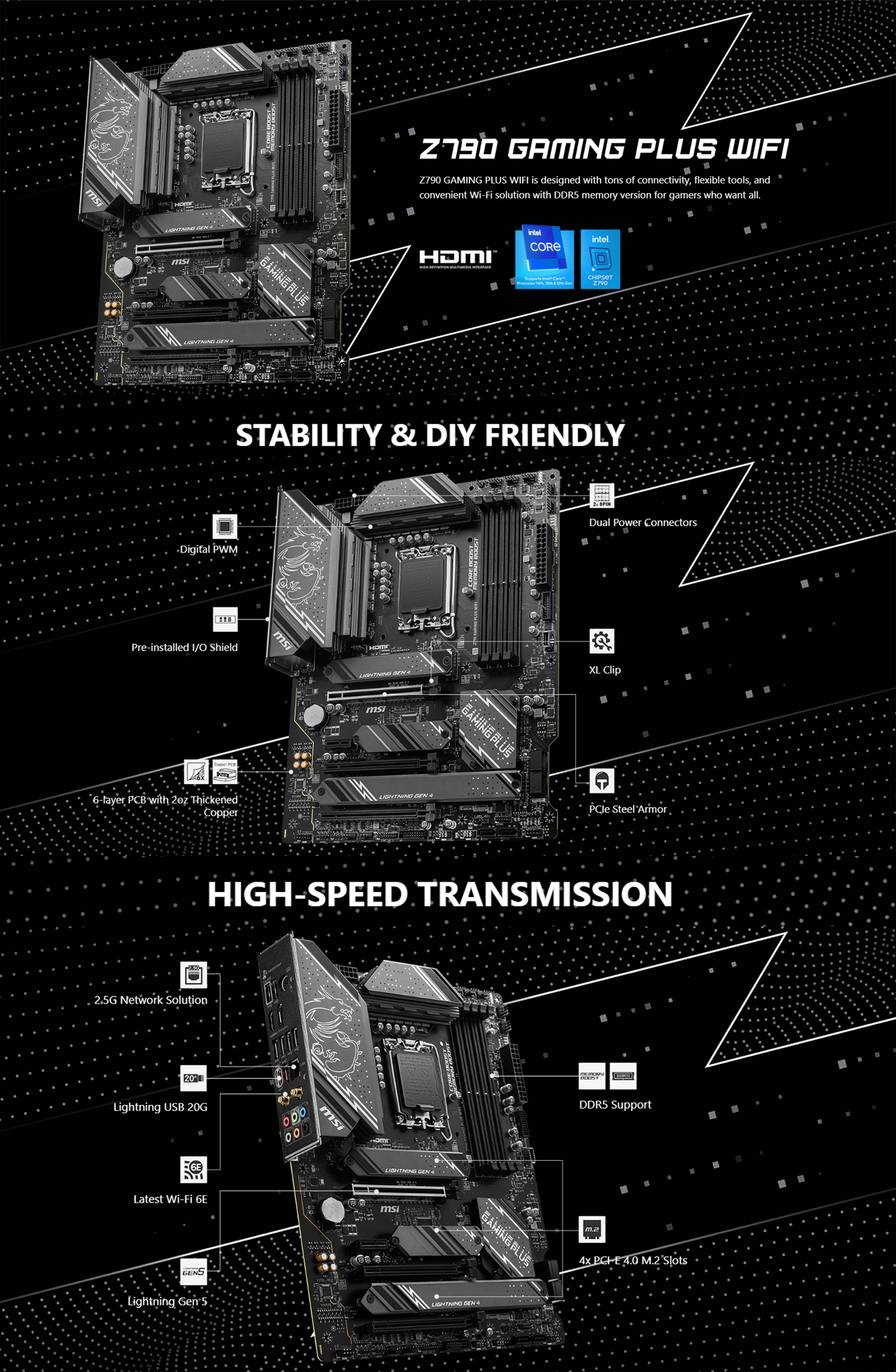

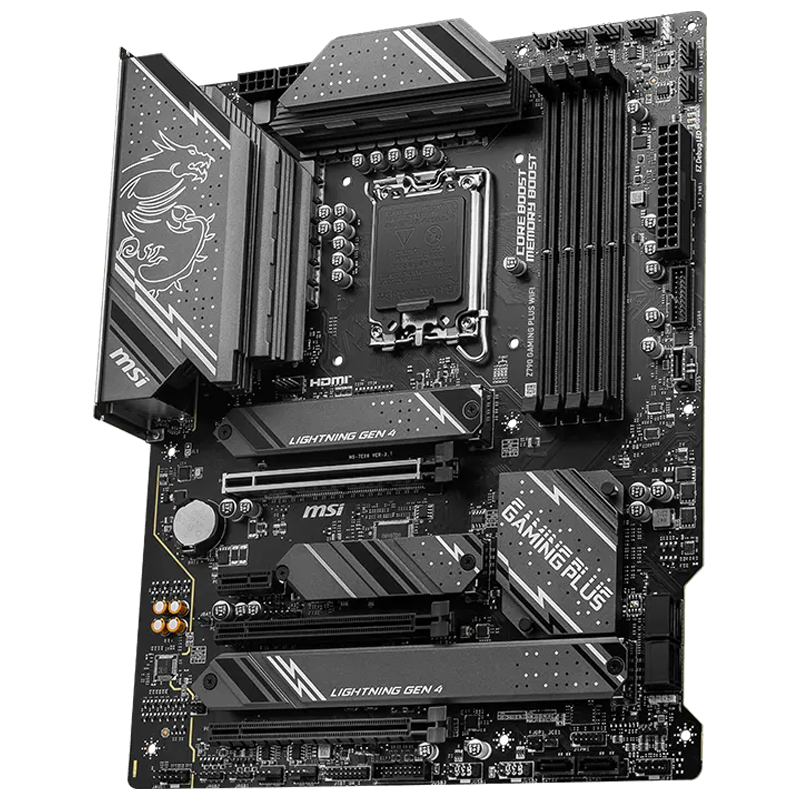

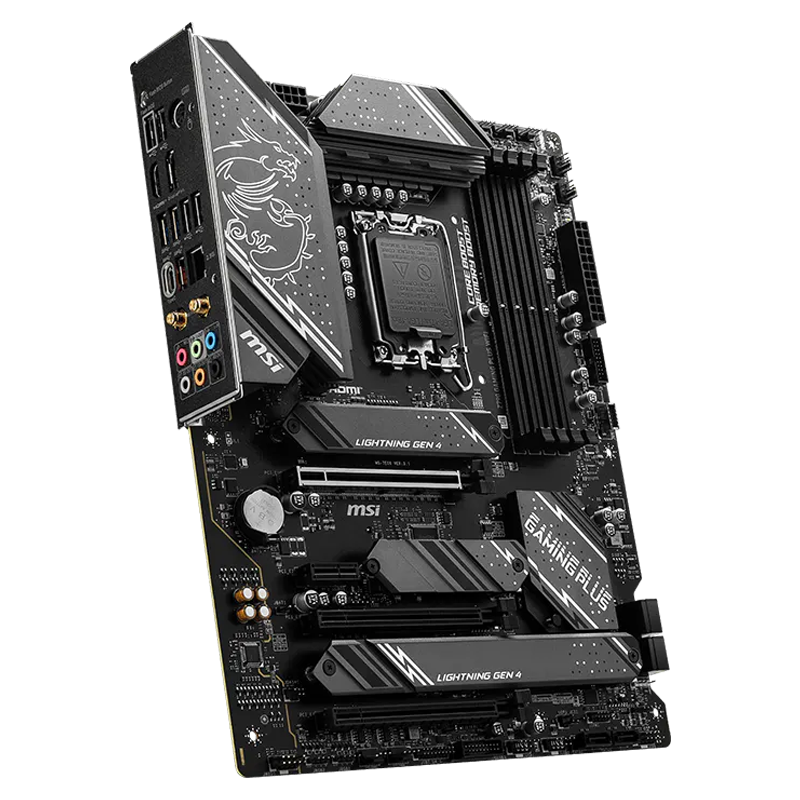

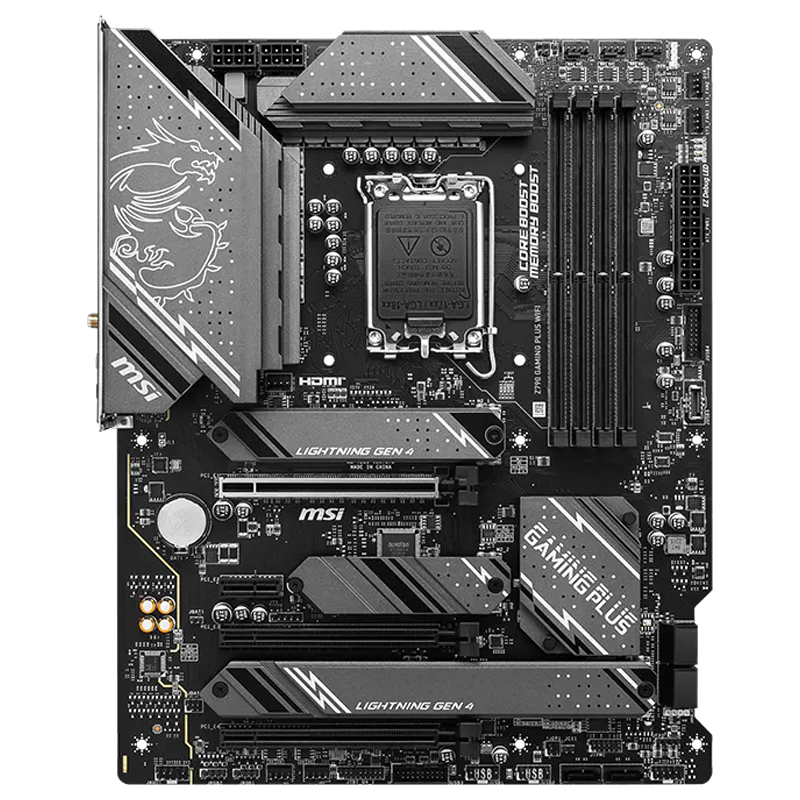

MSI Z790 Gaming Plus WiFi DDR5 LGA 1700 ATX Motherboard
₨ 71,999
Supports Intel 14th/13th/12th Gen Core Processors: LGA 1700 socket with a powerful VRM and dual 8-pin CPU connectors delivers stable, reliable power for demanding multi-core CPUs.
DDR5 Memory up to 7200+ MHz (OC): Four DIMM slots supporting up to 256GB of dual-channel DDR5 memory with Intel XMP 3.0 for high-speed overclocking.

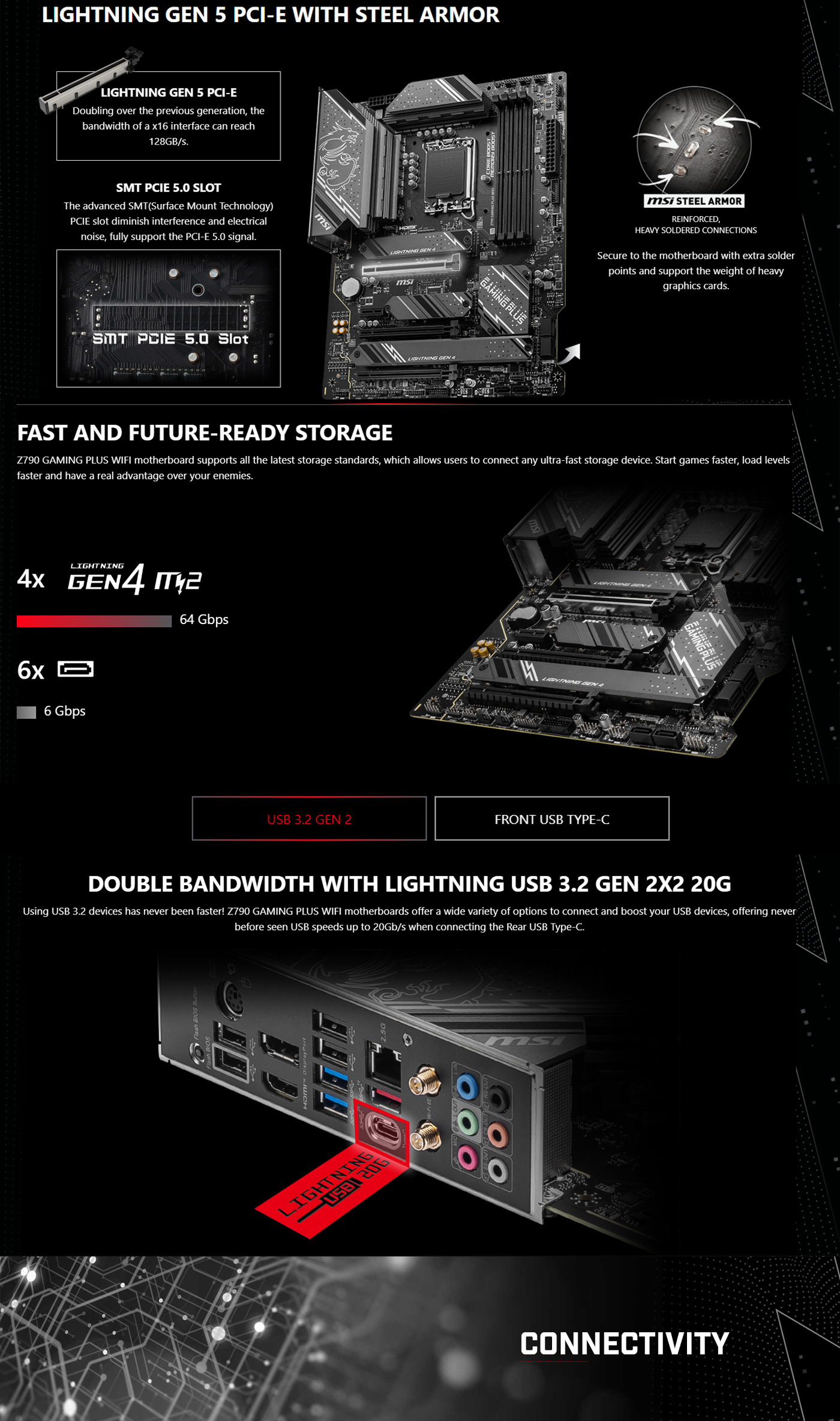

PCIe 5.0 x16 & Quad M.2 Storage: A Lightning Gen 5 PCIe slot for next-gen GPUs, plus four PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs with RAID support.
Intel Wi-Fi 6E & 2.5G LAN: Integrated Intel Wi-Fi 6E with Bluetooth 5.3 and a high-speed Intel 2.5Gbps Ethernet port for secure, stable, and fast wired and wireless networking.

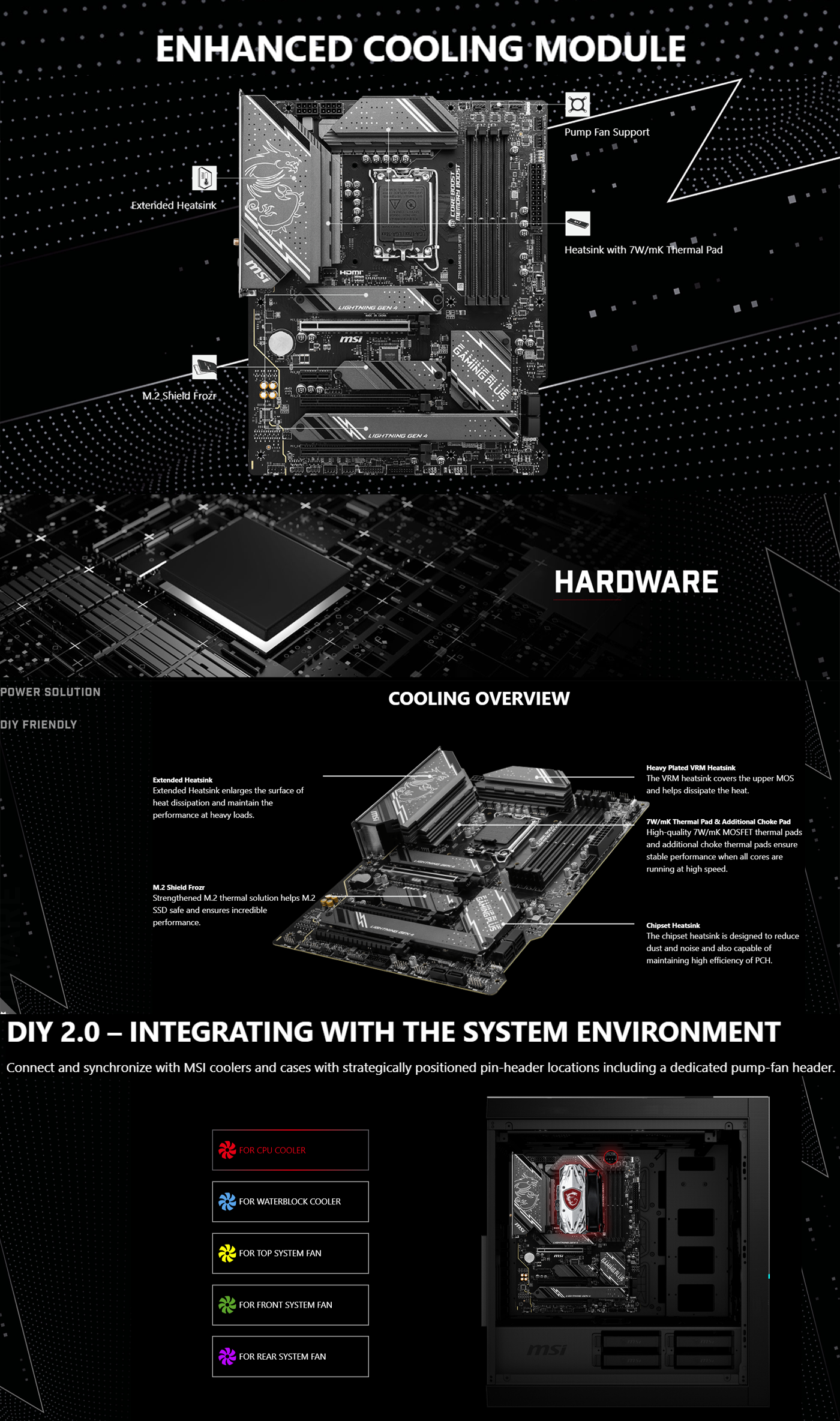

USB 20Gbps Type-C & Premium Cooling: Rear USB 3.2 Gen 2×2 20Gbps Type-C port, front USB 10Gbps Type-C, extended heatsinks, and 7W/mK thermal pads for optimal cooling under sustained loads.
| Overview | |
| Brand & Model | MSI Z790 Gaming Plus WiFi |
| Socket & Chipset | LGA 1700 / Intel Z790 |
| CPU Support | Intel Core 14th, 13th, 12th Gen – Dual 8-Pin CPU Connectors |
| Form Factor | ATX (243.84 mm x 304.8 mm) |
| Memory | |
| Memory | 4x DDR5 DIMM, Up to 256 GB, 7200+ MHz (OC), XMP 3.0 |
| Expansion Slots | |
| Graphics Slot | 1x PCIe 5.0 x16 (CPU) – Lightning Gen 5 for Next-Gen GPUs |
| Additional PCIe | 1x PCIe 4.0 x4, 2x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Storage | 4x M.2 PCIe 4.0 x4 (Supports RAID 0/1/5/10) – Quad M.2 for Ultra-Fast NVMe SSDs |
| SATA Ports | 6x SATA 6G (Supports RAID 0/1/5/10) |
| Networking | |
| Wired | Intel 2.5Gbps LAN |
| Wireless & Bluetooth | Intel Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| USB | |

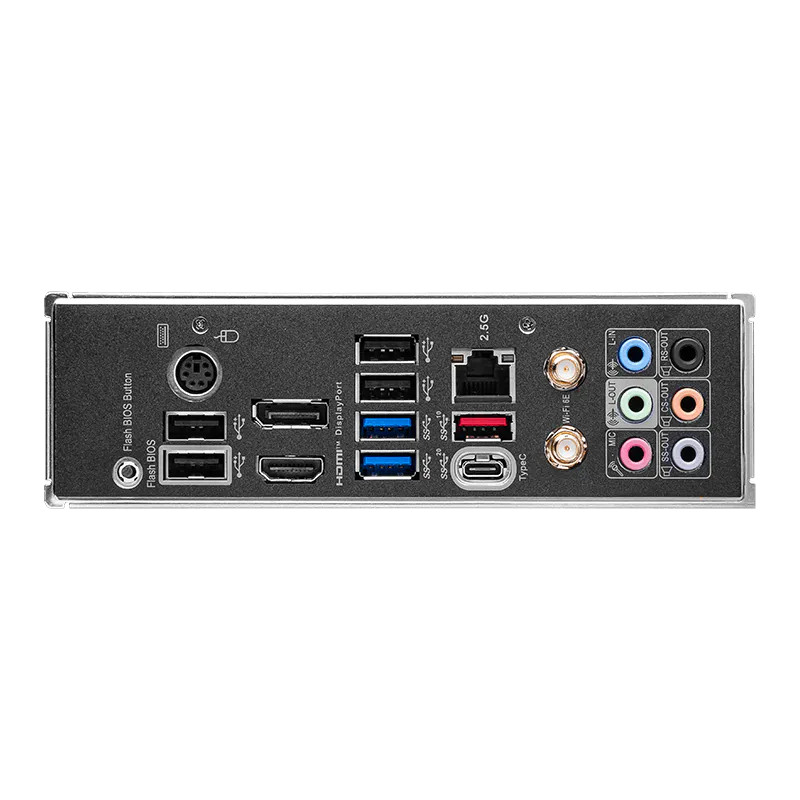

| Rear USB | 1x USB 20Gbps Type-C, 1x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB | 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A, 4x USB 2.0 |
| Video & Audio | |
| Video Outputs | HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| Special Features | |
| Special Features | EZ Debug LED, Flash BIOS Button, USB4 Card Connector, Extended Heatsinks with 7W/mK Thermal Pads |
| Warranty | |
| Warranty | 1 Year Local Warranty (Varies by Retailer) |
Brand
MSI
