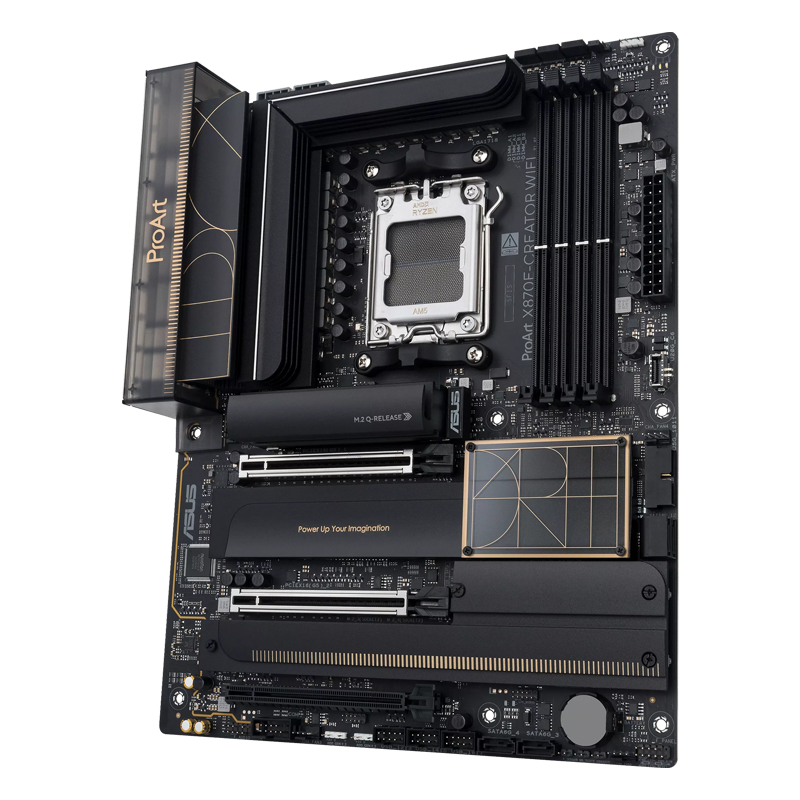

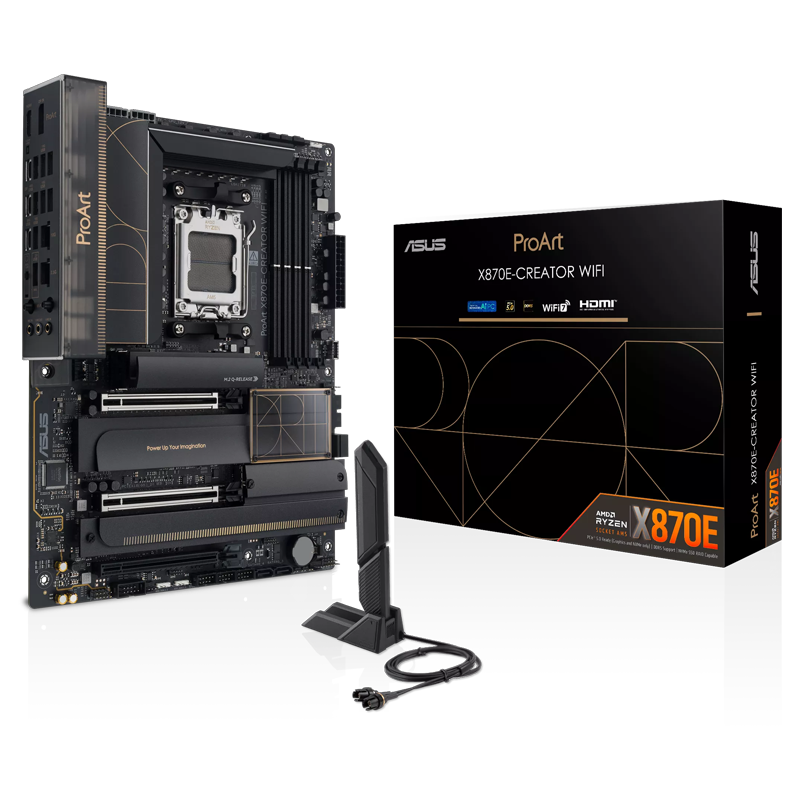

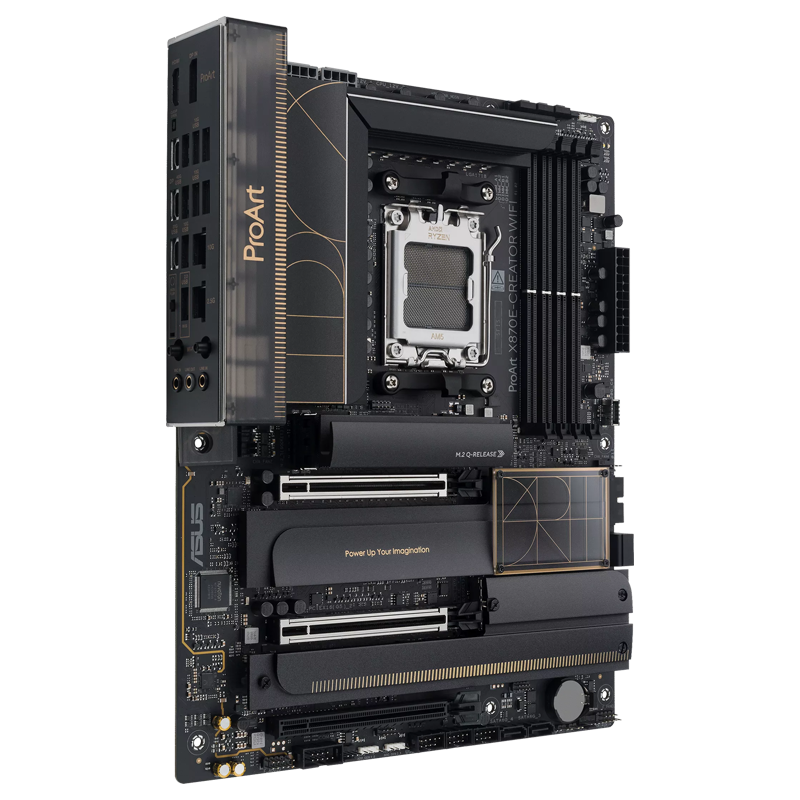

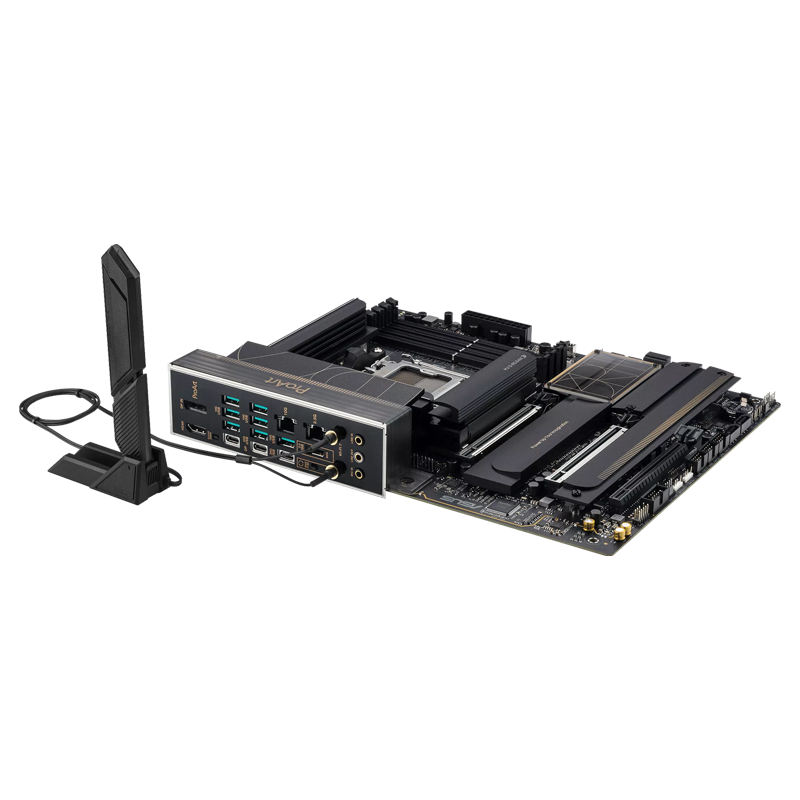

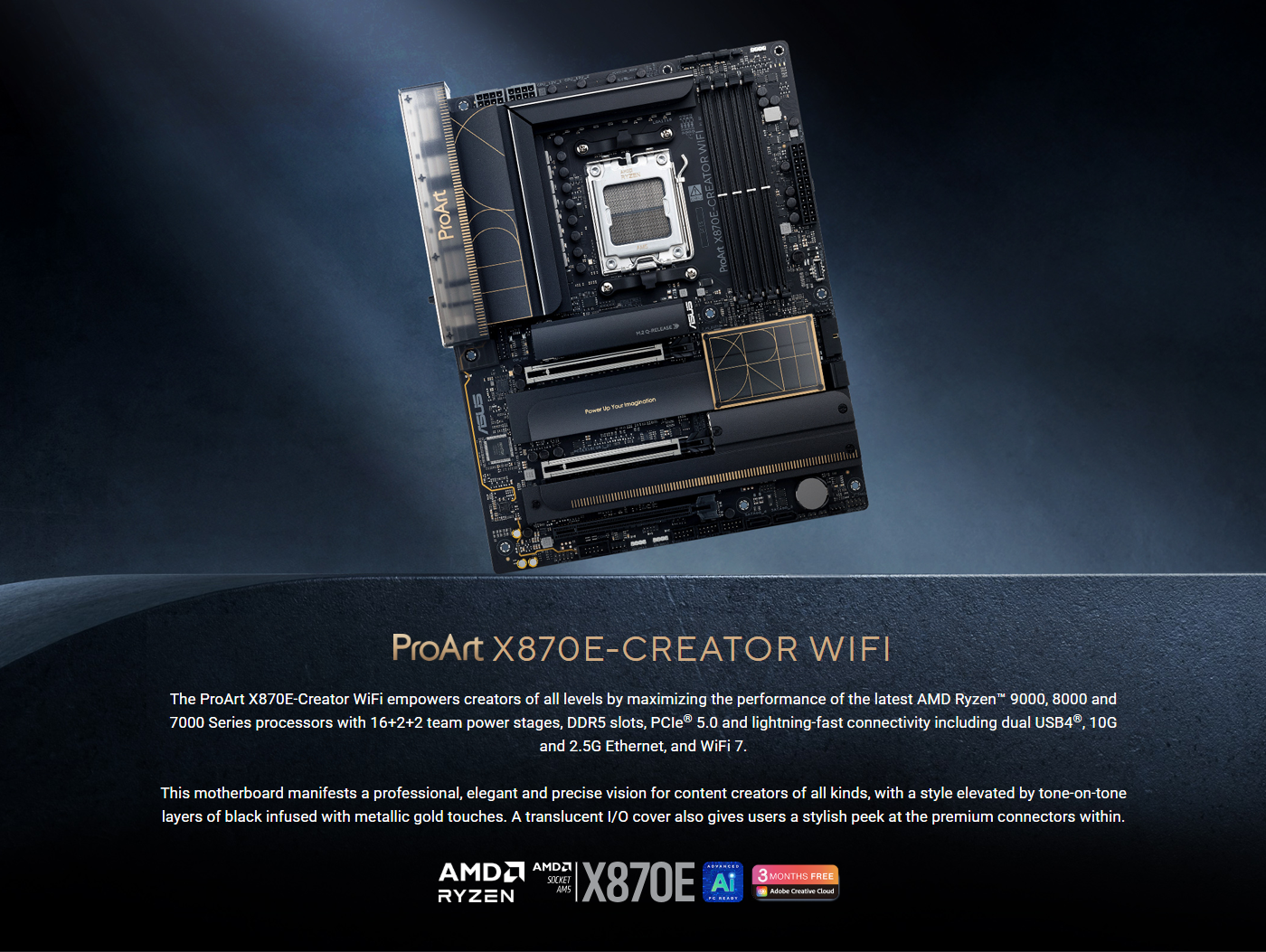

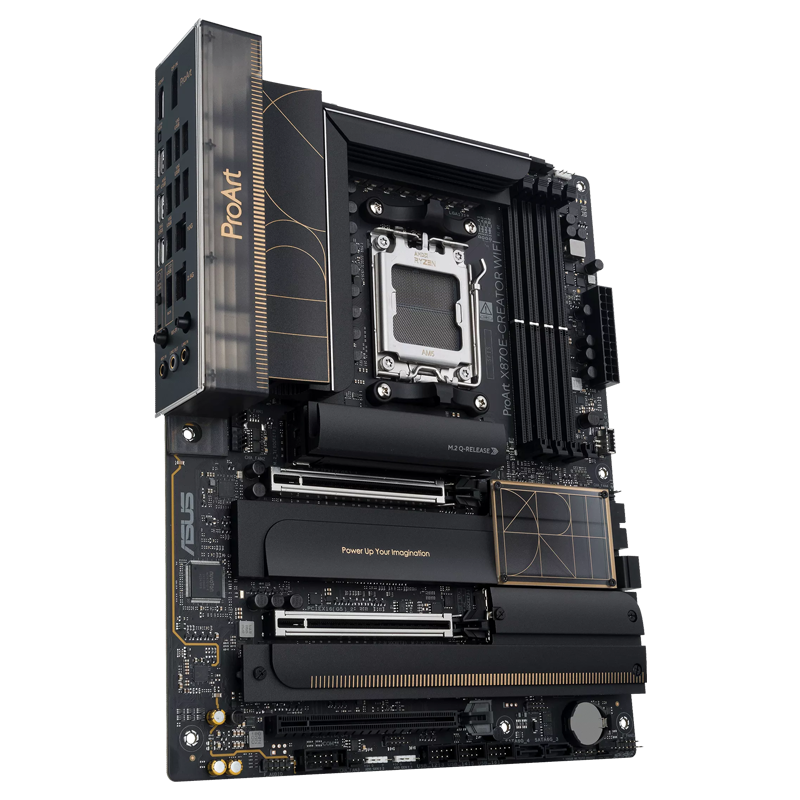

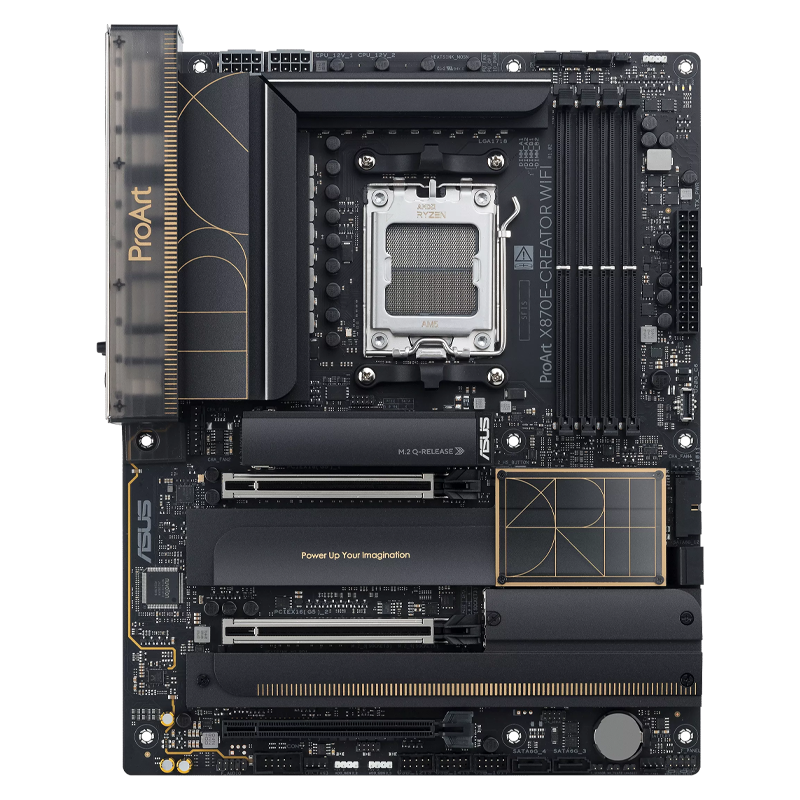

Asus ProArt X870E-Creator Wifi AMD AM5 X870E ATX Motherboard
₨ 187,999

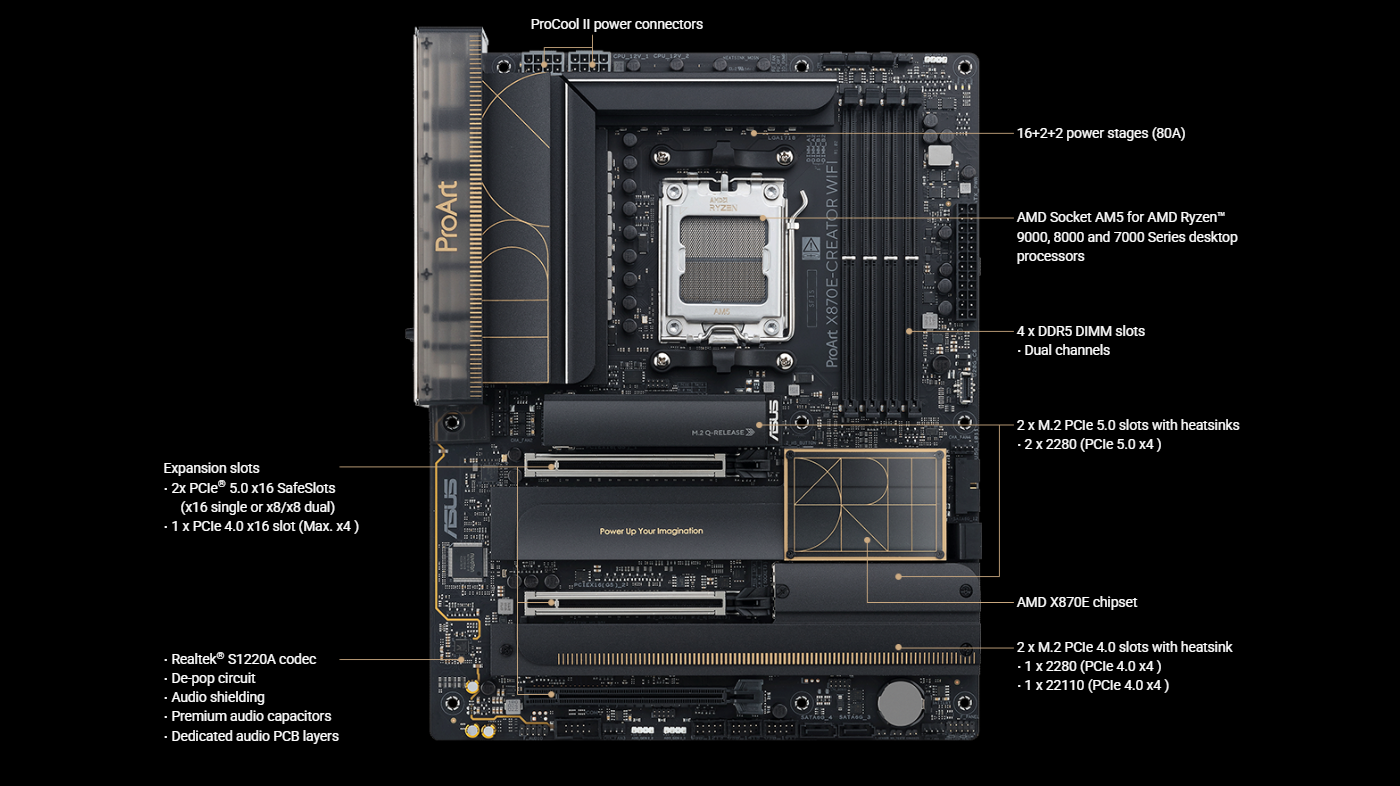

Dual PCIe 5.0 x16 & Four M.2 Slots – Two PCIe 5.0 x16 slots (x16 or x8/x8) and four onboard M.2 slots (two PCIe 5.0) offer incredible bandwidth for next-gen GPUs and SSDs

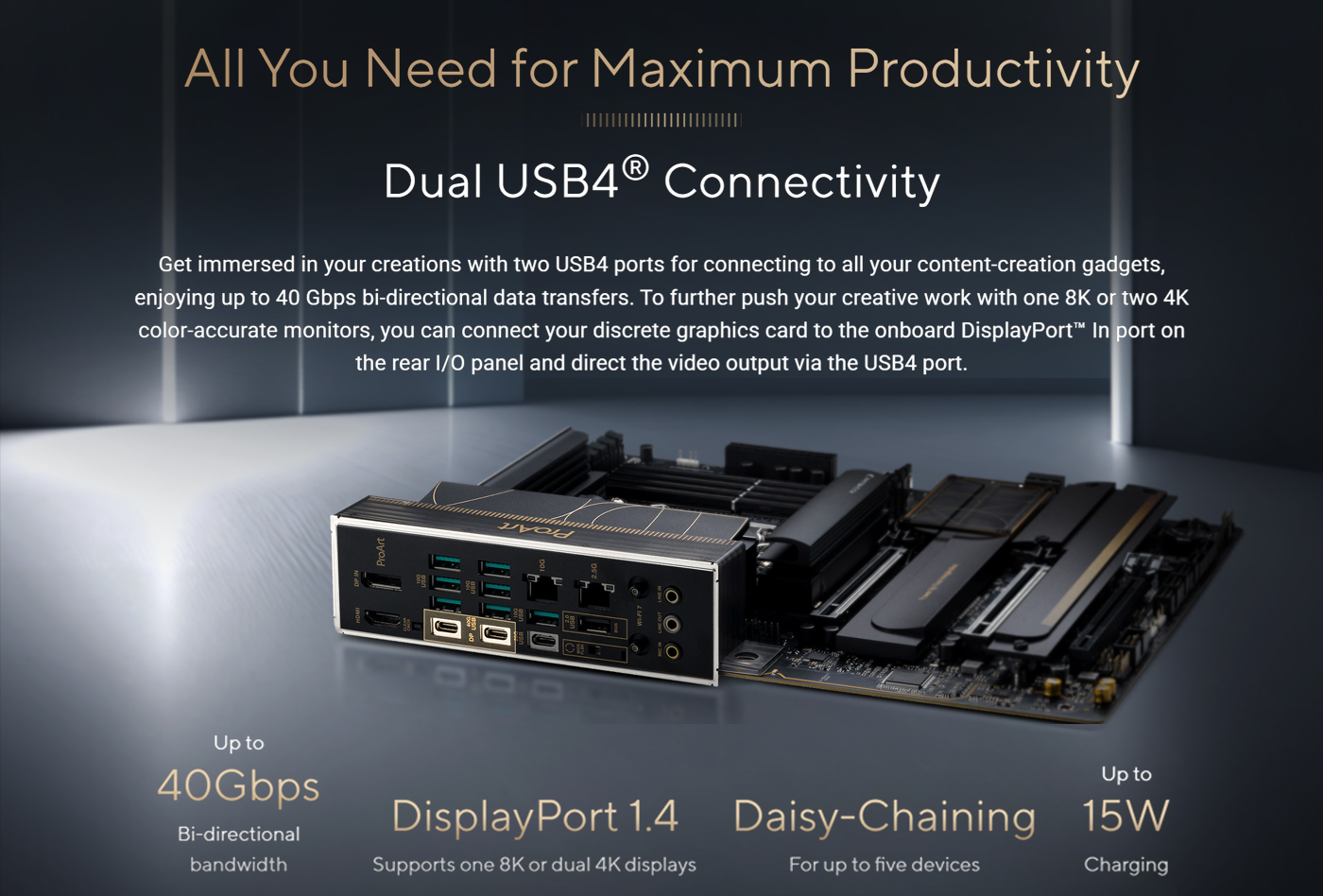

Dual USB4 & High-Speed Networking – Two USB4 ports (up to 40Gbps), 10Gb & 2.5Gb Ethernet, and WiFi 7 with 320MHz bandwidth deliver ultra-fast data transfers and seamless connectivity
16+2+2 (80A) Power Stages – Robust power design with ProCool II connectors and premium components ensures optimal power delivery and stability for high-core-count Ryzen 9000 Series processors
AI-Powered Performance – Exclusive AI Cache Boost, AI Overclocking, AI Cooling II, and AI Networking II intelligently optimize your system for demanding workflows
Creator-Focused DIY-Friendly Design – PCIe Slot Q-Release Slim, M.2 Q-Release & Q-Latch, front USB 20Gbps with 30W Quick Charge 4+, and ProArt Creator Hub streamline your creative workflow
| Overview | |
| Model | ProArt X870E-CREATOR WIFI |
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Memory | |
| Memory Slots | 4 x DIMM Slots |
| Maximum Capacity | Up to 256 GB |
| Memory Type | DDR5 (Dual Channel), ECC & Non-ECC Un-buffered DIMM |

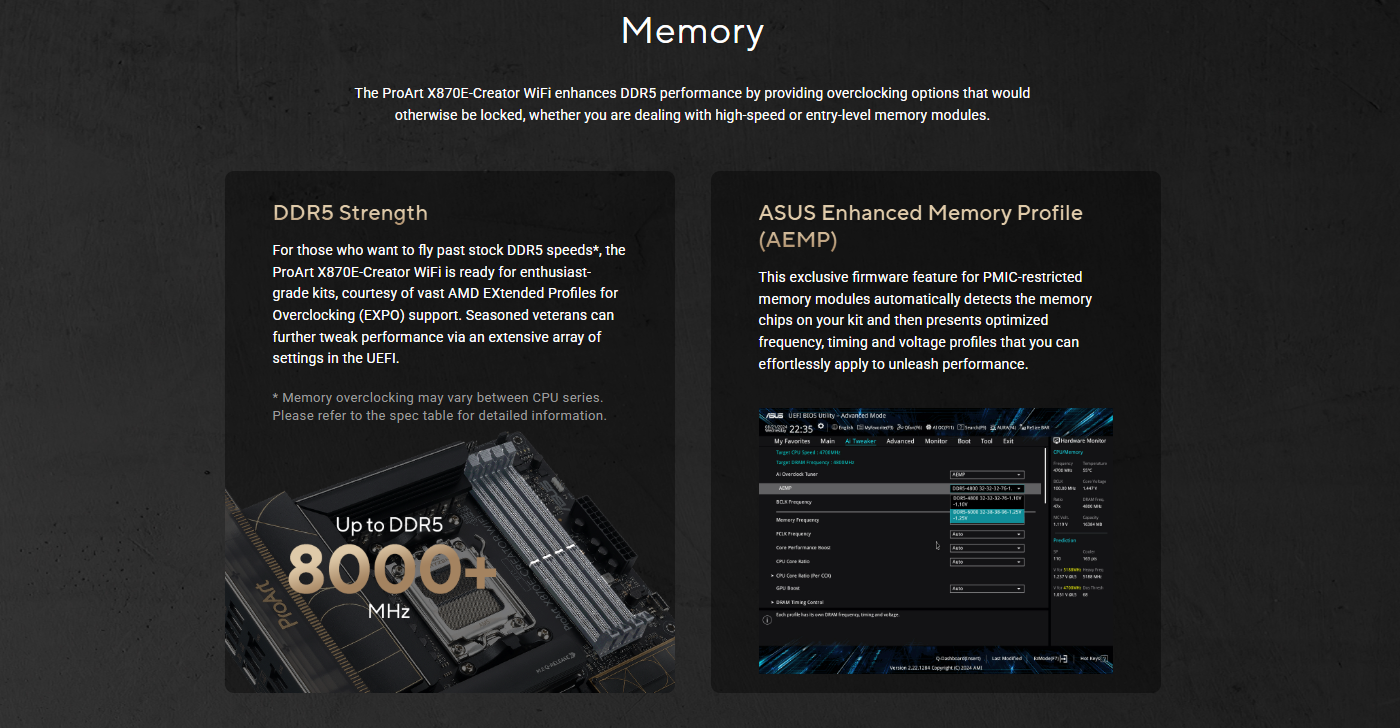

| Max Speed (OC) | Up to 8000+ MT/s (Ryzen 9000 / 8000 / 7000 Series) |
| Overclocking Support | AMD EXPO, ASUS Enhanced Memory Profile (AEMP) |
| Graphics | |
| Video Outputs | 1x HDMI (4K@60Hz), 2x USB4 (40Gbps) Type-C with DisplayPort 1.4 (Up to 8K@60Hz) |
| Expansion Slots | |

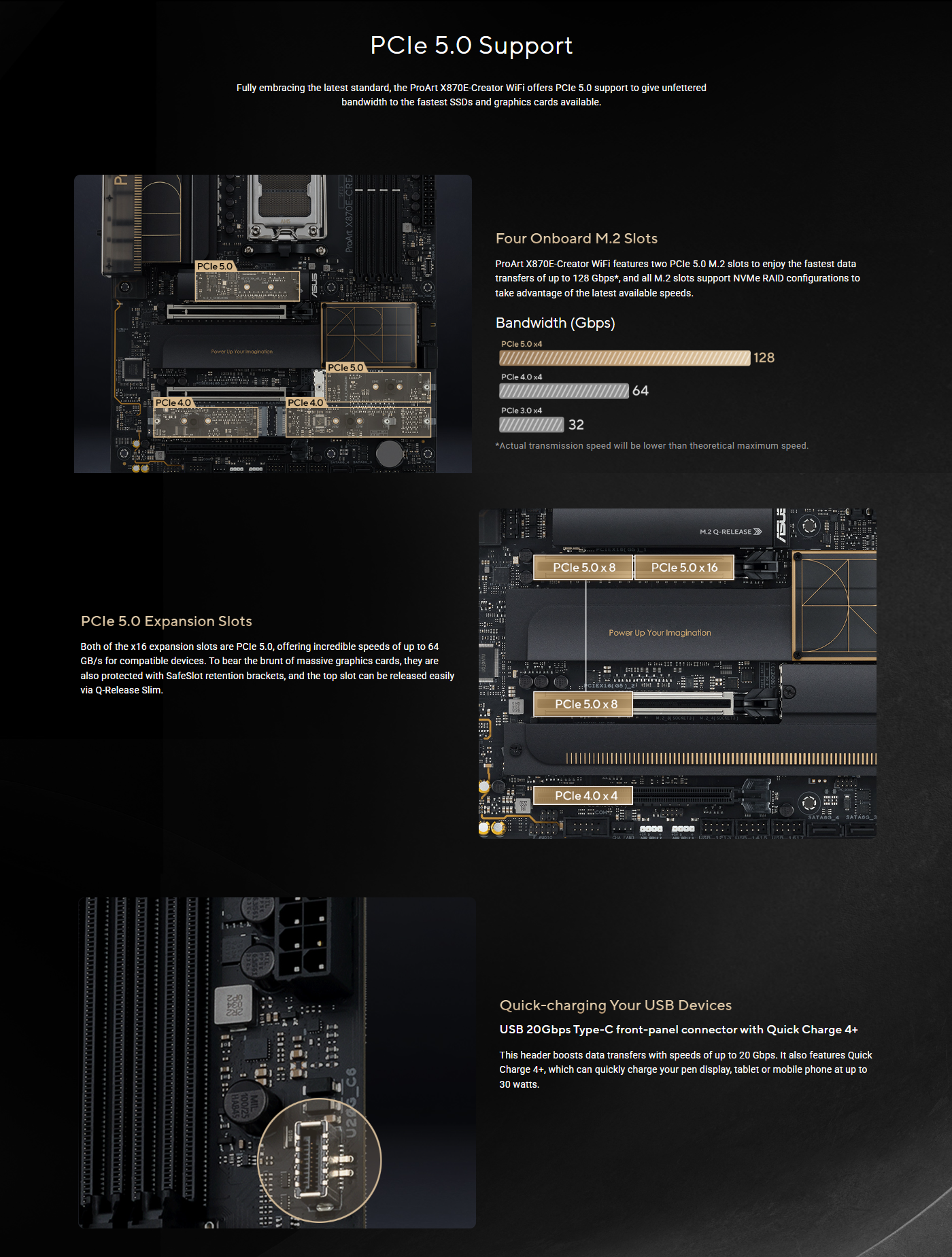

| PCIe 5.0 x16 Slots | 2x (Supports x16 or x8/x8 or x8/x4/x4 modes) with Q-Release Slim |
| PCIe 4.0 x16 Slot | 1x (Supports x4 mode, from Chipset) |
| Storage | |
| M.2 Slots | 4x (M.2_1: PCIe 5.0 x4, M.2_2: PCIe 5.0 x4, M.2_3: PCIe 4.0 x4, M.2_4: PCIe 4.0 x4) |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | AMD RAIDXpert2 – PCIe RAID 0/1/5/10, SATA RAID 0/1/10 |
| Networking | |

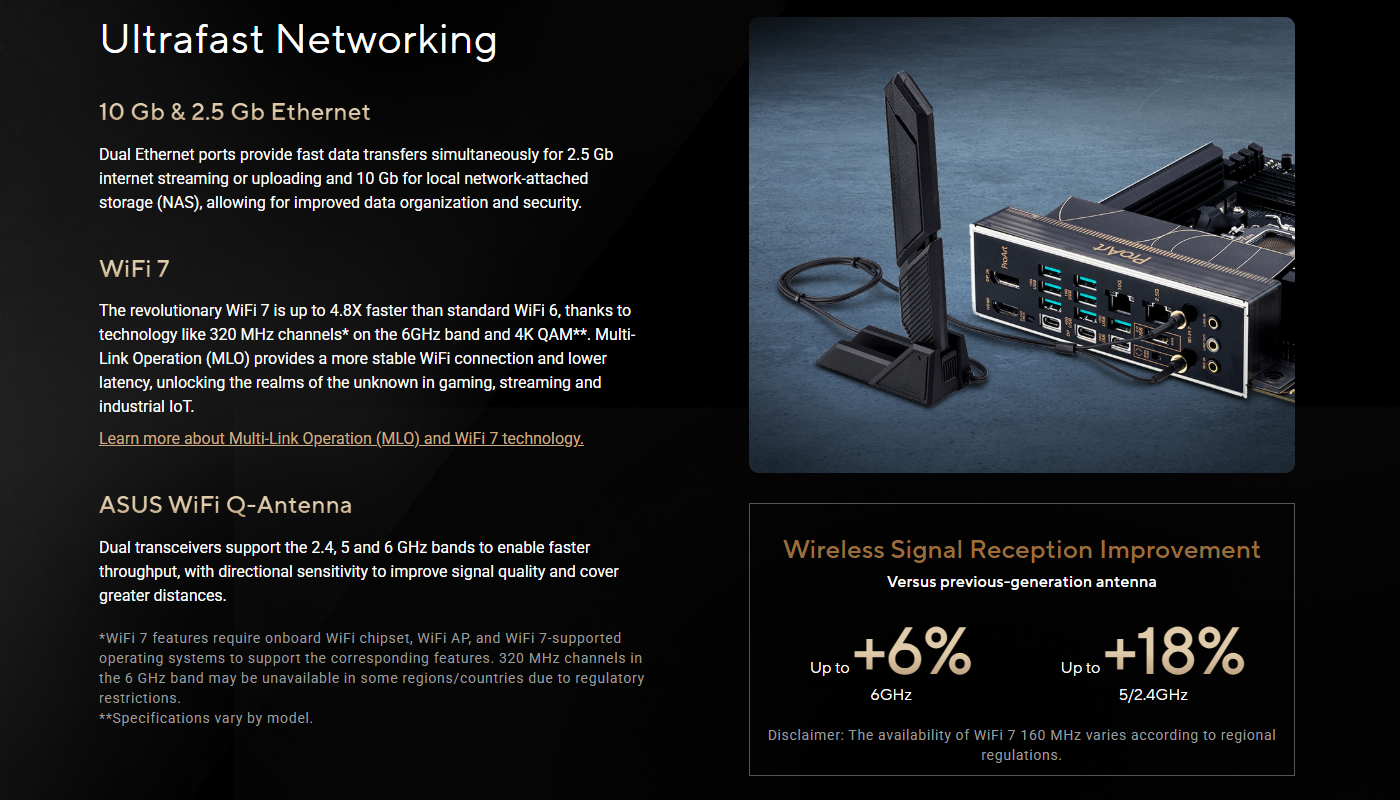

| Ethernet | 1x Marvell AQtion 10Gb Ethernet, 1x Intel 2.5Gb Ethernet, ASUS LANGuard |
| Wireless | Wi-Fi 7 (802.11be), 2×2, 2.4/5/6GHz, 320MHz Bandwidth |
| Bluetooth | Bluetooth v5.4 |
| USB | |
| Rear USB (Total 11 Ports) | 2x USB4 (40Gbps) Type-C, 1x USB 20Gbps Type-C, 7x USB 10Gbps Type-A, 1x USB 2.0 Type-A |
| Front USB (Total 9 Ports) | 1x USB 20Gbps Type-C (Up to 30W PD/QC4+), 2x USB 5Gbps, 6x USB 2.0 |
| Audio | |
| Audio Codec | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Audio Features | Audio Shielding, Premium Audio Capacitors, Dedicated Audio PCB Layers, Unique De-Pop Circuit, 120 dB SNR Stereo Playback, Up to 32-Bit/192 kHz Playback |
| Back Panel I/O Ports | |

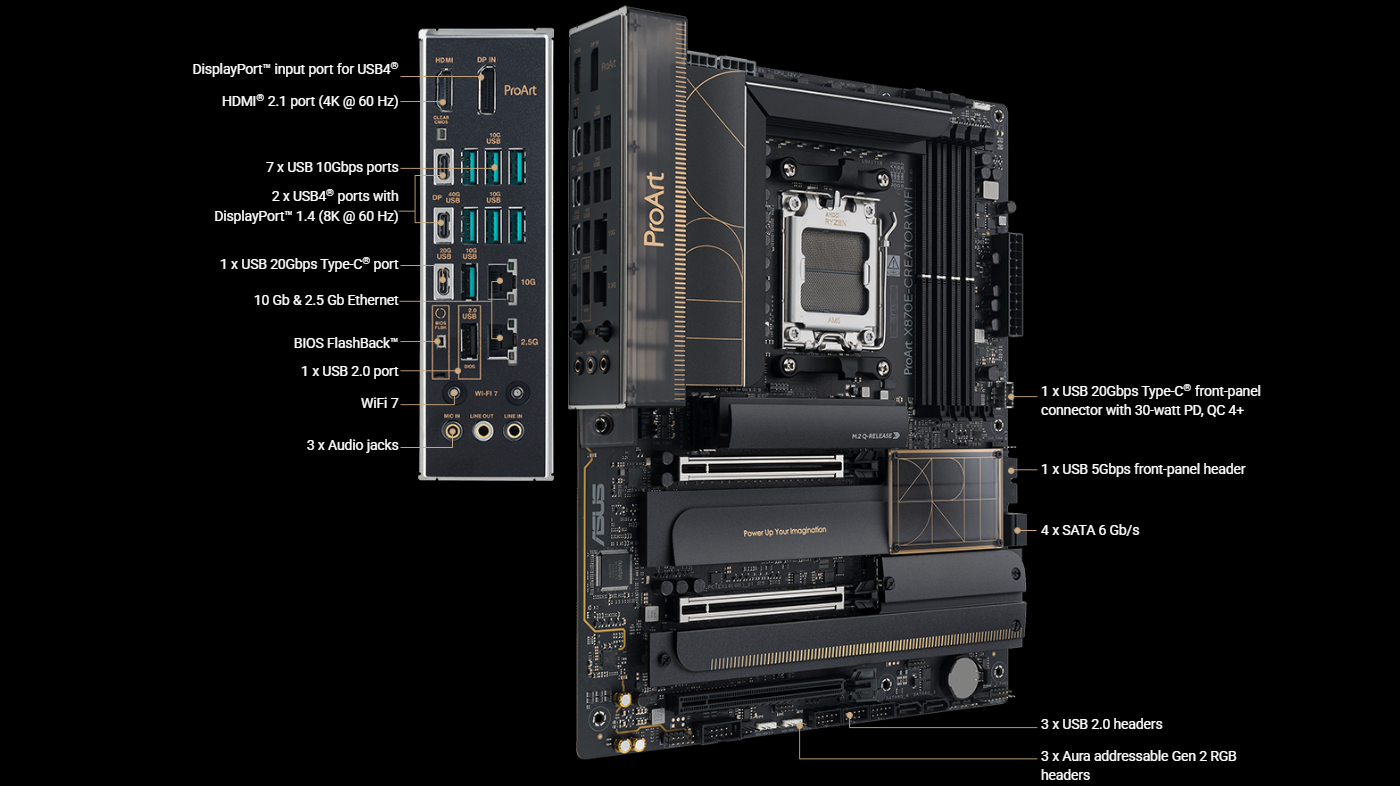

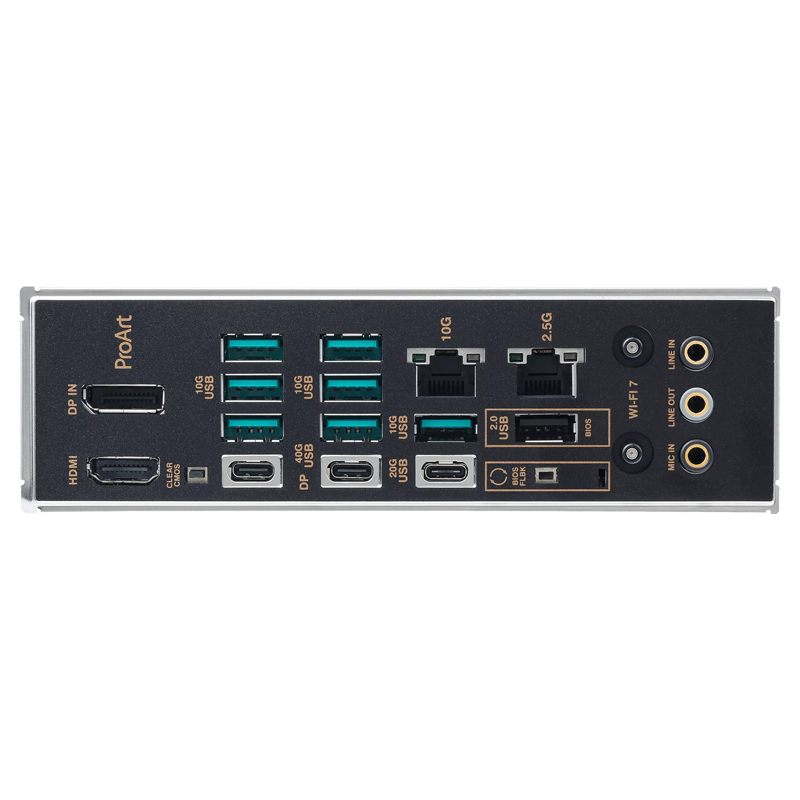

| Ports | 2x USB4 Type-C, 1x USB 20Gbps Type-C, 7x USB 10Gbps Type-A, 1x USB 2.0 Type-A, 1x DisplayPort (Input Only), 1x HDMI, 1x Wi-Fi Module, 2x Ethernet, 3x Audio Jacks, 1x BIOS FlashBack Button, 1x Clear CMOS Button |
| Internal I/O Connectors | |

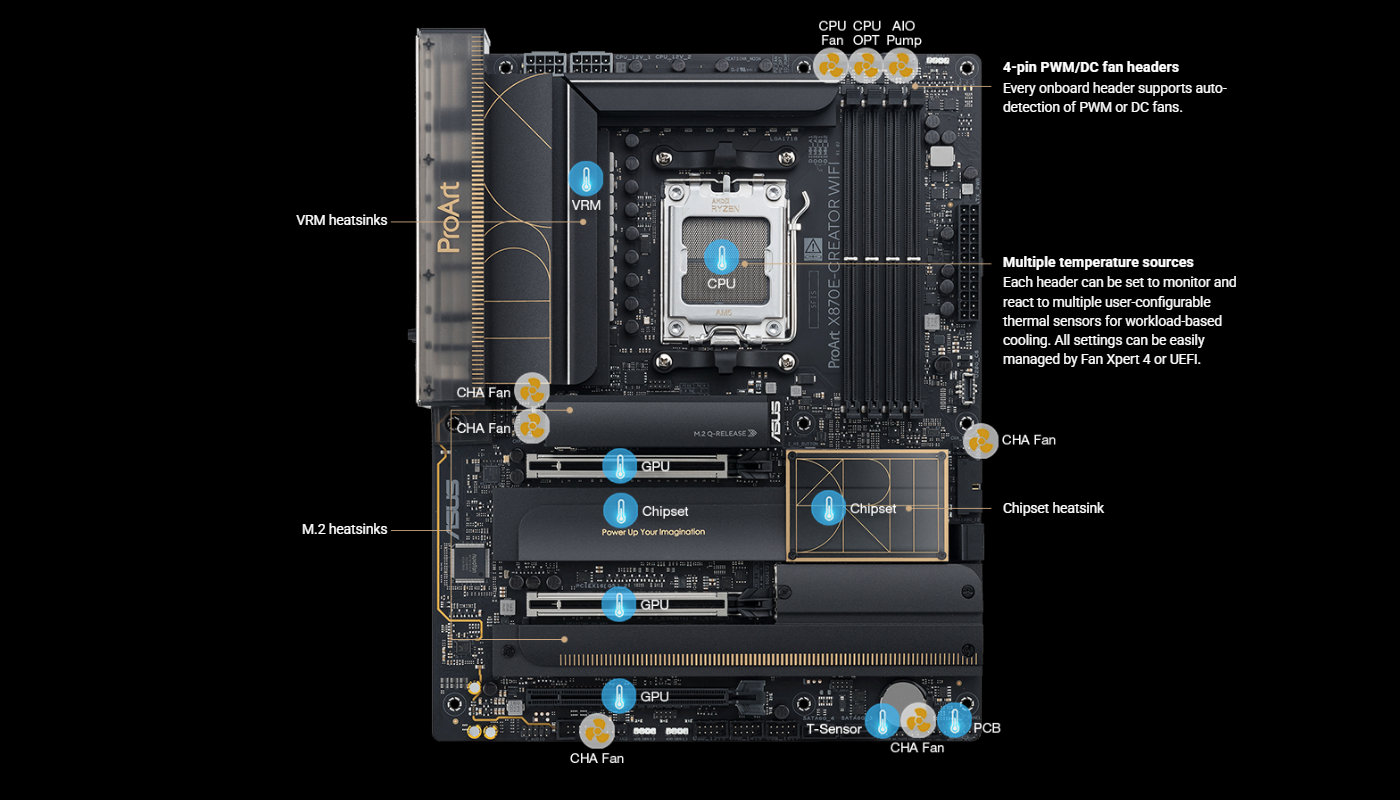

| Fan & Cooling Headers | 1x CPU Fan, 1x CPU OPT Fan, 1x AIO Pump, 5x Chassis Fan |
| Power Connectors | 1x 24-Pin Main Power, 2x 8-Pin +12V CPU Power |
| Miscellaneous | 3x Addressable Gen 2 Headers, 1x Chassis Intrusion, 1x COM Port, 1x CPU Over Voltage Jumper, 1x Front Audio, 1x System Panel, 1x Thermal Sensor |
| Special Features | |
| ASUS 5X PROTECTION III | DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O |

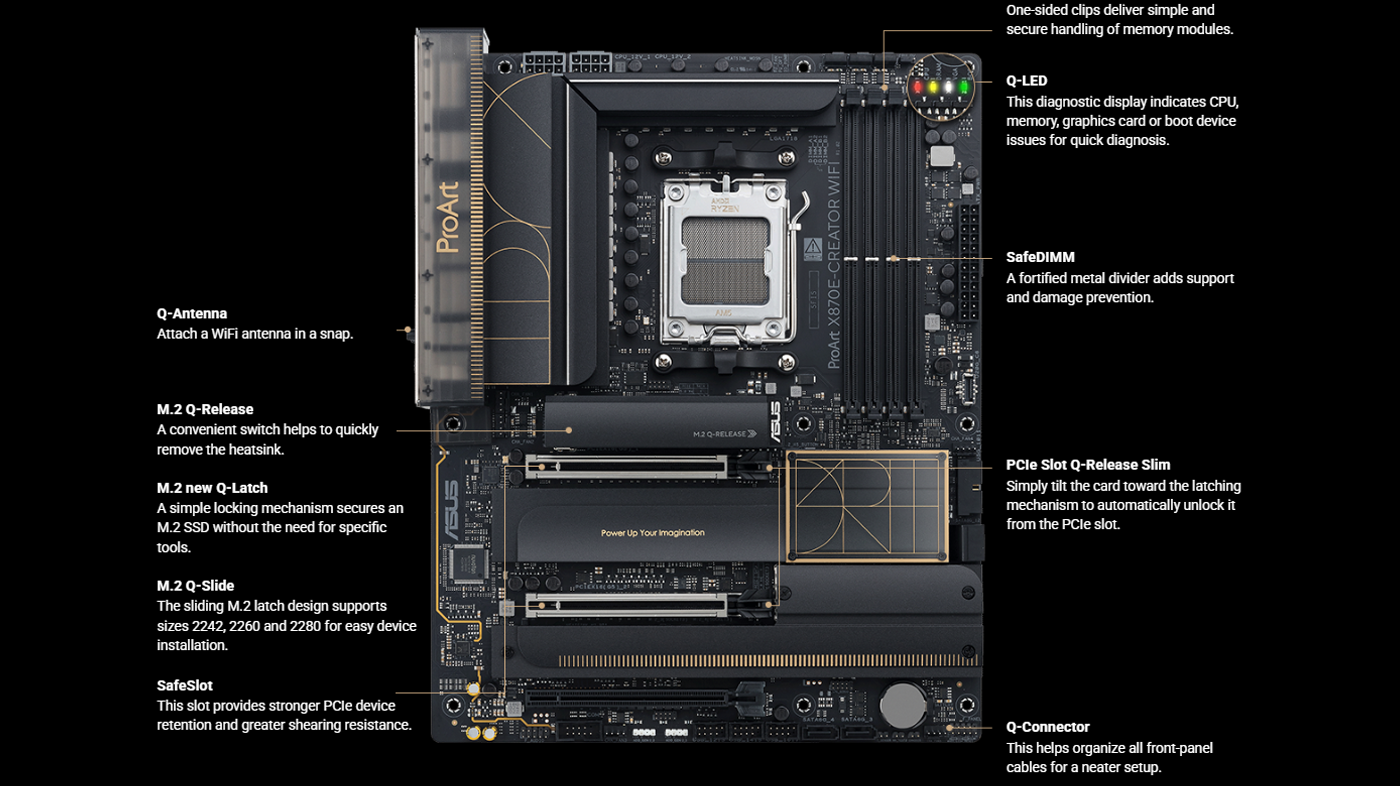

| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim, Q-Antenna, Q-Connector, Q-DIMM, Q-LED, Q-Slot |
| ASUS Thermal Solution | M.2 Heatsink Backplate, M.2 Heatsinks, VRM Heatsink Design |
| Front Panel USB 20Gbps | Quick Charge 4+ Support, Up to 30W Fast Charging, USB Wattage Watcher, Compatible with PD3.0 |

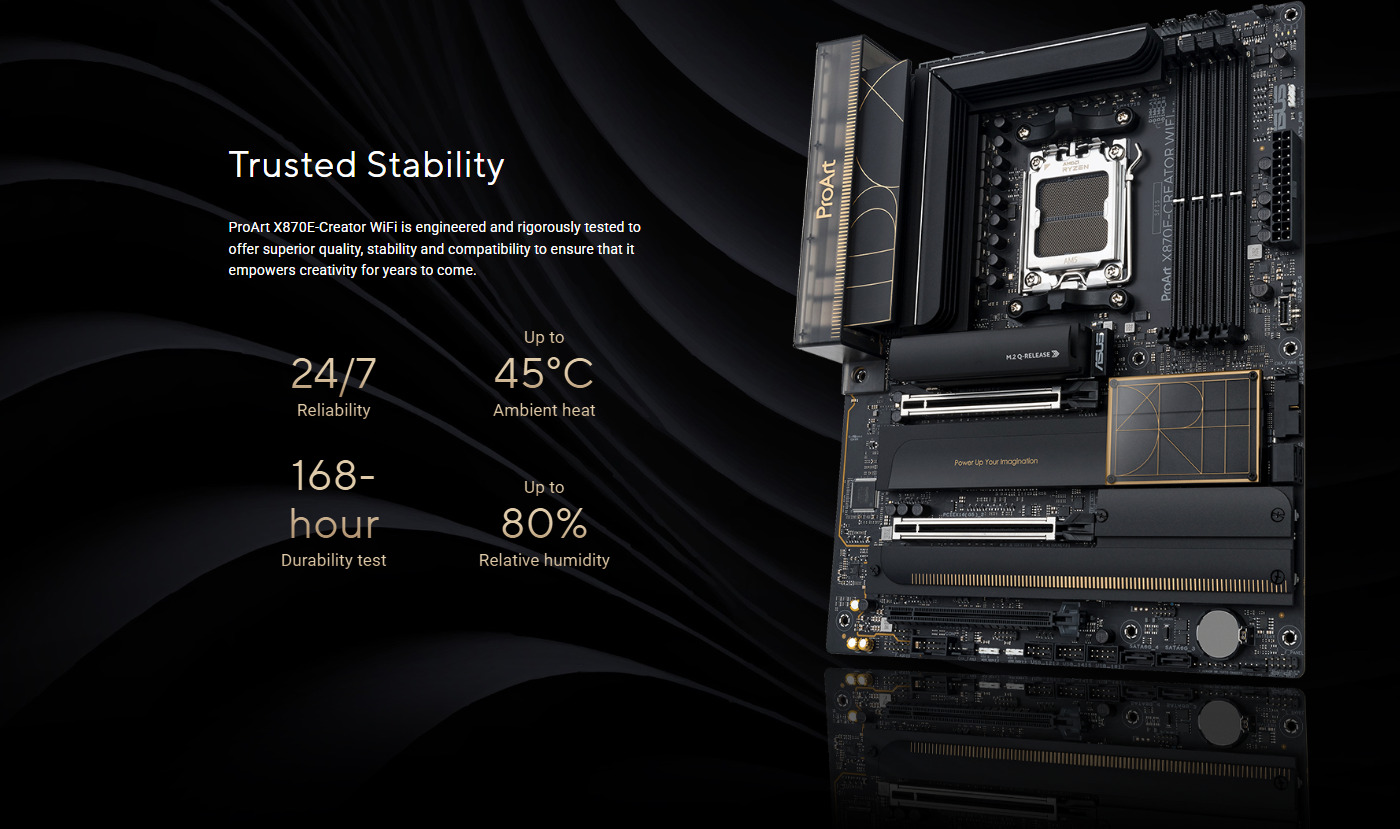

| Bespoke Design & Business Features | 24/7 Reliability, Overcurrent Protection |
| Software Features | |
| ASUS Exclusive Software | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving), ASUS DriverHub, ASUS GlideX, USB Wattage Watcher, TurboV Core, ASUS CPU-Z, ProArt Creator Hub, CreationFirst |
| Trial Software | Adobe Creative Cloud (Free Trial), Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial) |
| UEFI BIOS Features | ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, FlexKey |
| Remote Management | ASUS Control Center Express (ACCE) |
| Accessories | |

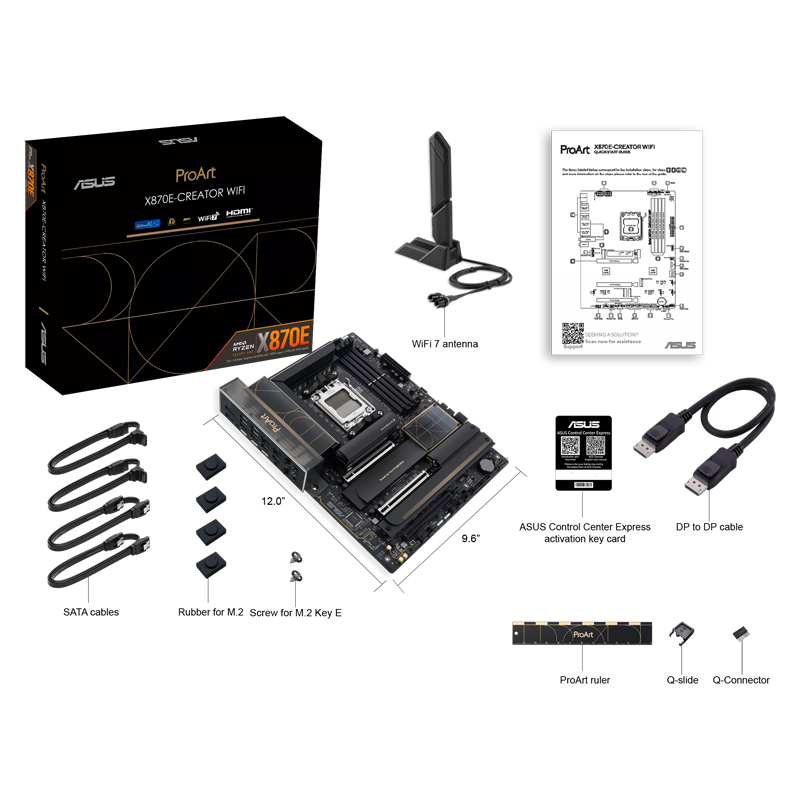

| Included Accessories | 1x DisplayPort Cable, 4x SATA 6Gb/s Cables, 1x Thermal Pad for M.2 22110, 1x ASUS WiFi Q-Antenna, 1x Q-Connector, 1x M.2 Q-Latch Package, 1x M.2 Q-Latch Q-Slide Package, 2x Rubber Packages for M.2, 1x ProArt Ruler, 1x Quick Start Guide, 1x ACC Express Activation Key Card |
| Warranty | |
| Warranty | 3 Years Manufacturer Warranty |
Brand
Asus
ProArt
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
At Amir Traders, we aim to provide a smooth and hassle-free shopping experience to our valued customers. We offer fast, secure, and nationwide delivery services across Pakistan.
All orders are typically processed and dispatched within 1 to 2 working days after confirmation. Once shipped, delivery timelines vary depending on your location, usually taking between 2 to 5 business days. For customers in major cities, delivery is often quicker.
We currently offer Cash on Delivery (COD) for your convenience, allowing you to pay when the product arrives at your doorstep. Our packaging is done with care to ensure your products reach you safely and in perfect condition.
If you have any questions regarding your delivery or would like to track your order, feel free to contact our support team anytime.
Related products
Gigabyte A520M K V2 AMD AM4 Micro-ATX Motherboard
Supports AMD Ryzen 5000/4000/3000 Series: The AM4 socket offers compatibility with a wide range of powerful AMD processors, making it ideal for upgrading or building a new system .
Dual-Channel DDR4 Memory: Two DIMM slots support up to 64GB of RAM with overclocked speeds up to 5100MHz, ensuring smooth multitasking and gaming performance .
Fast M.2 PCIe 3.0 Storage: Equipped with one M.2 connector for ultra-fast NVMe or SATA SSDs, alongside 4 SATA 6Gb/s ports for additional storage drives .
Smart Fan 5 with FAN STOP: Advanced cooling features include multiple temperature sensors and hybrid fan headers that can stop fans completely under light loads for silent operation .
Gigabit Ethernet & Essential Connectivity: Features a stable Gigabit LAN port, HDMI 2.1 and D-Sub video outputs, plus multiple USB 3.2 Gen 1 and USB 2.0 ports for all your peripherals
Gigabyte B450M DS3H V3 AM4 Micro-ATX Motherboard
Compatible with a wide range of AMD Ryzen™ processors including Ryzen™ 5000 Series and Athlon™ with Radeon™ Vega Graphics
Supports dual-channel DDR4 memory with 4 DIMM slots and ultra-fast PCIe Gen3 x4 M.2 for NVMe & SATA
Features high-quality audio capacitors, RGB FUSION 2.0 lighting, and Realtek® Gigabit LAN with cFosSpeed
Includes Smart Fan 6, EasyTune™, Cloud Station™, and CEC 2019 power-saving support

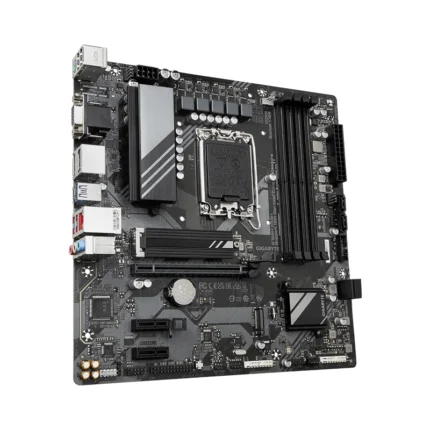

Gigabyte B760M DS3H AX DDR5 Intel Motherboard
