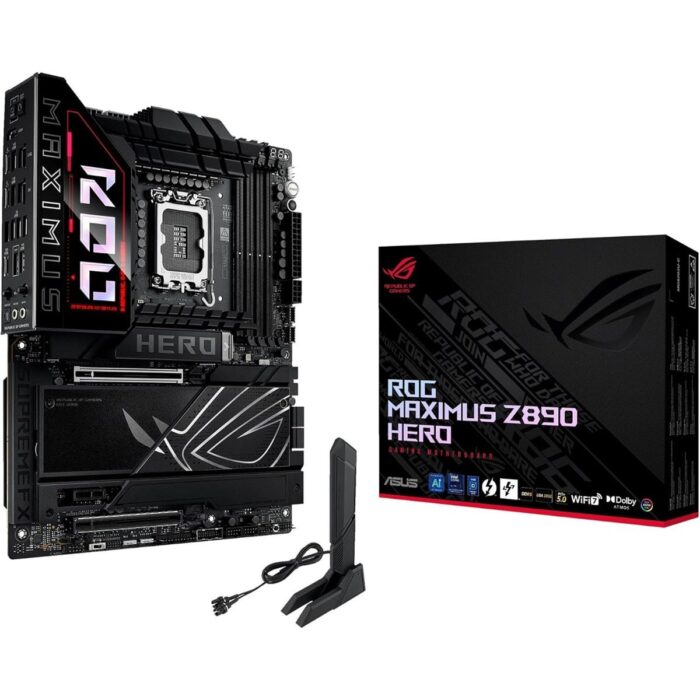

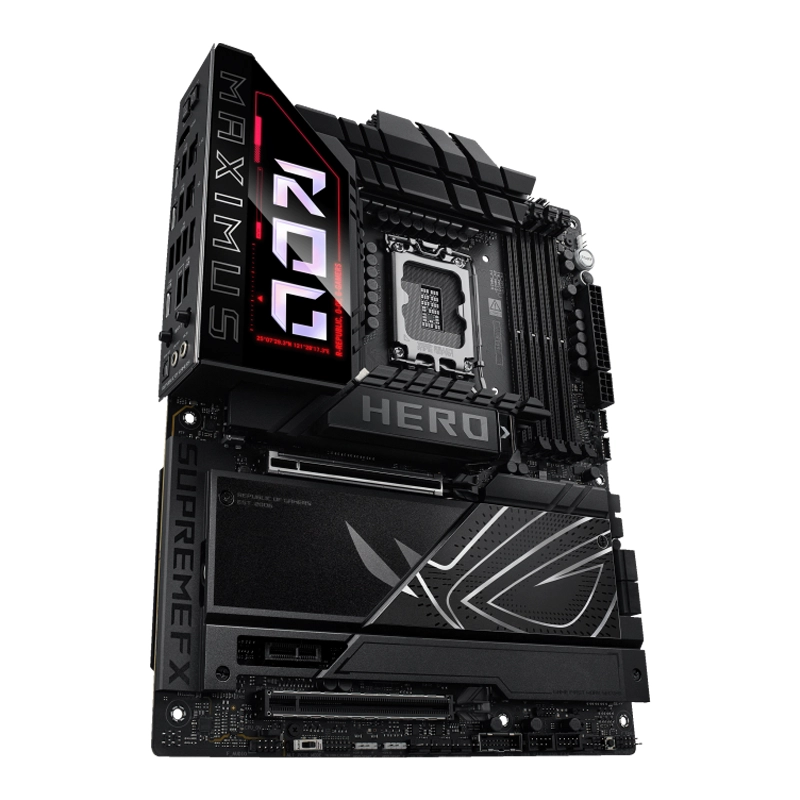

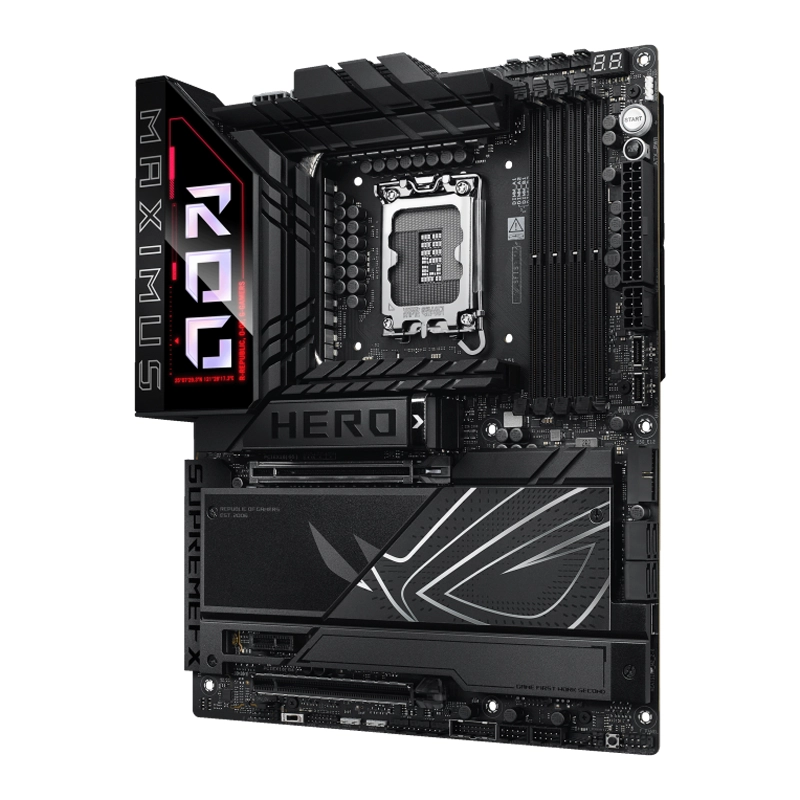

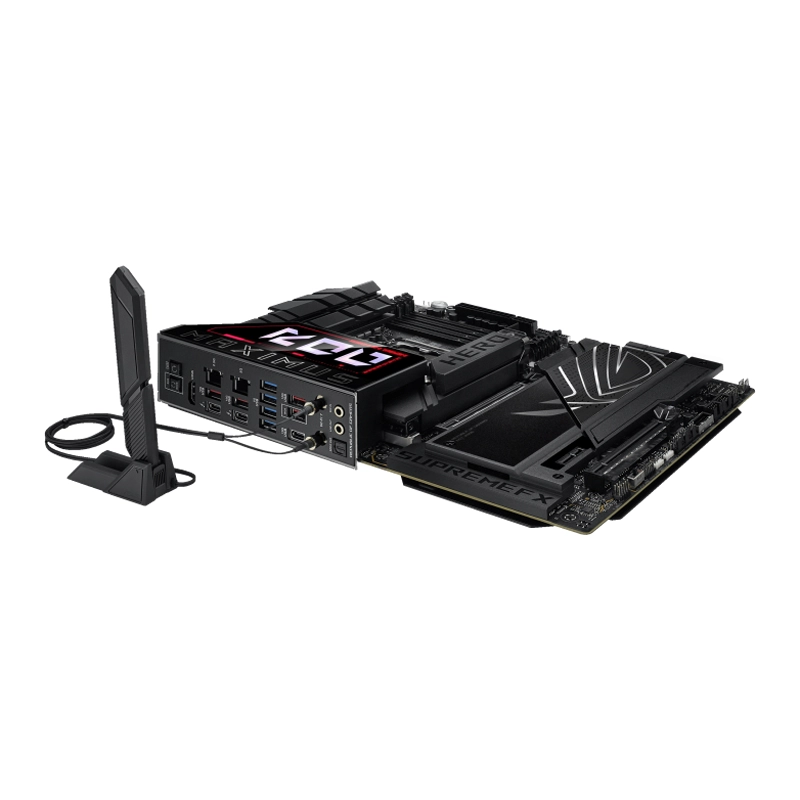

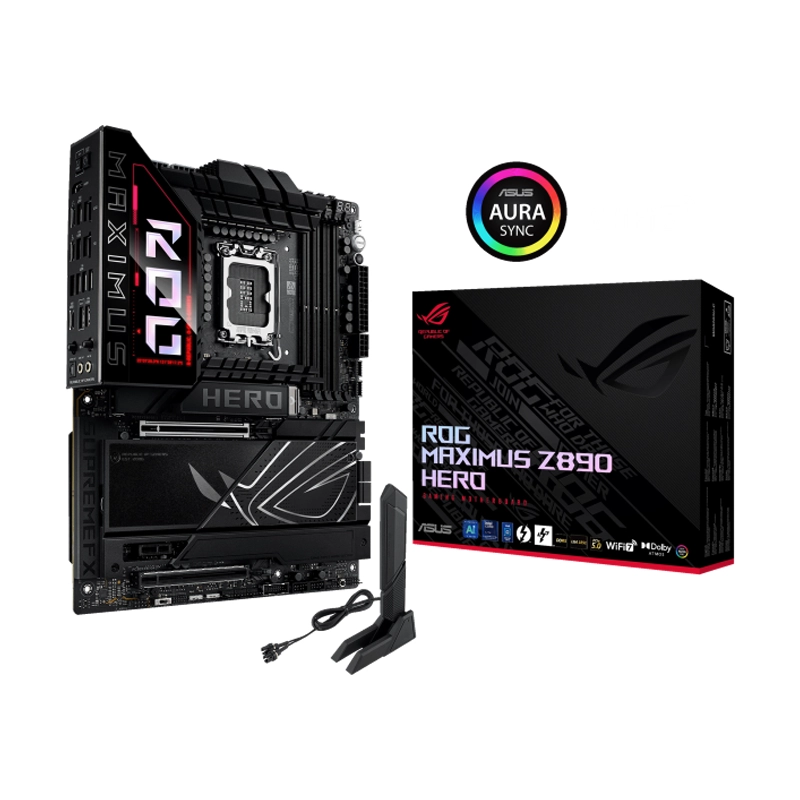

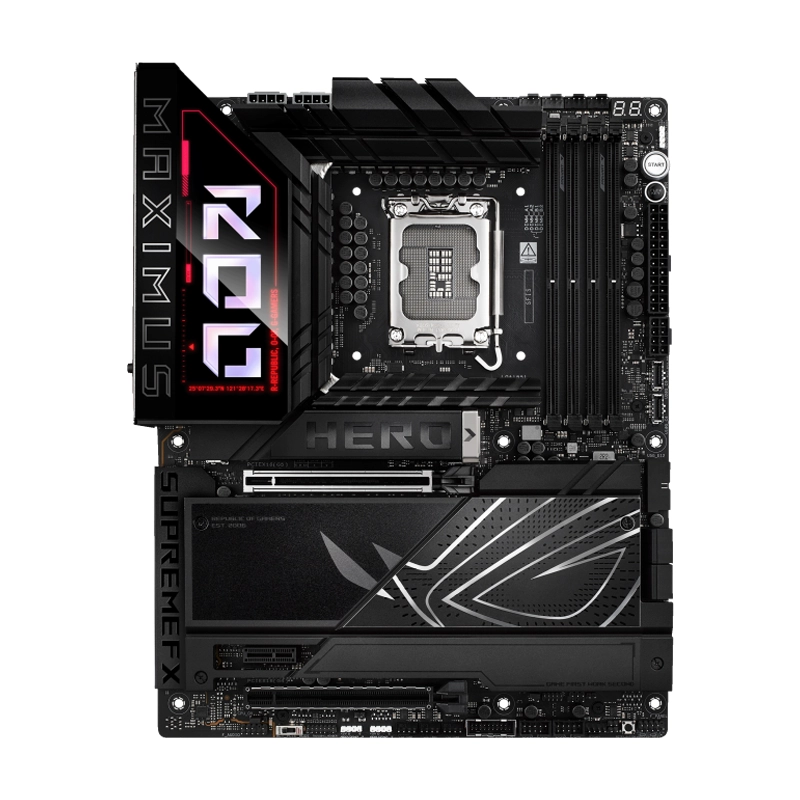

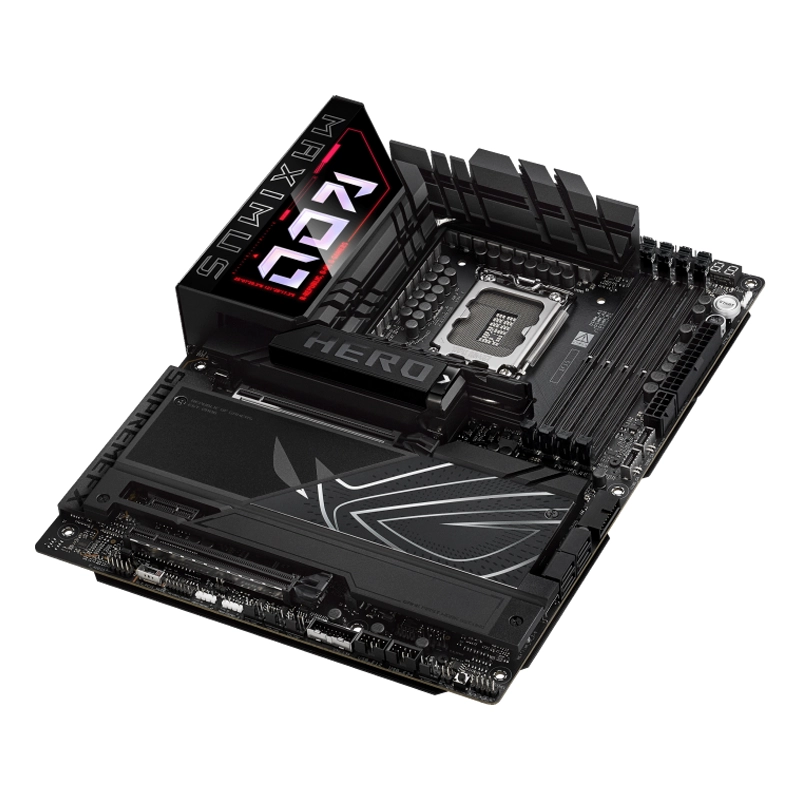

ASUS ROG MAXIMUS Z890 HERO Intel Motherboard
₨ 244,999
- Ultimate ROG MAXIMUS Z890 ATX motherboard with dual Thunderbolt™ 4, supporting Intel Core Ultra Processors (Series 2) on LGA1851 with DDR5 up to 256GB at 9200+ MT/s and NitroPath DRAM Technology
- Six M.2 slots including three PCIe 5.0 x4, SlimSAS connector, dual Ethernet (5Gb + 2.5Gb Intel), and PCIe bifurcation support for x8/x4/x4 GPU configurations
- WiFi 7 with 320MHz bandwidth up to 5.8Gbps, Bluetooth 5.4, front USB 20Gbps Type-C® with 60W PD/QC4+ fast charging, and Polymo Lighting II
- ROG SupremeFX ALC4082 with ESS® ES9219 QUAD DAC, gold-plated audio jacks, Extreme OC Kit, and 10K black metallic capacitors
Available on backorder
| Overview | |
| Brand | ASUS ROG |
| Series | ROG MAXIMUS Z890 HERO |
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory | |
| Memory Slots | 4 x DIMM |
| Max Memory | 256 GB |
| Memory Speed | DDR5 up to 9200+ MT/s (OC), CUDIMM Support |
| Memory Architecture | Dual Channel |
| Memory Technology | Intel XMP, ASUS AEMPIII, NitroPath DRAM, DIMM Flex, DIMM FIT |
| Expansion & Storage | |
| PCIe Slots | 1 x PCIe 5.0 x16 (x16 or x8/x4/x4), 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x1 |
| M.2 Slots | 3 x PCIe 5.0 x4 (CPU), 2 x PCIe 4.0 x4 (Z890), 1 x PCIe 4.0 x4 (CPU) |
| SlimSAS Connector | 1 x SlimSAS (PCIe 4.0 x4 or 4x SATA via adapter) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10) |
| RAID Support | PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Graphics & Audio | |
| Display Outputs | 1 x HDMI 2.1 (8K@60Hz DSC), 2 x Thunderbolt 4 DP Alt (8K@60Hz DSC) |
| Audio | ROG SupremeFX ALC4082 7.1 HD Audio, 120dB SNR, ESS ES9219 QUAD DAC |
| Audio Format | Up to 32-Bit/384 kHz Playback (Front Panel) |
| Audio Jacks | Gold-Plated Audio Jacks |
| Audio Software | Dolby Atmos |
| Networking | |
| Ethernet 1 | 1 x Realtek 5Gb Ethernet |
| Ethernet 2 | 1 x Intel 2.5Gb Ethernet with ASUS LANGuard |
| Wireless | Wi-Fi 7 (802.11be) 2×2, 320MHz, up to 5.8Gbps |
| Bluetooth | Bluetooth 5.4 |

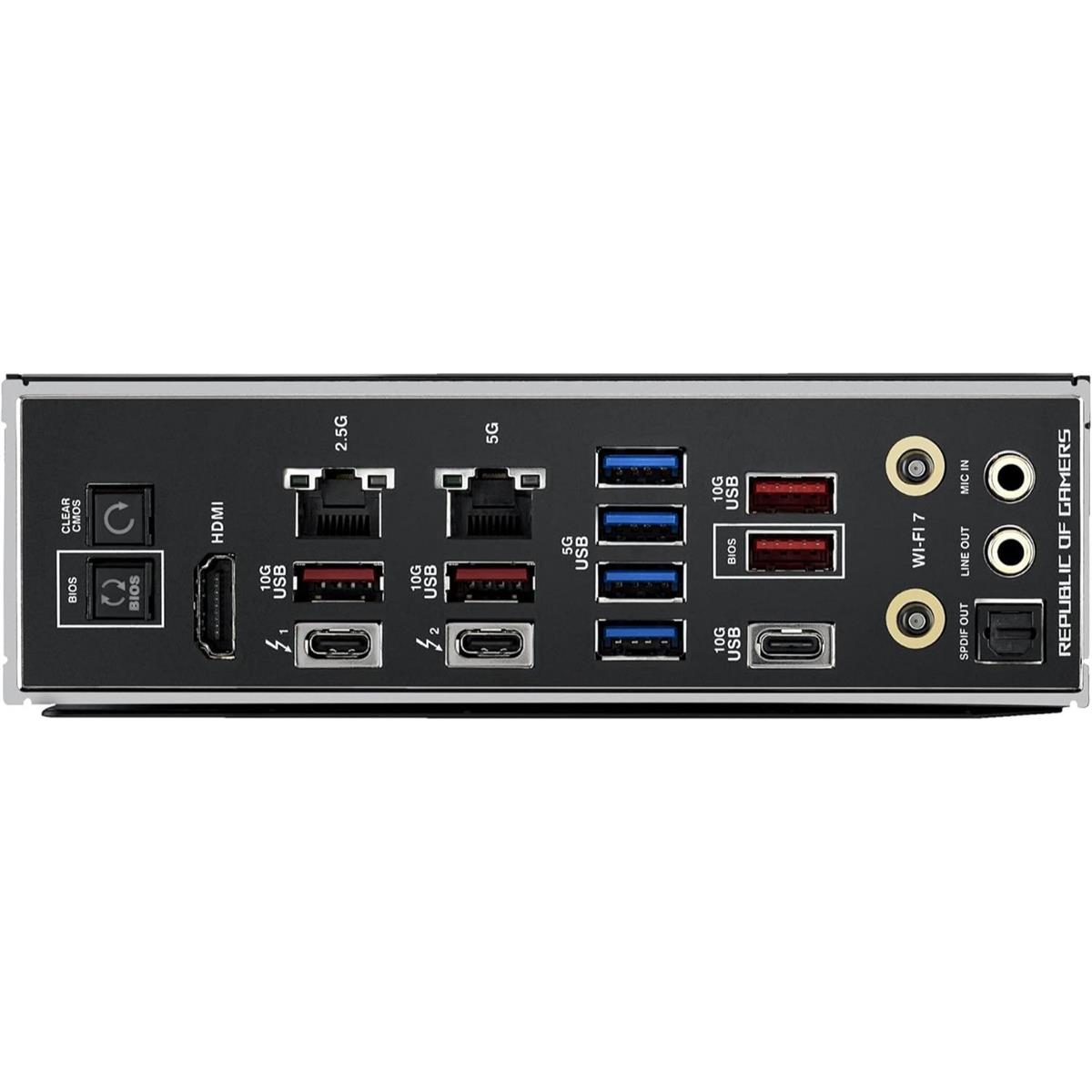

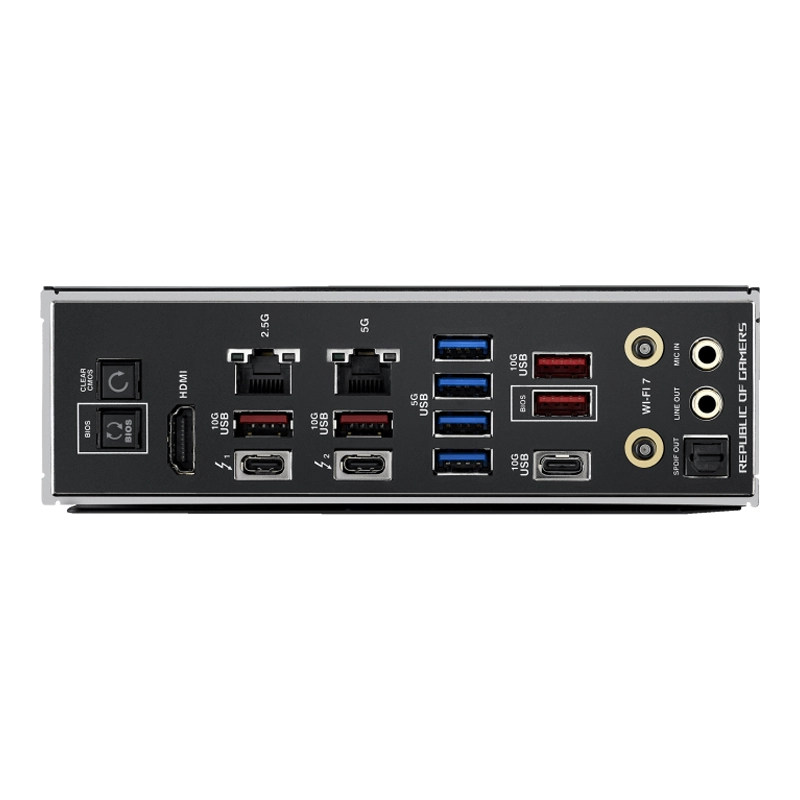

| Rear I/O | |
| USB Ports | 2 x Thunderbolt 4 Type-C, 5 x USB 10Gbps (4A + 1C), 4 x USB 5Gbps Type-A |
| Audio Ports | 2 x Gold-Plated Audio Jacks, 1 x Optical S/PDIF Out |
| Buttons | BIOS FlashBack™, Clear CMOS |
| Internal I/O | |
| Fan Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan, 1 x W_PUMP+ |
| Power Connectors | 1 x 24-pin Main, 2 x 8-pin +12V CPU (ProCool II), 1 x 8-pin PCIe (for 60W PD) |
| Front USB | 1 x USB 20Gbps Type-C® (60W PD/QC4+), 1 x USB 10Gbps Type-C®, 4 x USB 5Gbps, 4 x USB 2.0 |
| RGB Headers | 3 x Addressable Gen 2 |
| Special Headers | 1 x Thunderbolt™ (USB4®), 1 x Thermal Sensor, 1 x Alteration PCIe Mode Switch |
| Onboard Buttons | Start, FlexKey, ReTry |
| Features | |
| Engine | Extreme Engine Digi+ with 10K Black Metallic Capacitors, MicroFine Alloy Chokes |
| Extreme OC Kit | FlexKey, ReTry Button, Start Button |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim, Q-Antenna, Q-Code, Q-Connector, Q-Dashboard, Q-LED (4-color), Q-Slot |

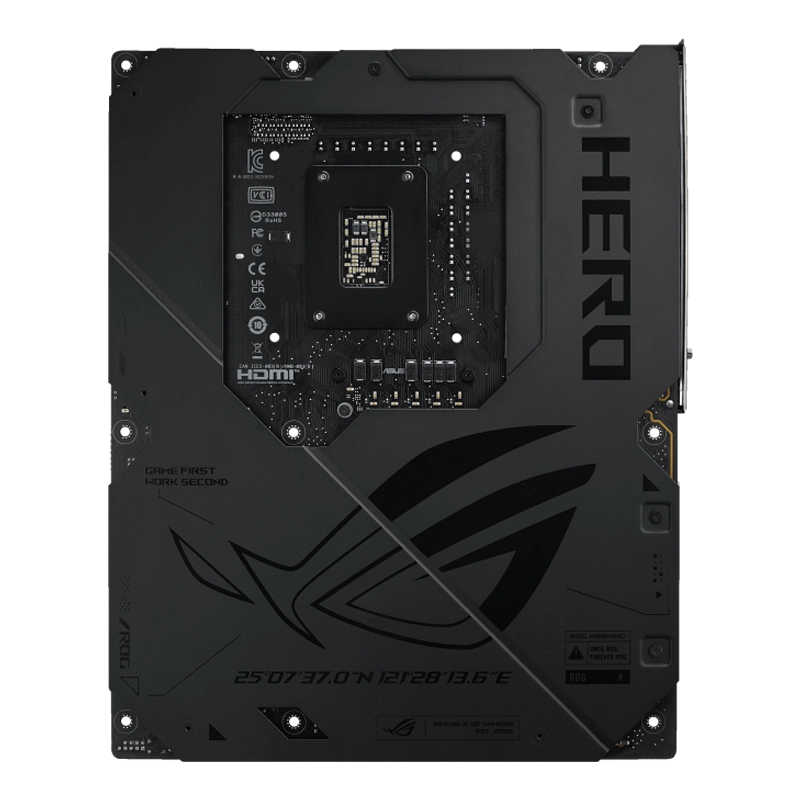

| Thermal Solution | M.2 Heatsink Backplate, M.2 Heatsinks, Metal Backplate, VRM Heatsinks, ProCool II |
| EZ DIY | BIOS FlashBack™, Clear CMOS, CPU Socket Lever Protector, Pre-Mounted I/O Shield, SafeSlot, SafeDIMM, Q-Connector |
| AI Features | AI Overclocking Guide, AI Cooling II, NPU Boost, ASUS AI Advisor |
| Lighting Control | Polymo Lighting II, Aura Sync (3 x Addressable Gen 2), Aura Creator |
| ROG M.2 PowerBoost | Dedicated power delivery for M.2 slots |
| Software Suite | Armoury Crate, Fan Xpert 4, GameFirst, TurboV Core, AIDA64 Extreme (1yr), HWiNFO, Thunderbolt™ Share |
| BIOS | 256Mb UEFI AMI BIOS |
| Operating System | Windows 11 (22H2+) |

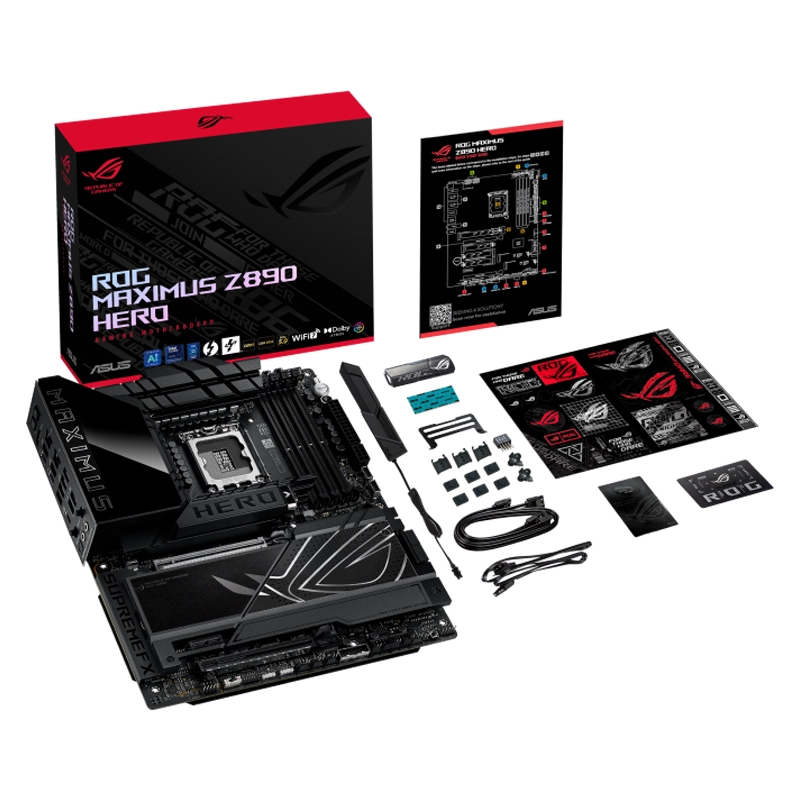

| Included Accessories | |

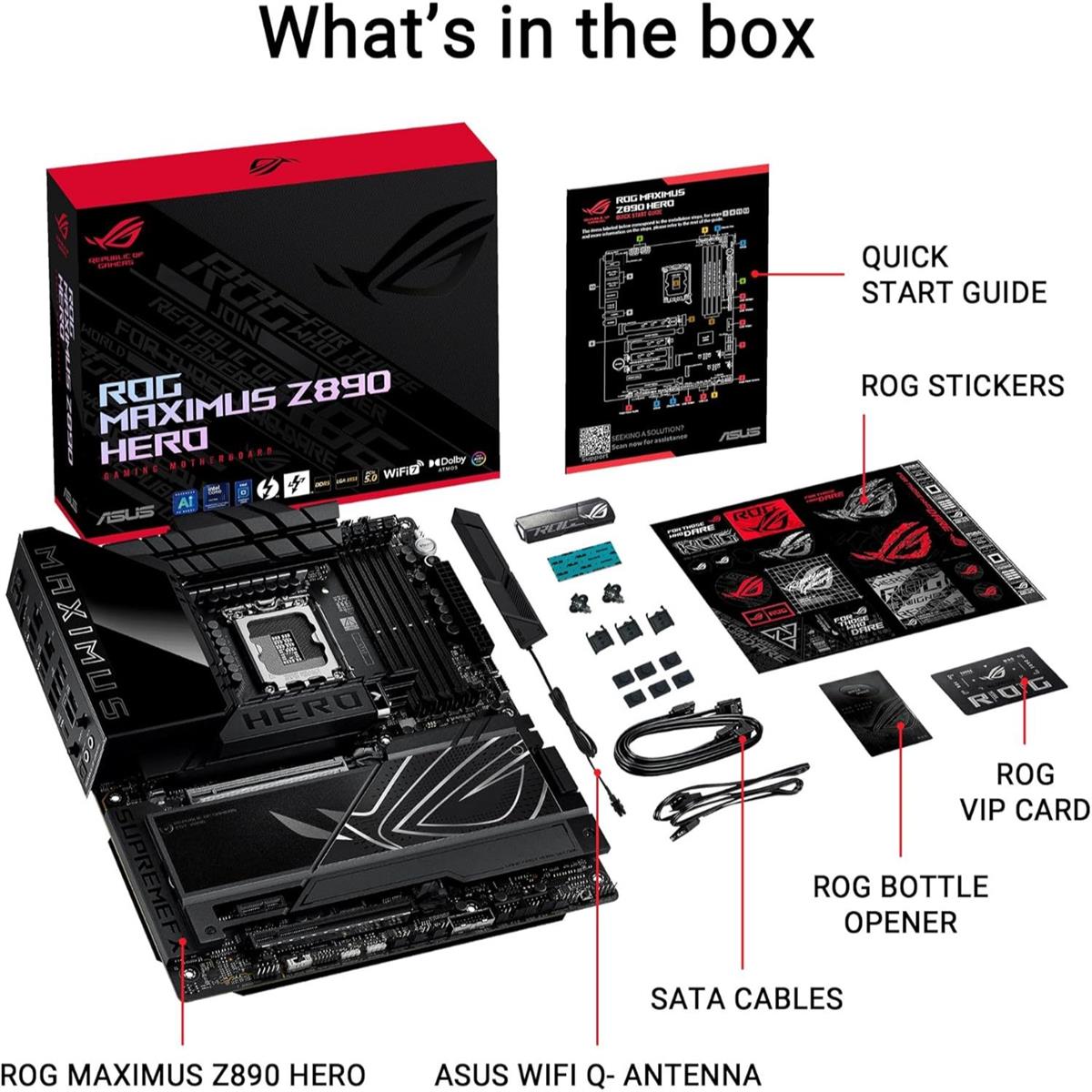

| In the Box | 4 x SATA 6Gb/s Cables, 1 x ARGB Extension Cable, 1 x DDR5 Fan Holder, 1 x Thermal Pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Q-Connector, 1 x M.2 Q-Latch, 3 x M.2 Q-Slide, 1 x ROG Stickers, 6 x M.2 Rubbers, 1 x ROG Thank You Card, 1 x ROG Bottle Opener, 1 x USB Drive with Utilities and Drivers, Quick Start Guide |
| Brand | Asus |
|---|
